Tjernlund SS1C SideShot (Discontinued Version - Pre UC1 Universal Control) 8504040 Rev 4 05/95 User Manual
Page 2
1
TABLE OF CONTENTS
Page (s)
Description and Specifications ....................................................................................................................................1, 2
Installation Restrictions .................................................................................................................................................2
Cautions .....................................................................................................................................................................2, 3
Safety Inspection of a Previously Used Appliance .........................................................................................................3
SideShot Terminology ....................................................................................................................................................3
Termination Clearances .................................................................................................................................................4
Installation
Tools Required .................................................................................................................................................5
Vent Hood Installation ..................................................................................................................................5, 6
Installation of Rain Shield .................................................................................................................................6
Plenum Installation ...................................................................................................................................6, 7, 8
Installation of Vent Pipe ................................................................................................................................8, 9
Electrical Wiring
Wiring to Oil Fired Appliance ................................................................................................................9, 10, 11
Alternative Wiring Diagrams .....................................................................................................................11, 12
Draft Adjustment .....................................................................................................................................................13, 14
Combustion Air .............................................................................................................................................................14
System Check Out ........................................................................................................................................................14
Troubleshooting Oil Odors.............................................................................................................................................15
Troubleshooting Electrical Problems .......................................................................................................................16, 17
Maintenance ..................................................................................................................................................................18
Removal & Replacement of Motor/Wheel ......................................................................................................18
Warranty ........................................................................................................................................................................19
Mounting Templates
Template B Motor Notch ................................................................................................................................20
Template A Vent Hood Terminus ...................................................................................................................21
SideShot
®
is a registered trademark of Tjernlund Products, Inc. for their Model SS1C Vent System.
DESCRIPTION
The SideShot is a mechanical vent system designed and listed for use with natural draft oil heating equipment. It is factory
assembled and wired. The SideShot automatically vents the flue gases from heating equipment to the outdoors. By combining
outside air with high-tech insulation, surrounding combustible materials and the Vent Hood exterior remain at safe temperatures.
After each burner cycle the SideShot will continue to operate for an adjustable time period to purge the heater and vent of residual
flue gases. The SideShot features a two way safety system consisting of a Fan Proving Switch and a high limit temperature con-
trol. These devices monitor the SideShot's performance and will interrupt the main burner if a venting malfunction is detected.

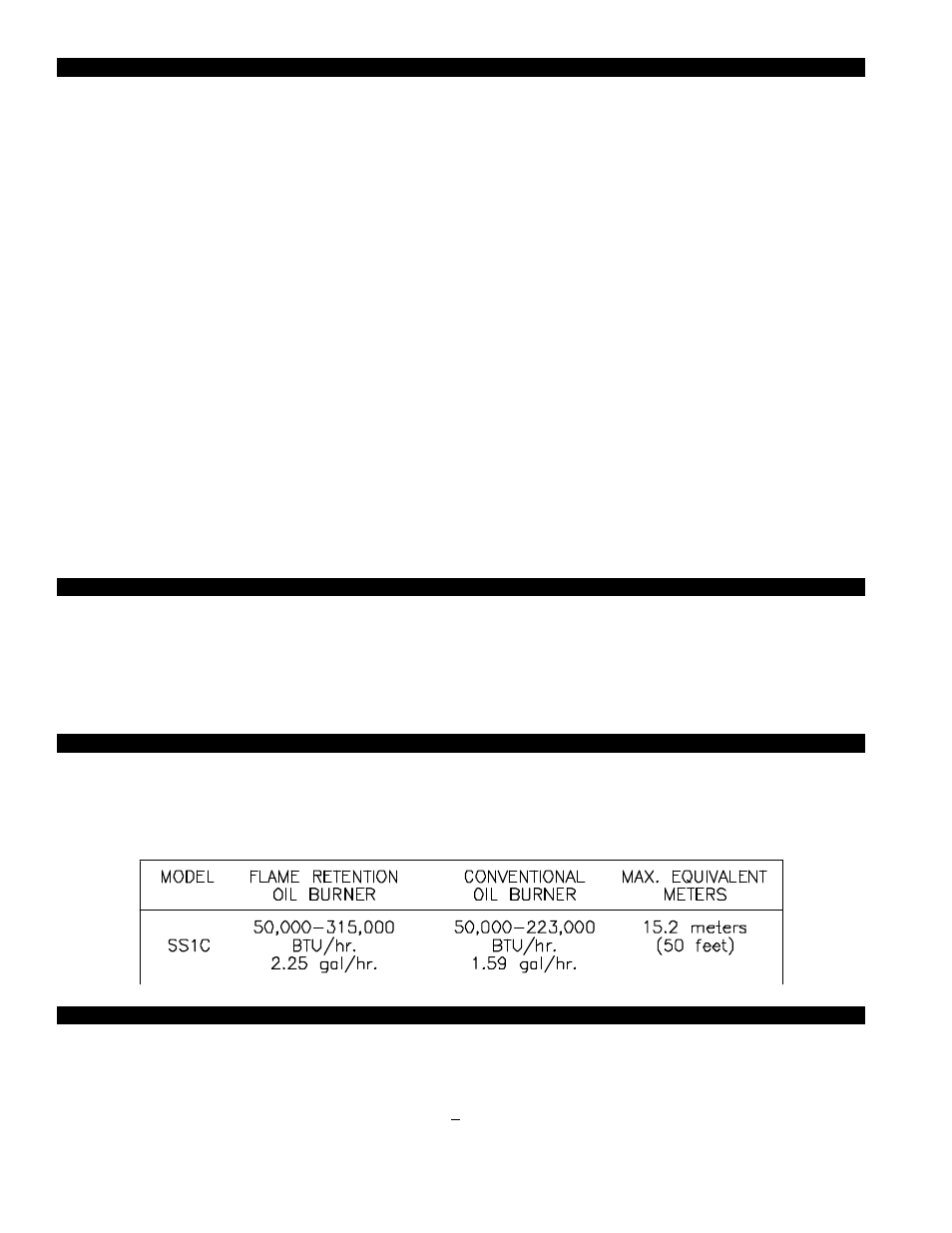

APPLICATION TABLE
Verify that the total BTU/hr. input of the heating appliance(s) fall within the proper category listed below. All BTU/hr. capacity
ranges are based on a maximum of 15.2 equivalent meters (50 feet). To determine equivalent meters, add the total length of
straight vent pipe plus 3.1 meters (10 feet) for each 90 degree elbow and 1.5 meters (5 feet) for each 45 degree elbow. Vent
runs of over 4.5 linear meters (15 linear feet) should use an approved, insulated vent connector to prevent problems related to sul-
fur condensation.
SPECIFICATIONS
Motor: 115/1/60, 3300 RPM, 212 watts, 2.28 FLA
Fan Proving Switch: Non-adjustable set point of -.04" W.C., N/O Contacts rated for an inductive load of 6.2 FLA at 120 VAC.
High Limit: Manual reset N/C contacts, open at 79oC (175oF) + 8oC (15oF), Contacts rated at 10 FLA at 120 VAC.
Post-Purge Timer: Adjustable from 1 to 10 minutes. Dual voltage, non-polarity sensitive input (24-120 VAC).
