1

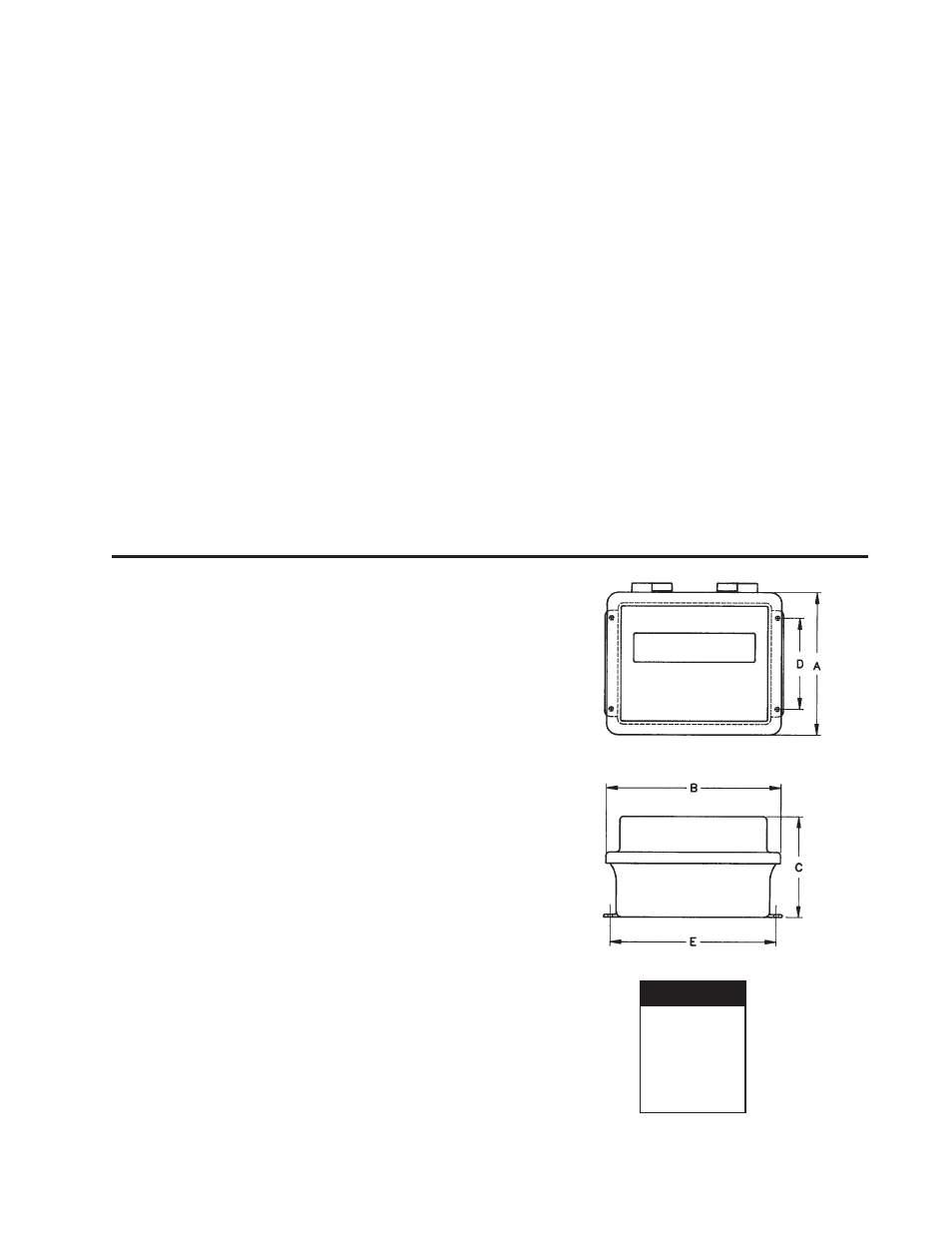

A = 9.38"
B = 11.38"
C = 6.63"
D = 6.00"
E = 10.81"
Dimensions
DISPLAY:
6 1.5" active, high visibility fluorescent yellow digits
ENCLOSURE:
NEMA 4X Fiberglass Reinforced Polyester
INPUT INTERFACE:
20 mA current loop (active/passive), RS-232C,
standard ASCII serial characters
BAUD RATE:
Dip switch selectable 1200 and 2400
CHARACTER FORMAT:
Dip switch selectable character format,
7 or 8 data bits, odd or even parity, 1 or 2 stop bits
UPDATE:
Continuous update
POWER CONSUMPTION:
24 watts, typical
SHIPPING WEIGHT:
Approx. 13 lbs
1. Specifications
Contents
1. Specifications .................................................................................................... 1
2. Serial Communication Connections ................................................................... 2
3. Configuration of Dip Switches ........................................................................... 4
4. Troubleshooting Guide ....................................................................................... 5
5. Remote Display/Indicator Programs .................................................................. 6
6. Replacement Parts ............................................................................................. 7
7. 234HE Limited Warranty .................................................................................... 8
