Cabling – Rice Lake MSI-9850 CellScale RF Digital Indicator - Ethernet Option Supplement User Manual
Page 6

MEASUREMENT SYSTEMS INTERNATIONAL
Cabling
MSI provides a field installable mating connector (MSI
#13587) that allows customers to interface with their own
Ethernet cabling. The connector accepts cables up to 8mm.

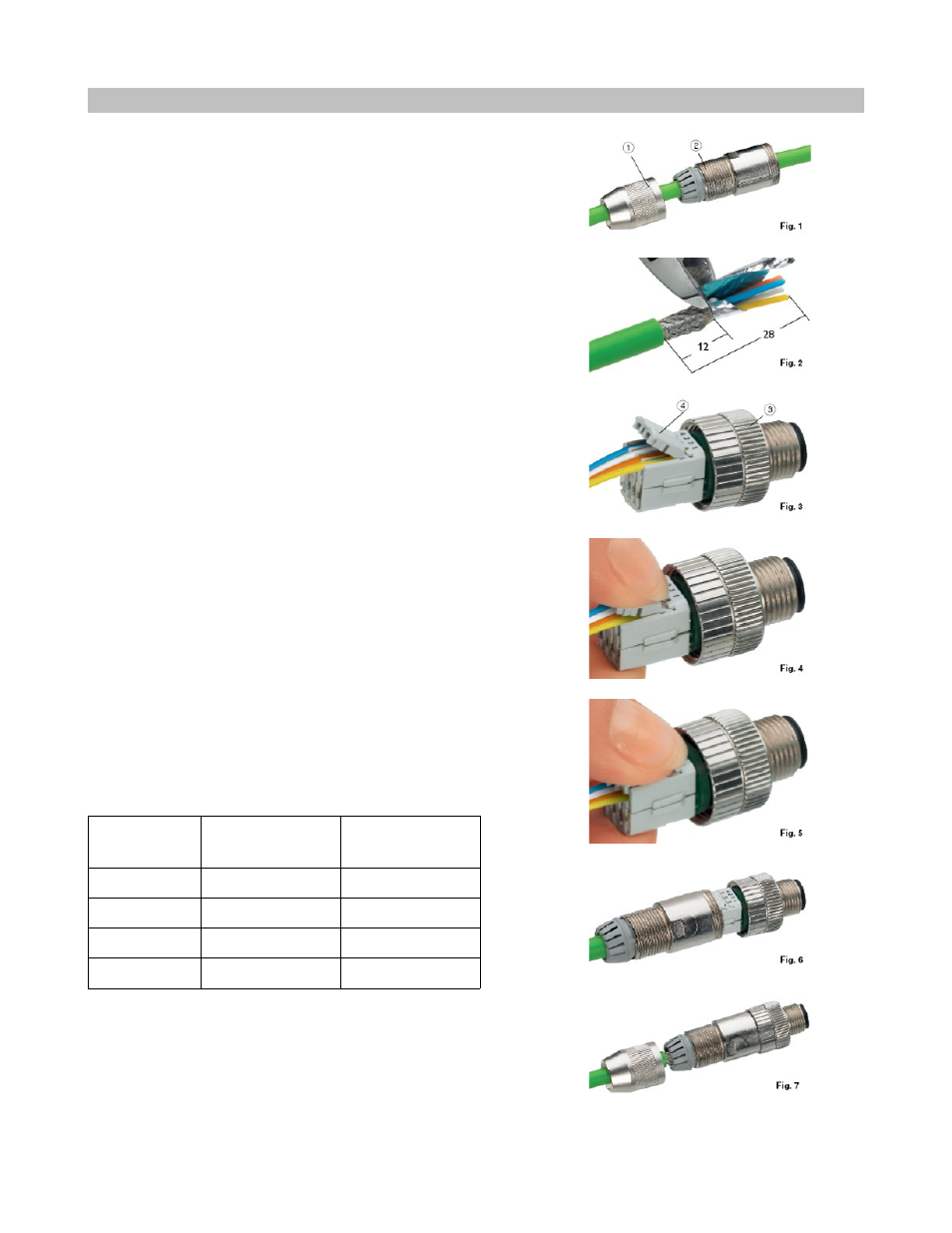

Cable Assembly
1. First slide the pressure nut 1 and the housing 2 over
the cable (Fig.1).
2. Strip the cable sheath over a length of approx.
28mm. Trim the braided shield to a length of
approx. 12mm (Fig. 2).
3. See table 1 for the core assignment.
4. Guide the individual cores fully into the marked
chambers. Pay attention to use the correct
chambers and only
5. one core per chamber (Fig. 3).
6. Contact the cores by pressing the termination blocks
4 together according to Fig. 4 and Fig. 5. The
termination blocks engage at the end stop.
7. Pull the housing 2 out as far as the plug insert 3 and
hold it tight while you screw the plug insert onto it
(Fig. 6).
8. Push the pressure nut 1 on the housing. Tighten the
pressure nut firmly (Fig. 7).
Pin
TIA 568 B
Color
Function
1
White/Orange
TD+
2
Orange
TD-
3
White/Green
RD+
4
Green
RD-
Page 6 of 20
