EXPLORER BALANCES EN-45
4.6 Filling
This application allows the user to slowly fill a container to a pre-determined target weight. The progress bar
displays the filling status, and within 10 percent of the target value the progress bar converts to fine resolution
(+/– 10%) for accurate results.
In the upper left portion of the home screen, select Filling.
The default (or last) Target weight is displayed. Place objects on the pan to begin.

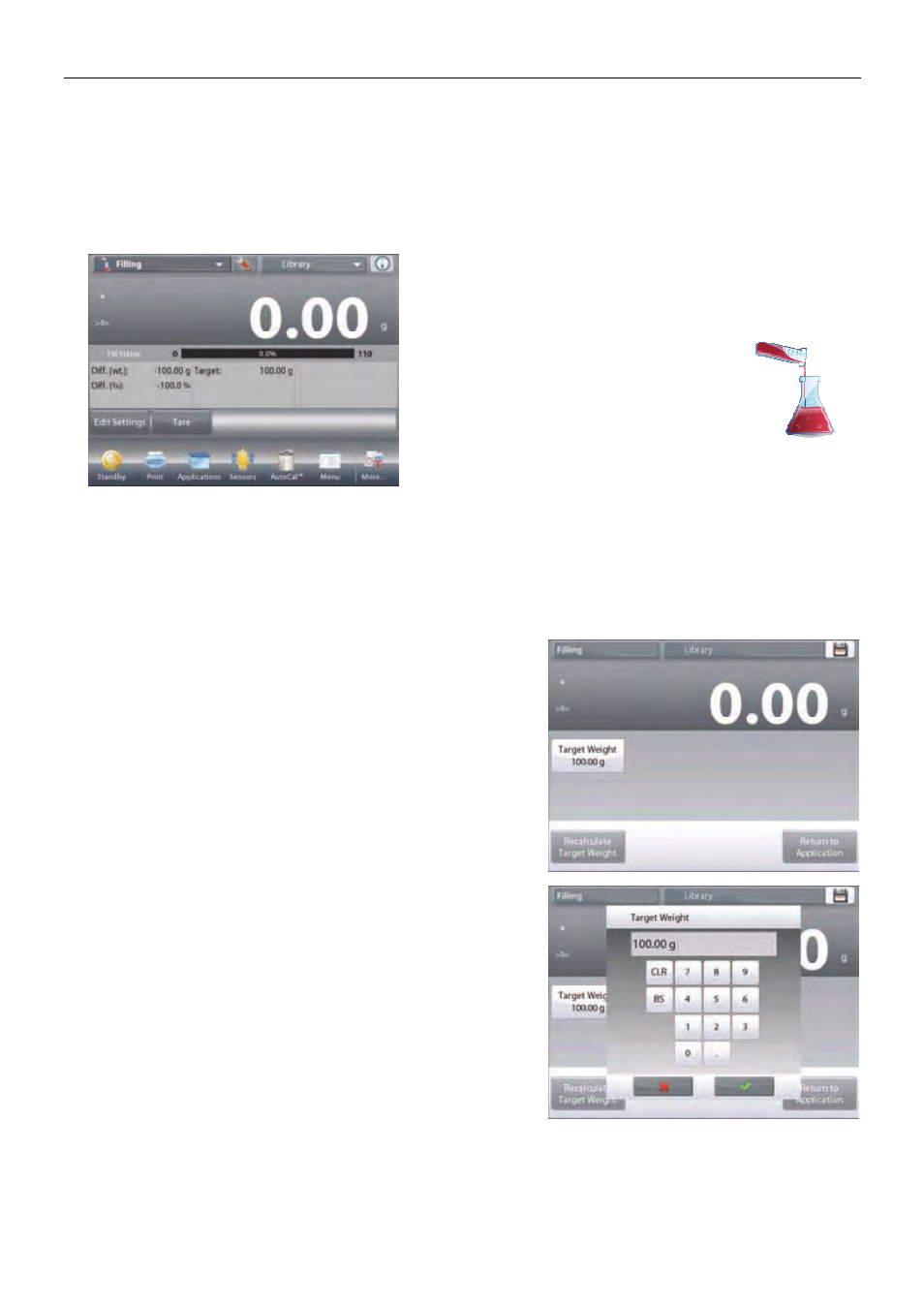

The FILLING Home screen
Main Display Line
Second Display Line
Reference Fields
Application Buttons
Functions Application Icon
The progress bar displays the filling status, and within 10 percent of the target value, the progress bar converts
to fine resolution display.
4.6.1 Edit Settings
To view or adjust the current settings:
Touch the Edit Settings button.
The Settings screen appears:
Settings available: Target Weight
Functions Available: Recalculate Target Weight,
Return to Application
Establish a Target Weight
Each time a new item is used for filling, the Target Weight
(fill-to weight) must be established.
There are two (2) methods to establish the Target Weight:
1. The actual Target Weight is known; or
2. The Target Weight can be derived from a sample.
Establish using a Known Target Weight
The current Target Weight appears on the Settings screen, on
the Target Weight button. (See above.)
To adjust the Target weight value directly,
touch the Target Weight button.
A numeric input window appears.
Enter the desired Target Weight, then press Done.
The display returns to the previous screen with the new value
highlighted.
Press Return to Application to go to the Filling home screen.
