Rice Lake Explorer Series Toploader, Ohaus User Manual
Page 32

EN-30
EXPLORER
BALANCES
4.3 Percent
Weighing
Use Percent Weighing to measure the weight of a sample displayed as a percentage of a pre-established
Reference Weight.
The default (or last) Reference Weight is displayed.
Place an object on the pan. The difference between the sample and the Reference Weight is displayed as both a
weight and a percentage.

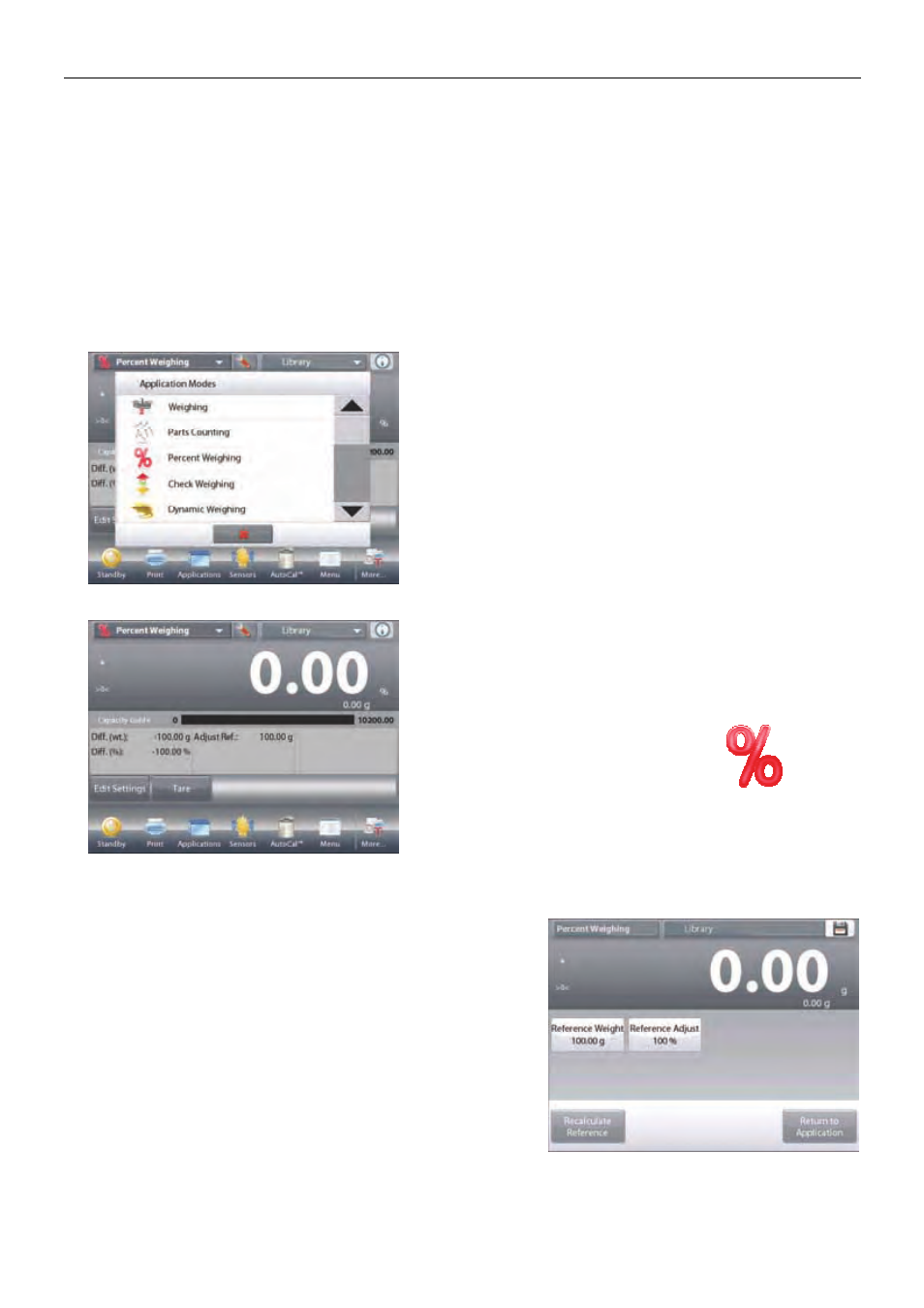

To Access Percent Weighing:
Press the upper left portion of the home screen,
so the available Application Modes are visible.
Select Percent Weighing.
The Percent Weighing Home Screen appears.
The PERCENT WEIGHING Home screen
Main Display Line
Second Display Line
Reference Fields
Application Buttons
Functions Application Icon
4.3.1 Edit
Settings
To view or adjust the current settings
To adjust the Application settings
,
touch the Edit Settings
button. (See above.)
The Settings screen is now displayed.
Settings available: Reference, Reference Adjust
Functions Available: Recalculate Reference,
Return to Application
