Chapter 5 – Maintenance and Adjustments 62
5 5 5 . . . 3 3 3 M M M e e e d d d i i i a a a W W W i i i d d d t t t h h h A A A d d d j j j u u u s s s t t t m m m e e e n n n t t t
Whenever using narrow media (sizes that are less than the width of the printhead), adjust the
Leveling Cam for even pressure distribution. Adjust the Printhead Leveling Cam as follows:

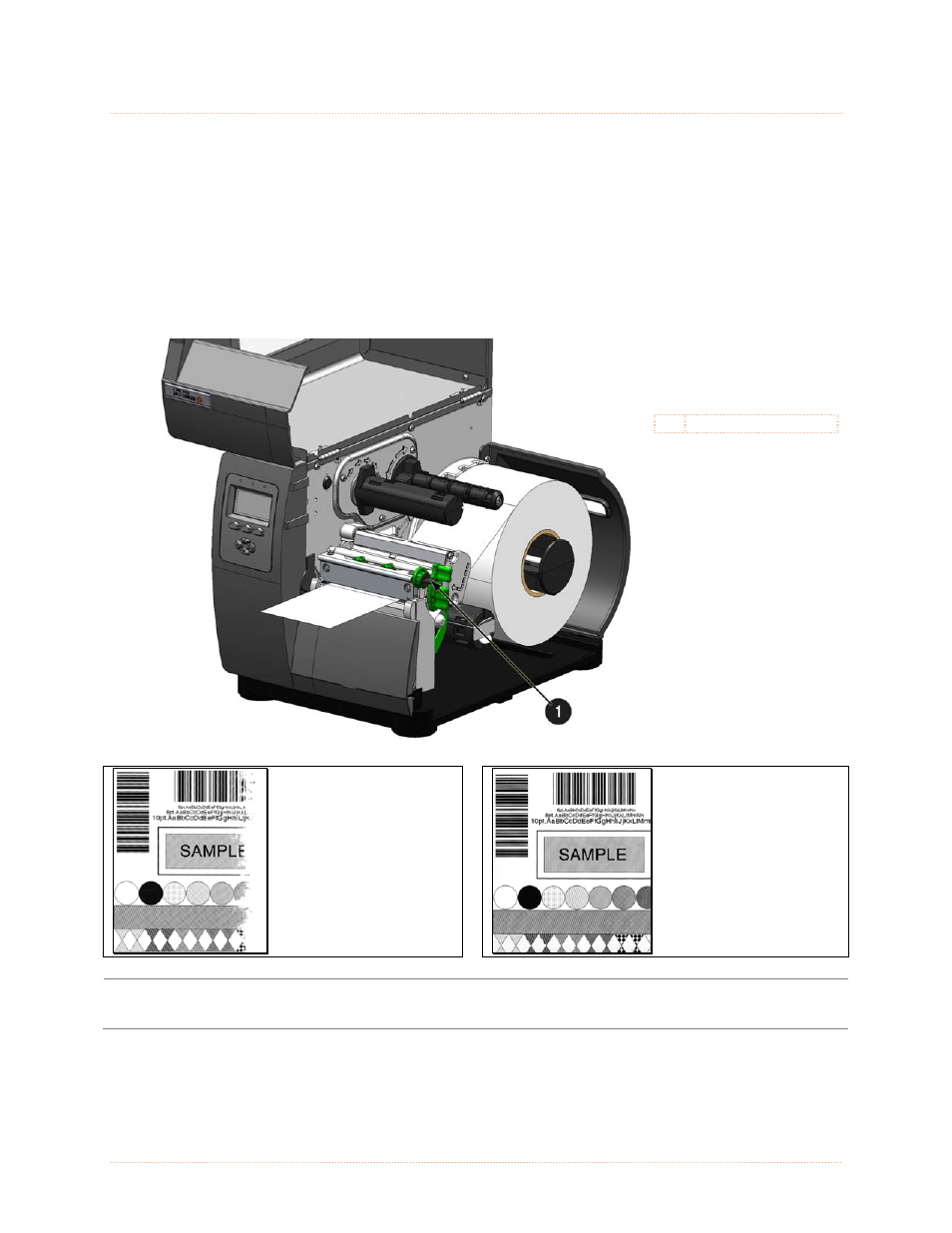

1. With media loaded, download your label format (or use a Test Menu format) then begin
printing a small batch of labels.
2. While observing the printed output, rotate the Leveling Cam counter-clockwise until the image
fades across the label, as shown in Example 1 (below).
3. While observing the printed output, rotate the Leveling Cam clockwise until the image is
complete, with even contrast, as shown in Example 2 (below).
 Thumbscrew
Example 1 – Over
adjustment:
Too much adjustment
produces an image
that fades across the
label. To correct this,
move the Thumbscrew
to the right.
Example 2 – Correct
adjustment:
The proper adjustment
produces a complete
image with even print
contrast across the
label (see note below).

Under-adjustment can also cause problems including ribbon wrinkling, label tracking, and platen
roller and printhead wear. When changing to a different width of label, always perform this
adjustment.
