Entering the Setup Menu
7
3.0
Setup Menu
The System 104 Loss-in-Weight Dispensing Controller has various setup parameters. They are explained in further
detail in the following sections.
3.1
Entering the Setup Menu
Note that the front panel E-stop button must be in the stopped position (pushed in) to enable the following
keypad entries.
1. Press the
Setup Menu
softkey on the main menu screen and the system performs one of the following
actions.
• If a system password is entered, proceed to Step 2.
• If no system password is entered, the
Setup Menu Main Screen
will display (see Figure 3-2).
2. Press the
Setup Password
softkey. The system prompts with
Enter Password
.

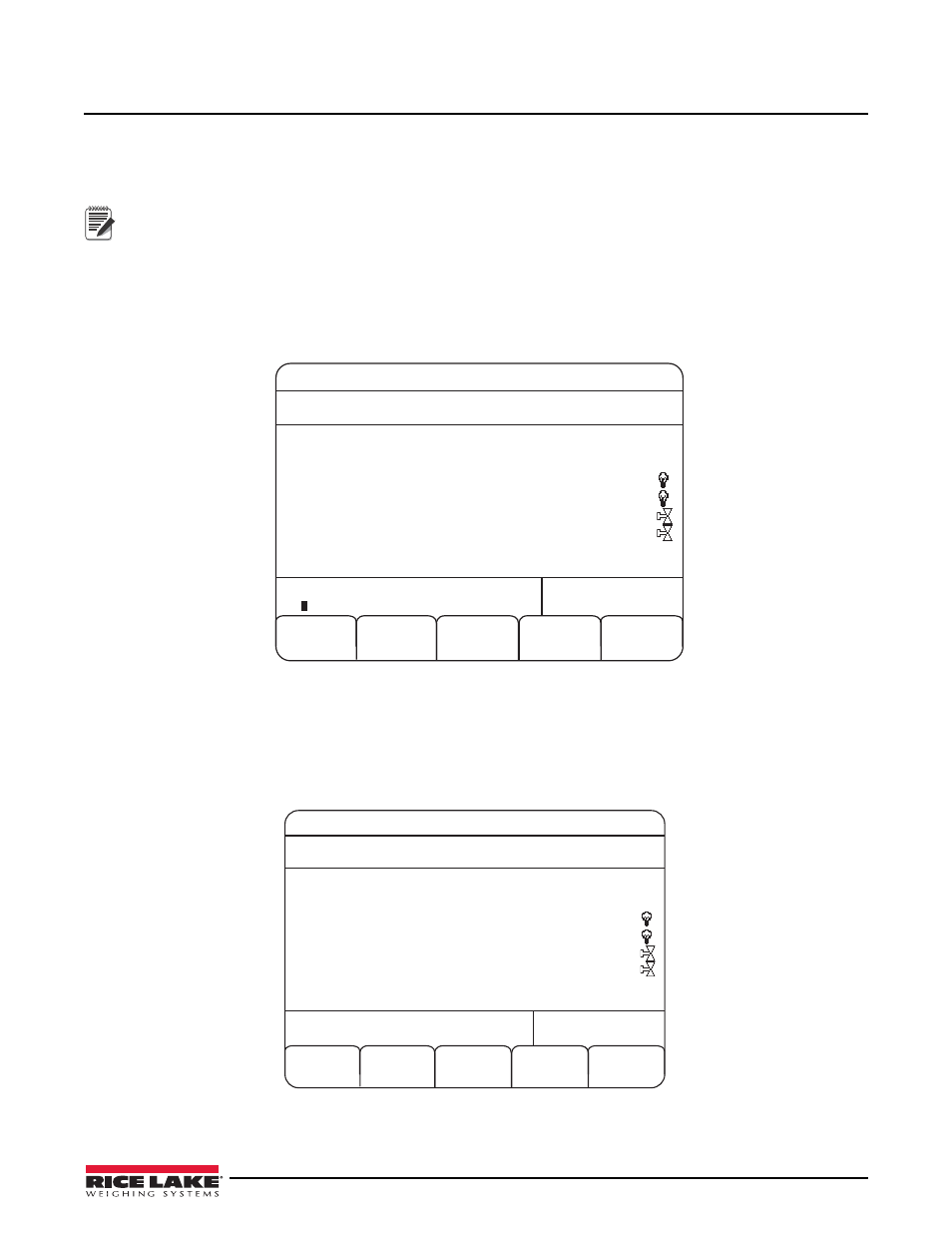

Figure 3-1. Setup Menu Enter Password
3. Enter the password and press the
ENTER
key on the 920i.
4. The system checks the entered value against the system password.
• If the password is valid the
Setup Menu Main Screen
will display (see Figure 3-2).
• If the password is invalid,
Invalid password
will display momentarily and display exits the operation.
Figure 3-2. Setup Menu Main Screen
