TELE/ IDE
W
(Increase and decrease the magnification)
FAR/NEAR (Focus near or far)
VOL+/VOL- (Increase or decrease the volume)
CCD/PC1/PC2 (CCD/RGB input signal selection)
VIDEO (Video input signal selection)
RED +/- (Increase/decrease the red hue)
BLUE +/- (Increase/decrease the blue hue)
BRIGHT +/- (Increase/decrease the brightness)
SCROLL / (Move the image up/down)
Remarks: FREEZE, TITLE, D./S. and SPLIT functions are only
available on PROJECTOR OUT port.

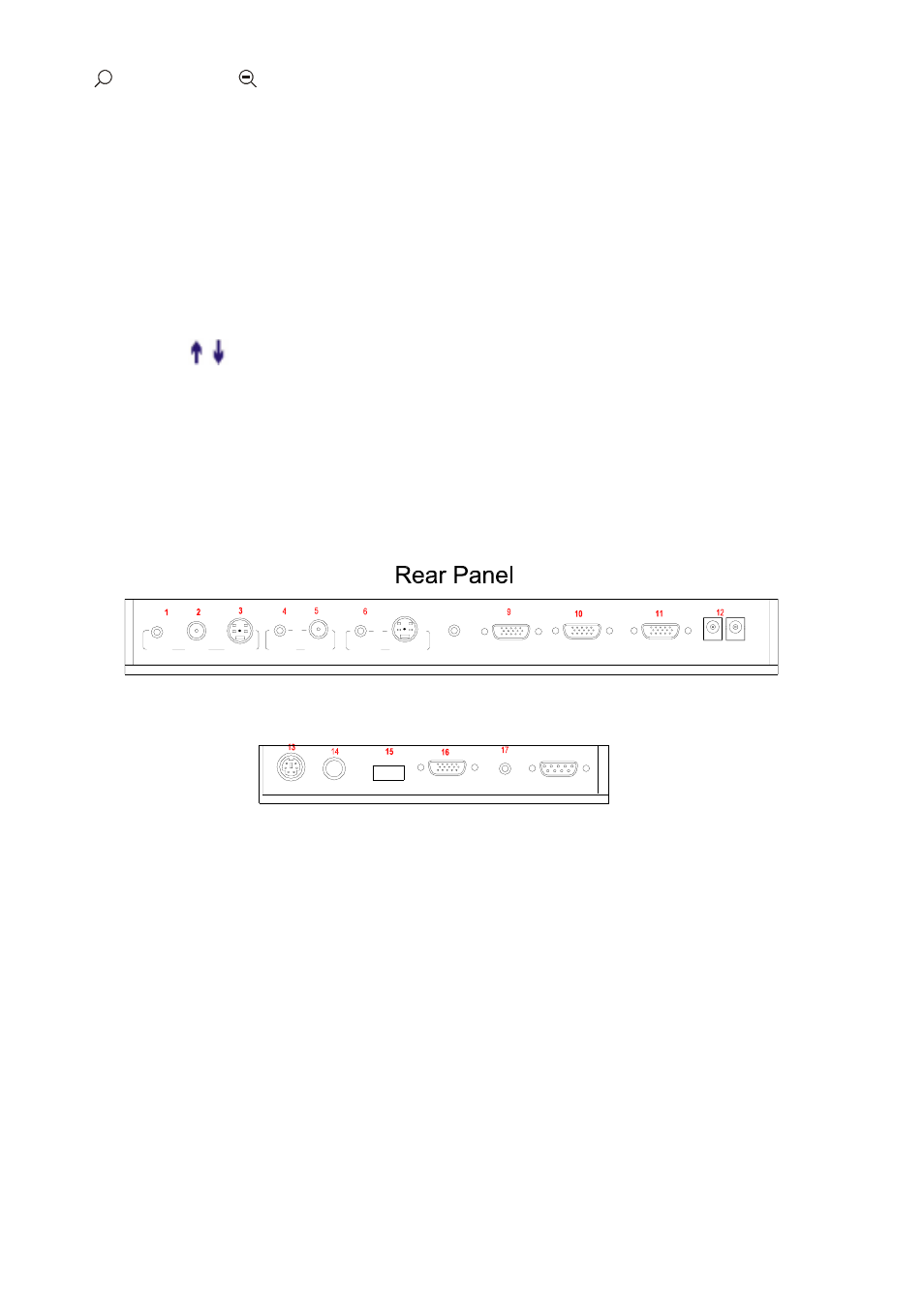

CONNECTIONS
#1 AUDIO OUT
#2 VIDEO OUT
#3 S-VIDEO OUT
#4 VIDEO AUDIO IN
#5 VIDEO IN
#6 S-VIDEO AUDIO IN
#7 S-VIDEO IN
#8 PC AUDIO IN
USB
PROJECTOR MIC
VIDEO
OUT
AUDIO
AUDIO
OUT
S-VIDEO
IN
VIDEO
RGB IN
AUDIO IN
RS232
Side Panel
#9 PROJECTOR Connector
#10 COMPUTER OUT
#11 COMPUTER IN
#12 POWER OUT/IN
#13 PROJECTOR RS232 Connector
#14 MIC IN
#15 USB Connector #16 RGB IN
#17 RGB AUDIO IN
#18 COMPUTER RS-232 Connector
PROJECTOR
OUT -COMPUTER- IN
OUT-12V- IN
AUDIO IN
S-VIDEO
AUDIO
IN
