QOMO QD700 - Manual (Page 11)

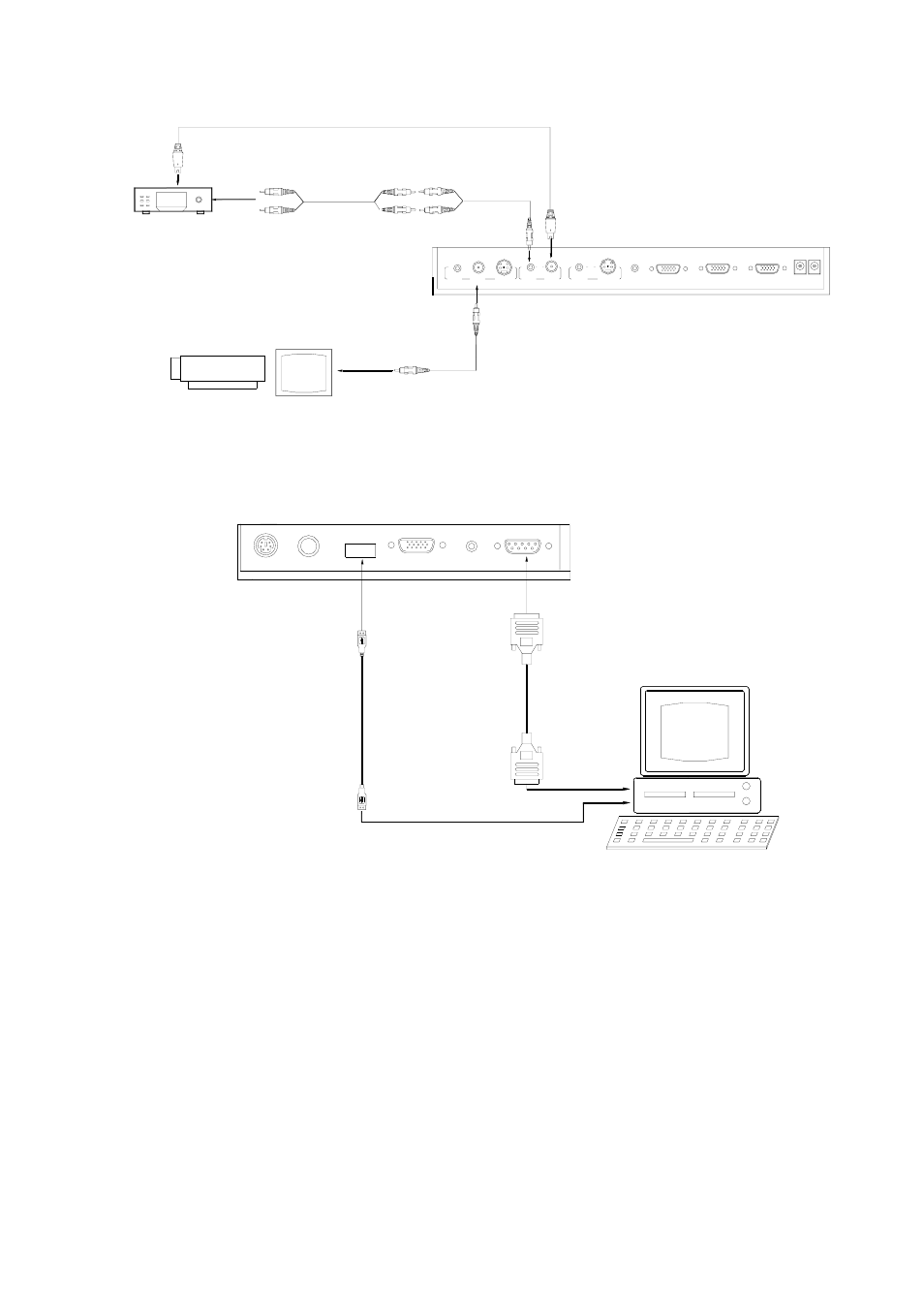

Step 5: Connect to the second video equipment with video input.
Step 6: Connections for external control from the computer.
Use the computer RS232 cable (9-pin to 9-pin) to make the
RS 232 connector
USB connector
of the computer
of the computer
USB cable
RS-232 cable
Side Panel
USB PROJECTOR MIC RGB IN AUDIO IN RS232
Video in
Projector Color monitor
S-VIDEO AUDIO
OUT OUT
AUDIO VIDEO S-VIDEO VIDEO
IN IN
AUDIO
Rear Panel
AUDIO IN PROJECTOR OUT -COMPUTER- IN OUT-12V- IN
Video equipment
Audio out
Video Cable
Video out
connections shown below to control the visualizer from an external
computer.
USB connection enables capturing still images / video streams from
the visualizer to the computer. Special software is required for this
operation.
4. Turn on the power by pressing the “POWER” button.
11
