! Objects not at ground level may appear to
be further away than they actually are, e.g.:
R the bumper of a parked vehicle
R
the drawbar of a trailer
R
the ball coupling of a trailer tow hitch
R the rear section of an HGV
R a slanted post
Use the guidelines only for orientation.
Approach objects no further than the bot-
tom-most guideline.

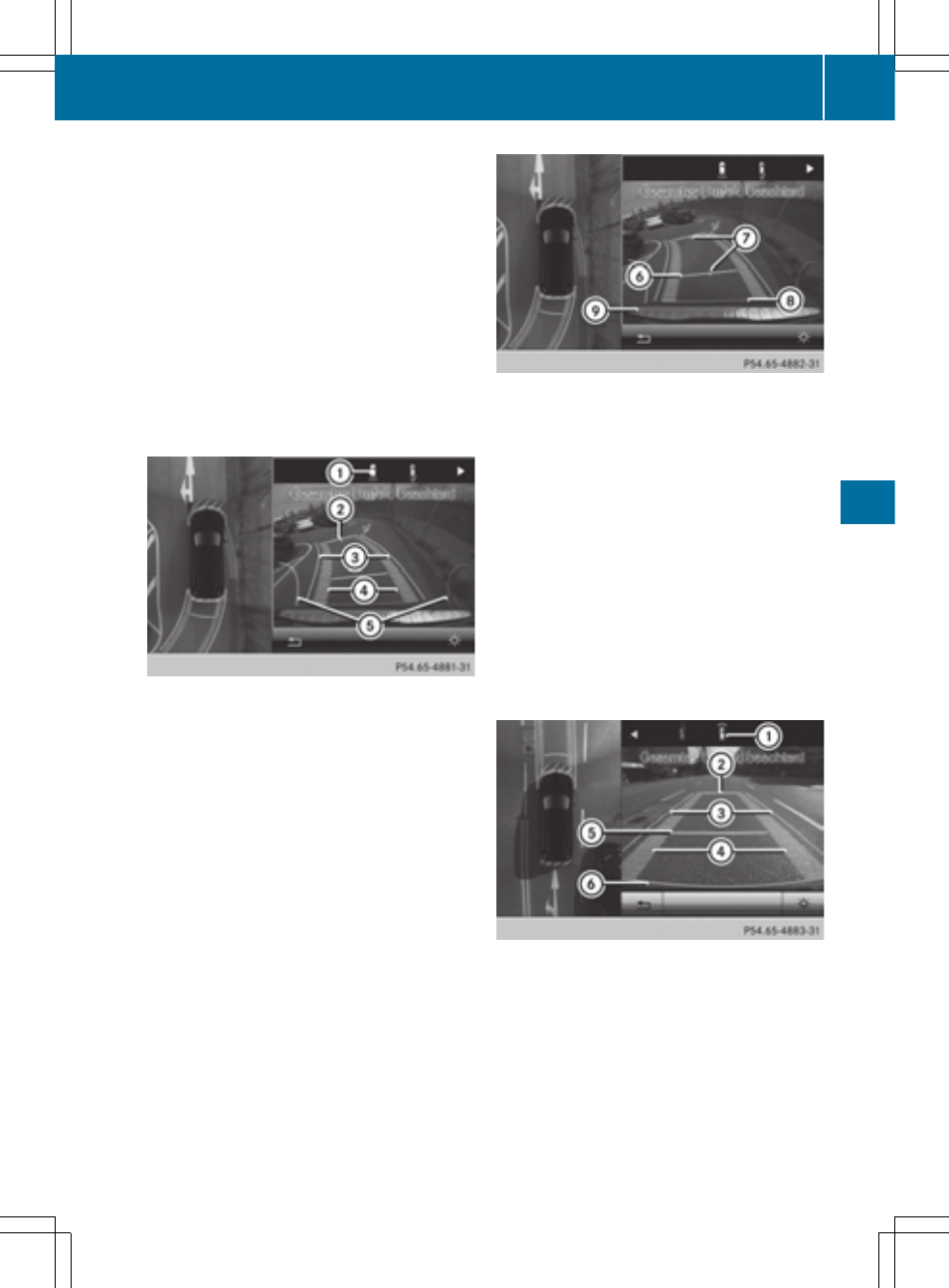

Top view with picture from the rear view
camera
: Symbol for the split screen setting with
top view and rear view camera image
; Yellow guide line at a distance of approx-
imately 13 ft (4.0 m) from the rear of the
vehicle
= Yellow guide line for the vehicle width
including the exterior mirrors, for current
steering wheel angle (dynamic)
? Yellow lane marking tires at current steer-
ing wheel angle (dynamic)
A Yellow guide line for the maximum steer-
ing angle
B Yellow guide line at a distance of approx-
imately 3 ft (1.0 m) from the rear of the
vehicle
C Vehicle center axle (marker assistance)
D Red guide line at a distance of approx-
imately 12 in (0.30 m) from the rear of the
vehicle
E Bumper
The guide lines are shown when the trans-
mission is in position R.
The distance specifications only apply to
objects that are at ground level.
Top view with picture from the front cam-
era
: Symbol for the split screen setting with
top view and front camera image
; Yellow guide line at a distance of approx-
imately 13 ft (4.0 m) from the front of the
vehicle
= Yellow guide line for the vehicle width
including the exterior mirrors, for current
steering wheel angle (dynamic)
? Yellow lane marking tires at current steer-
ing wheel angle (dynamic)
