BAG D

1 2

Figure 29

Figure 30

Figure 31

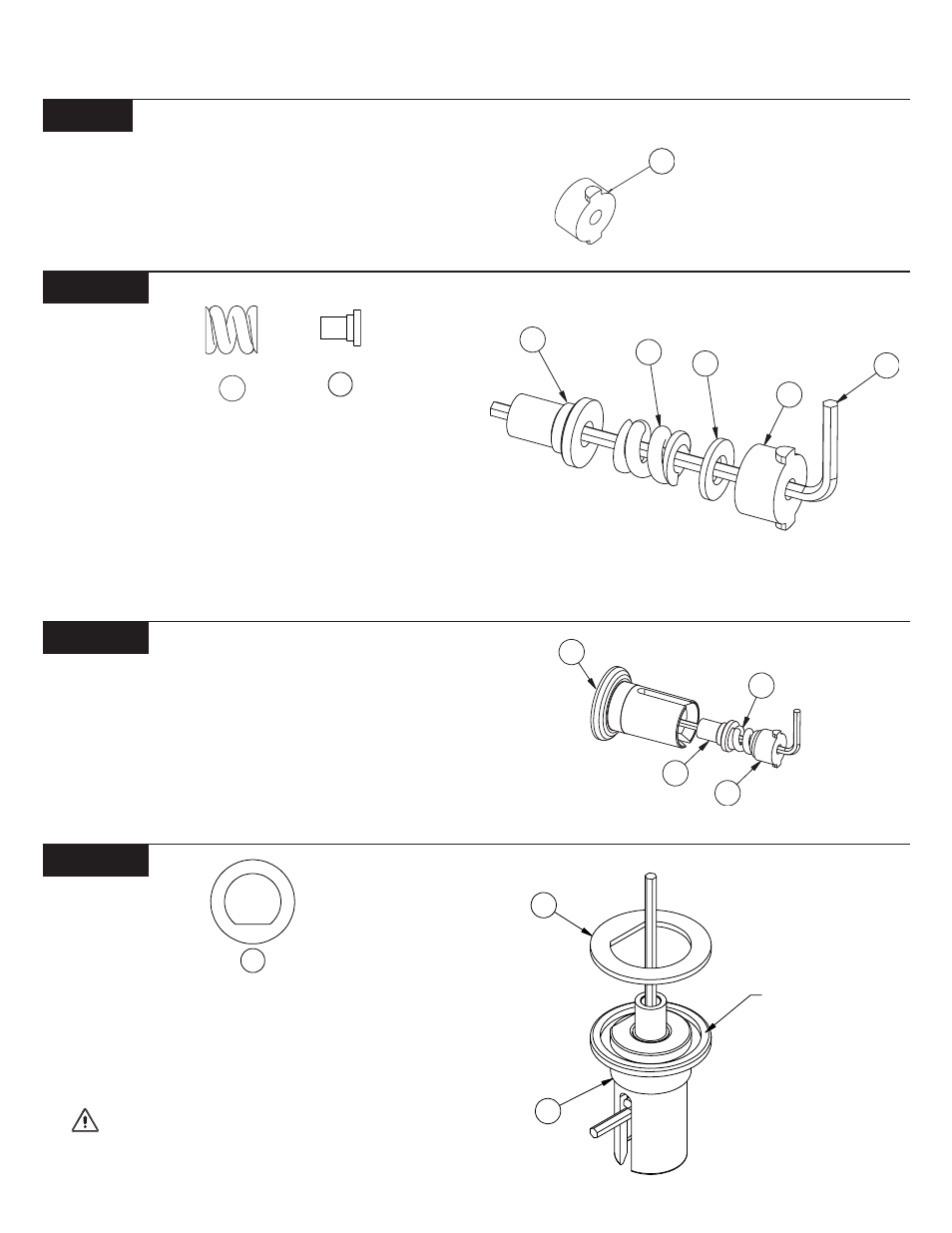

Step 2. Locate the 5/64" Allen wrench (74) supplied with the

kit. Place the diff nut/carrier (73), nut side first, over the Allen wrench
(74).

Step 3. Place the washer (58) over the wrench, next to the diff

nut/ carrier (73). Then slide the spring (75) over wrench and up against
the washer as shown in Figure 29.

Step 4. Place the diff tube (76) over the wrench, large side first, so

that it rests against the spring (75).

Step 5. Insert all of the parts that are stacked on the wrench

into one of the outdrive/diff halves (77). Line up the tabs on the
diff nut/carrier (73) with the slots in the outdrive (77). Make
certain that the diff tube (76) is pressed all the way into the
outdrive/diff half (77), and that it is straight. There is a small
shoulder on the diff tube (76) that should be flush with the outer
surface of the outdrive (77).

Step 6. Apply a small amount of diff grease (clear) (78) to the

outside ridge of the outdrive/diff half (77). Attach a diff washer
(79) to the outdrive (77) by lining up the flat section of the washer
(79) with the flat section of the outdrive (77).

*NOTE: Only a small amount of grease is needed. It is only there to

hold the diff washer in place.

IMPORTANT NOTE: Do not glue the diff washers to

the outdrive/diff halves. Doing so may not allow the washers to
mount flat.

Figure 29

SMALL AMOUNT
OF GREASE

Figure 31

Figure 30

Figure 28

Step 1. Locate the Hybrid Diff Nut (73).
