BAG B (Continued)
7
Figure 16
Figure 17
!

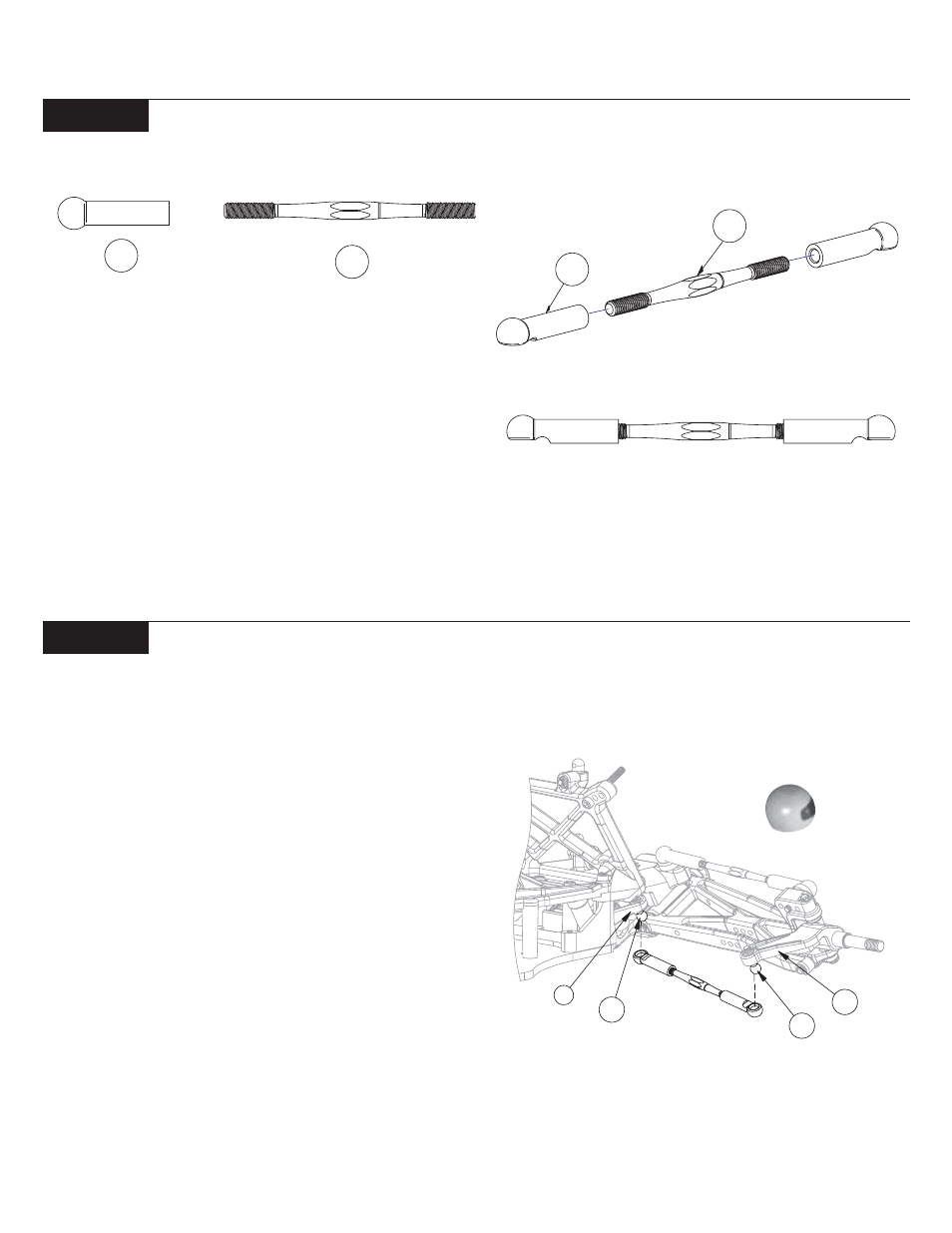

Step 25. Thread a plastic rod end (45) onto each end of a
2-1/4" turnbuckle (46). Tighten both rod ends (45) equally until
the rod is the same length as the rod in Figure 16A. Make two of
these tie-rod assemblies.
*NOTE: Each end of the turnbuckle is threaded opposite. One end
has left-hand threads, the other right-hand threads. This allows the length
of the rods, once installed, to be adjusted without removing them.
!
Step 26. Snap one end of a completed tie rod assembly to
the ball stud (11) in the steering idler arm (8). Snap the other end
to the ball stud (10) in the right spindle (29). Attach the other tie
rod assembly to the ball studs in the servo saver assembly and
the left spindle (28).
!
Once again, assure that all turnbuckles are mounted
with the threads in the same direction for easier adjustment later.
Figure 16
Figure 16A
Figure 17
46
45
45
46
