Page 26
MARS User´s Guide
12.2 HDD Power Connectors (4 pin) X7 + X13
This connector can be used to connect devices which need 5V and/or 12V. E. g. harddisks can be
directly connected and powered by SBS MARS together with the host computer.
This connector can also be used to source the 4 pin 12V DC connector with the specific adapter.
This is necessary if e. g. a ETXexpress backplane should be supplied.
The connector has the pining of a standard HDD power connector.

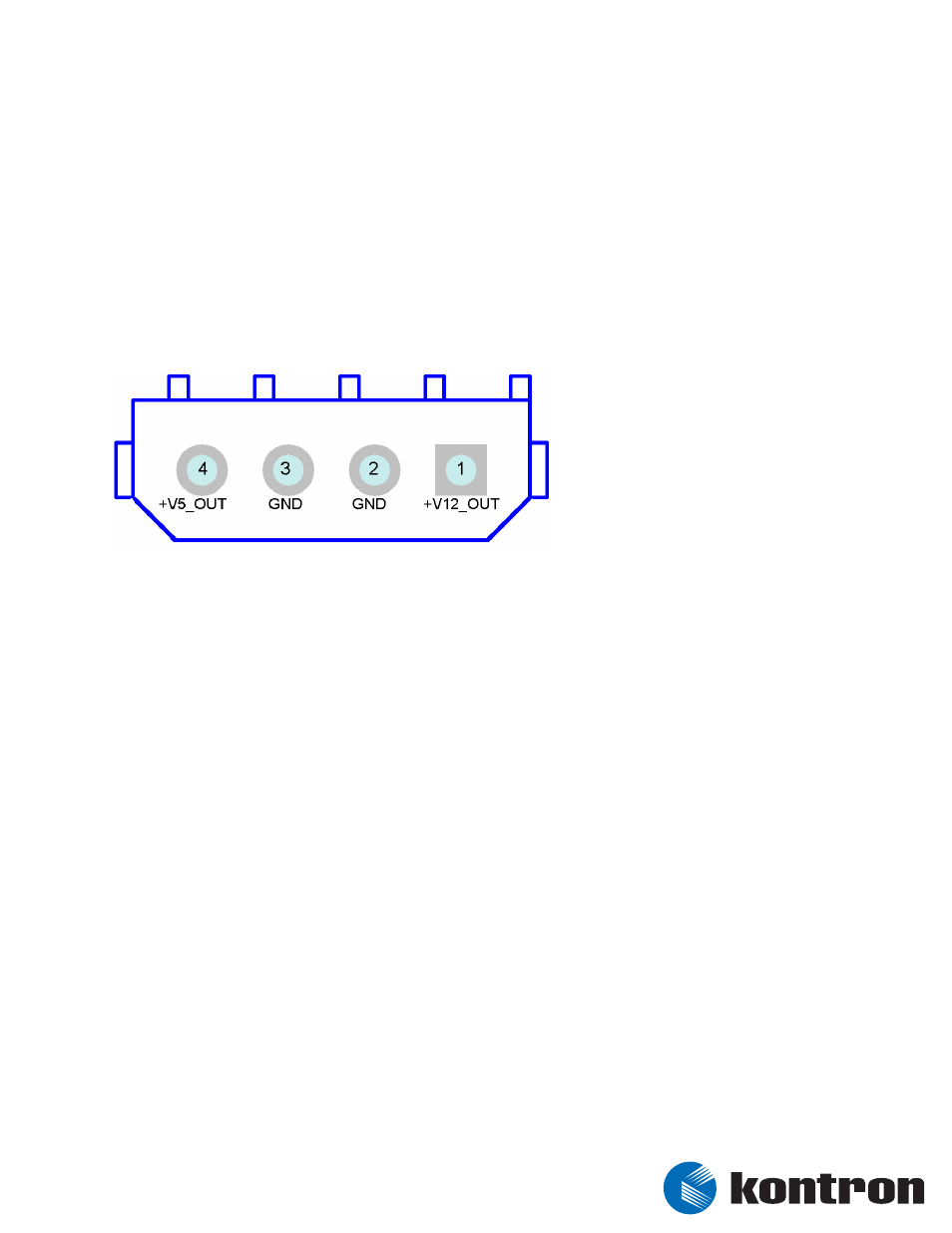

Fig. 6: Pining of the harddisk connector X7 or X13
A power cable for harddisks and one for the 12V connector (ATX12V 2.1 Spec or higher) is enclosed
in the SBS MARS Starter-Kit.
Output of the SBS MARS
25
