KTGM45 Users Guide
KTD-N0793-O Page 24

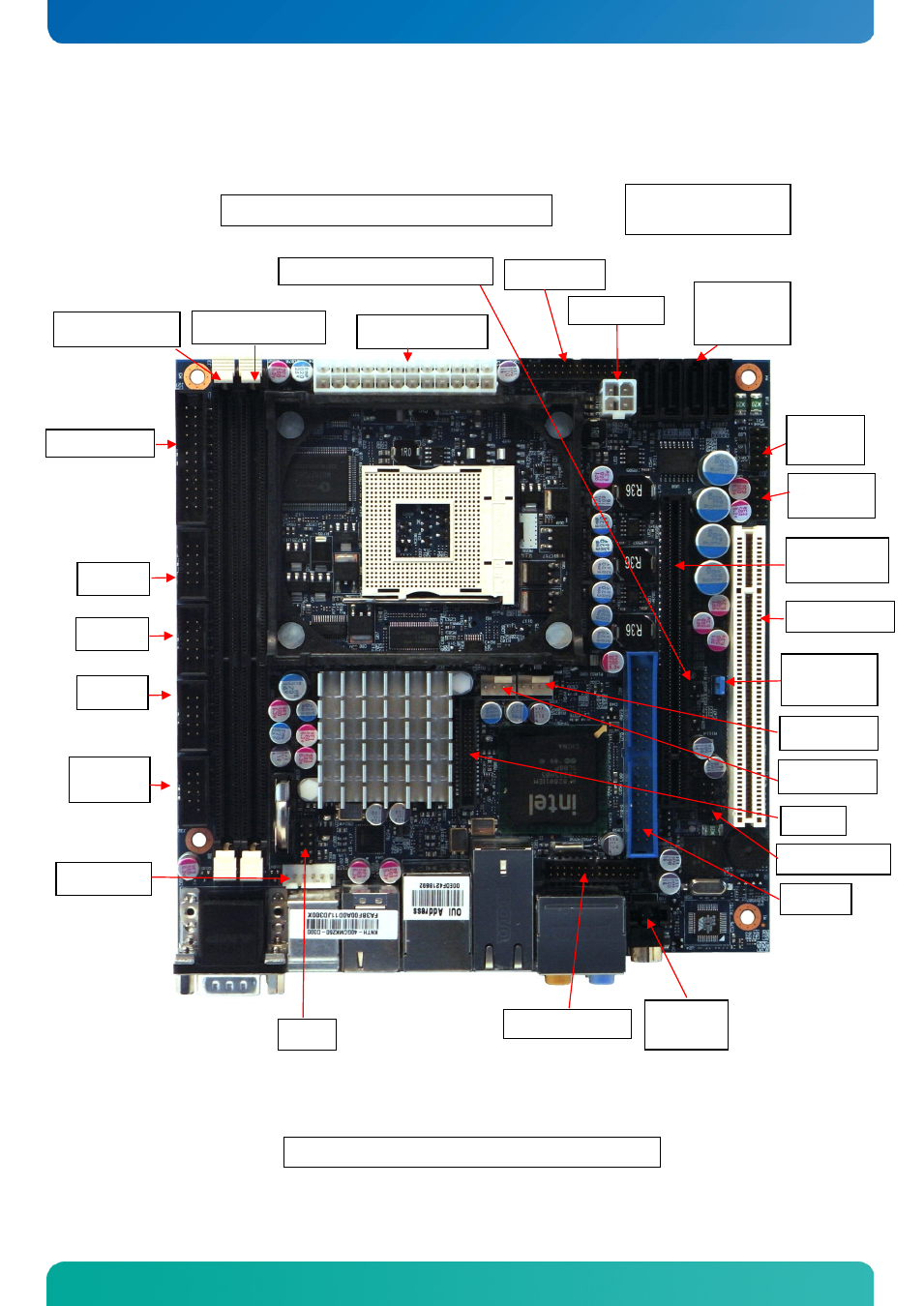

3.1 Connector layout
3.1.1 KTGM45/mITX
Notes: In according to Intel ICH9ME chipset specification the SATA ports 2 and 3 are not functional.
CDROM Audio Input connector is not mounted on mITX version.
Connector Definitions
DDR3 SLOT 1
FEATURE
IDE_P
KBDMSE
PCIe x16
/SDVO
ATX/ BTXPWR
PCI SLOT 0
DDR3 SLOT 0
USB10
USB11
SAT
A0
SAT
A1
SAT
A5
SAT
A4
FRONTPNL
LVDS
CDROM
(See note)
AUDIO_HEAD
COM3
COM4
ATX+12V
FAN_SYS
FAN_CPU
IEEE1394_0
USB6
USB7
COM2
USB8
USB9
SPI
ClrCMOS
Jumper
Connectors in IO Bracket area see next page.
Mini-PCIe (backside
of KTGM45/mITX)
CF on backside of KTGM45/mITX Plus only
(See note)
System temperature sensor (Q19)
