Functional Description CP-RIO3-05
Page 2 - 12 ID 1044-0711, Rev. 1.0
P R E L I M I N A R Y

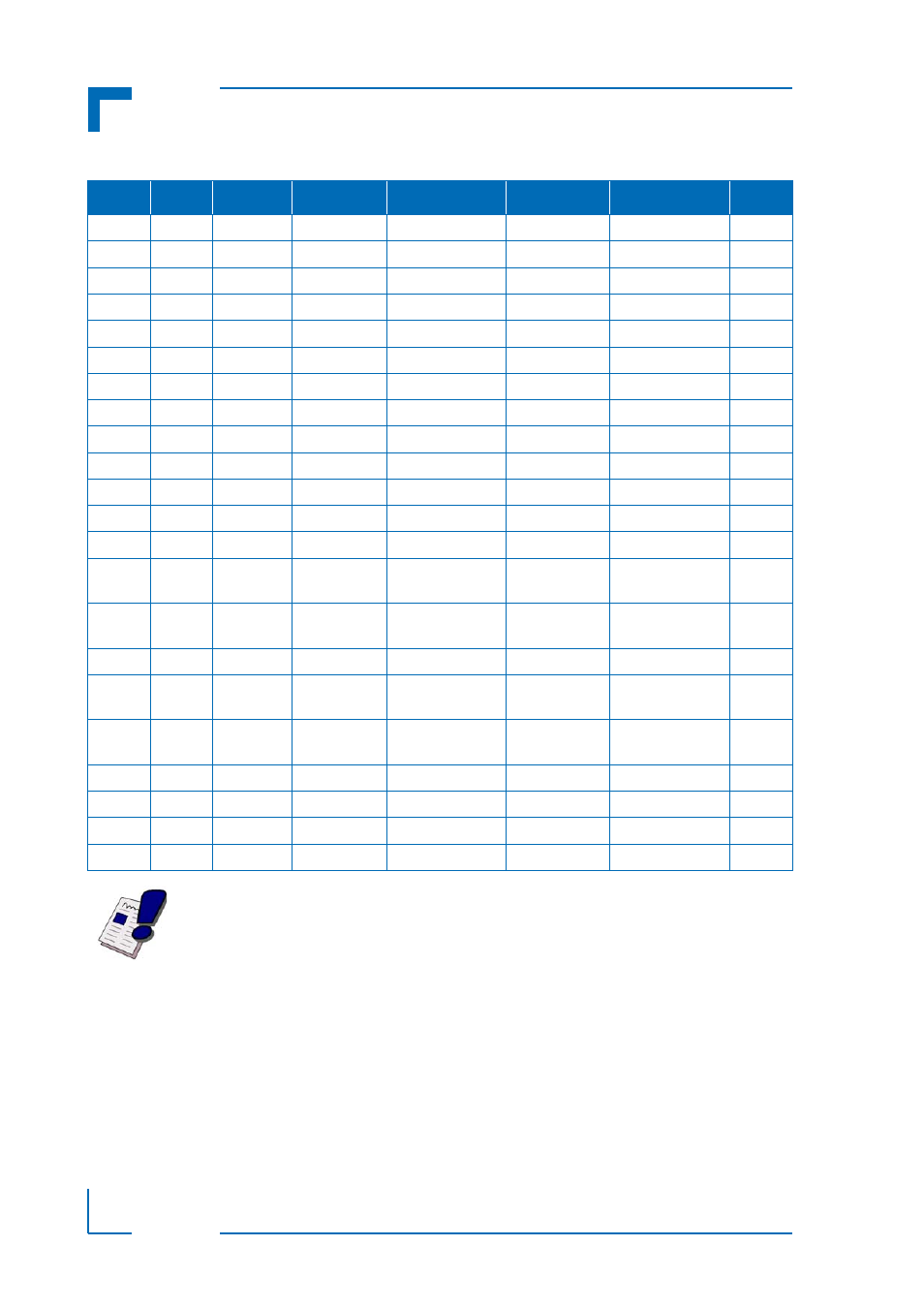

Table 2-10: Rear I/O CompactPCI Bus Connector rJ2 Pinout
PIN ROW Z ROW A ROW B ROW C ROW D ROW E ROW F
22 NC NC NC NC NC NC GND
21 NC GPI4 GND USB1+ USB0+ USB1_PWR_5V GND
20 NC GPO1 GND USB1- USB0- USB0_PWR_5V GND
19 NC GND GND RIO_3.3V (BAT) GPI2 RIO_3.3V GND
18 NC IPC_DA+ IPC_DA- GPO0 IPD_DA+ IPD_DA- GND
17 NC IPC_DB+ IPC_DB- PRST# IPD_DB+ IPD_DB- GND
16 NC IPC_DC+ IPC_DC- NC GND IPD_DC+ GND
15 NC IPC_DD+ IPC_DD- NC GPI0 IPD_DC- GND
14 NC lPB_DA+ lPB_DA- IPD_DD+ lPB_DC+ lPB_DC- GND
13 NC lPB_DB+ lPB_DB- IPD_DD- lPB_DD+ lPB_DD- GND
12 NC lPA_DA+ lPA_DA- IP_PWR lPA_DC+ lPA_DC- GND
11 NC lPA_DB+ lPA_DB- COM1_RI# lPA_DD+ lPA_DD- GND
10 NC GND GND VGA_RED COM1_DSR# GND GND
9 NC SATA0TX+ COM1_RXD VGA_HSYNC COM2_RX+/
RXD SATA1TX+ GND
8 NC SATA0TX- COM1_CTS# VGA_BLUE COM2_RX-/
CTS# SATA1TX- GND
7 NC GND GND VGA_DDC_DATA GND GND GND
6 NC SATA0RX+ COM1_RTS# VGA_GREEN COM2_TX+/
RTS# SATA1RX+ GND
5 NC SATA0RX- COM1_TXD VGA_VSYNC COM2_TX-/
TXD SATA1RX- GND
4 NC VI/O RIO_5V VGA_DDC_CLK COM1_DCD# COM1_DTR# GND
3 NC GPI1 GND NC GPI3 GPO2 GND
2 NC NC NC NC NC NC GND
1 NC NC GND NC NC NC GND
Warning!
The RIO_XXX signals are power supply INPUTS to supply the rear I/O module
with power. These pins MUST NOT be connected to any other power source,
either within the backplane itself or within a rear I/O module.
Failure to comply with the above will result in damage to your board.
