CP-RIO3-05 Functional Description
ID 1044-0711, Rev. 1.0 Page 2 - 3
P R E L I M I N A R Y
2. Functional Description
2.1 Board Interfaces
2.1.1 VGA Interface
The CP-RIO3-05 provides one 15-pin, D-Sub VGA connector, J8, on the front panel. This
connector is used to connect an analog VGA (CRT) monitor to the CP-RIO3-05.
The following figure illustrates the D-Sub VGA connector J8.

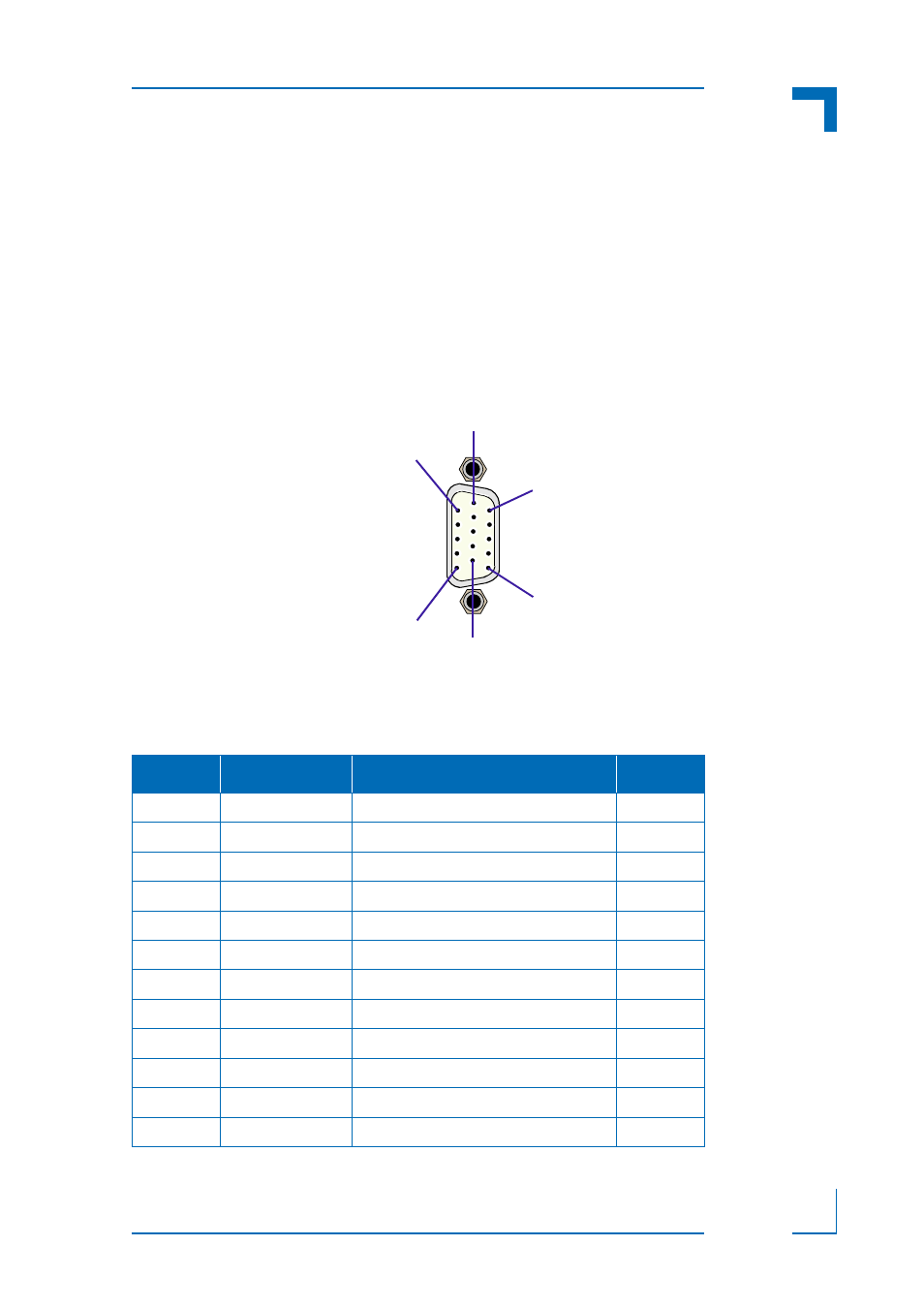

Figure 2-1: D-Sub VGA Connector J8
The following table indicates the pinout of the D-Sub VGA connector J8 .
Table 2-1: D-Sub VGA Connector J8 Pinout
PIN SIGNAL FUNCTION I/O
1 Red Red video signal output O
2 Green Green video signal output O
3 Blue Blue video signal output O
4 NC Not connected --
5 - 8 GND Signal ground --
9 VCC Power +5V, 140 mA fuse protection O
10 GND Signal ground --
11 NC Not connected --
12 SDA I²C data (EDID) I/O
13 Hsync Horizontal synchronization TTL Out
14 Vsync Vertical synchronization TTL Out
15 SCL I²C clock (EDID) I/O
1
6
11
15
10
5
