Probe Stand Operation

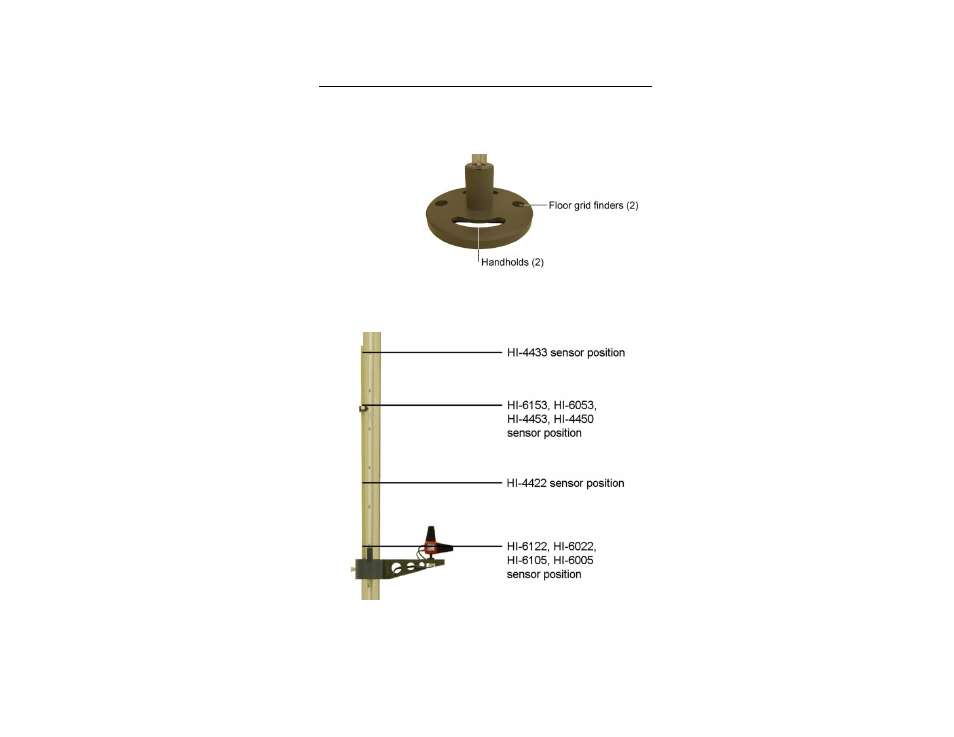

The support rod is marked with sensor positions that correspond to each probe,
and the probe stand tube is graduated to easily measure the distance to the floor.
The base plate includes:
• Handholds (2)—To
easily move
the probe stand
• Floor grid
finders (2)—To align
probe to floor grid
1. Attach the probe to the probe carrier using the probe thumbscrew.
76 | H-491269 Probe Stand
Archived 6/29/10
Use only the content for
HI-4422 in this manual.
Disregard content for
all other probe models;
see ETS-Lindgren
website for other
probe content.
