ETS-Lindgren 2187 Turntable User Manual
Page 8
8
| Introduction
S
HIELD
R
OOM
F
EED
-
THROUGH
Routes the fiber optic control cable from the control room to the shield room,
maintaining satisfactory shielding attenuation. The unit is made of brass for
conductivity and provides attenuation of greater than 100 dB at 10 GHz. A single
22.25-mm (0.875-in) hole is required for mounting.
Optional Items
I
NFRARED
R
EMOTE
C
ONTROLLER

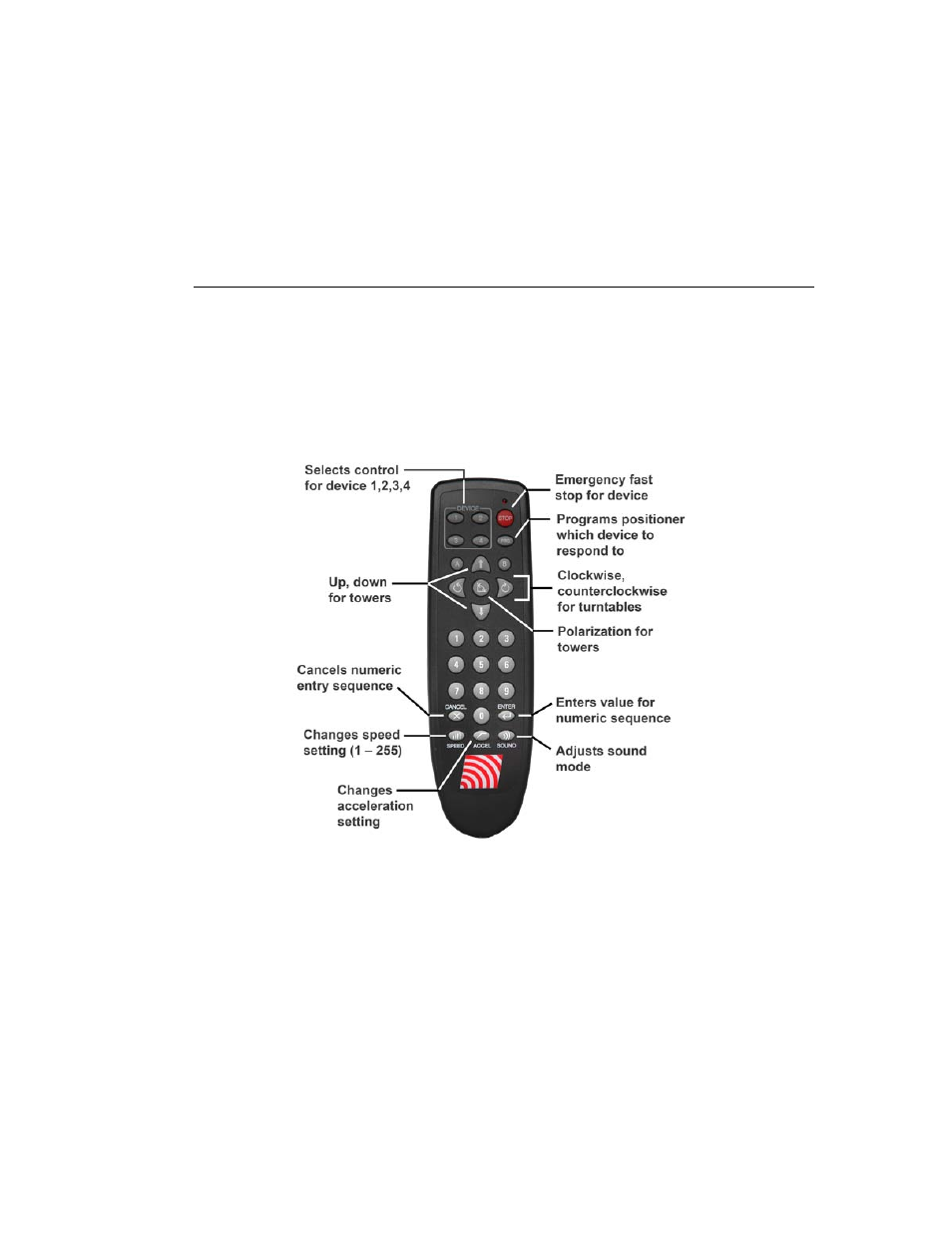

The Model 2187 is infrared compatible, and can be used with a universal remote
control programmed to a specific protocol, such as the ETS-Lindgren Infrared
Remote Controller (IR remote).
The IR remote communicates with an infrared receiver in the Model 2187
motor base through an IR repeater installed in the floor near the turntable. See
IR Repeater Installation on page 23 for instructions on installing an IR repeater.
S
LIP
R
ING
Allows continuous rotation of the turntable through the latest technology in
mercury slip rings, and either Schuko or NEMA connectors can be ordered with
the slip ring. The current rating for the standard electrical assembly is
20 amperes. Contact ETS-Lindgren for custom requirements on slip rings.
