ETS-Lindgren 2187 Turntable User Manual
Page 21

Assembly and Installation
|
21
Installing the ground ring assembly requires these tools:
• 1/4-in spacers (3)
• Hand
drill
• 5/32-in drill bit
• #3 Phillips drive bit
• Small
square
• #14 x 1 wood/metal screws

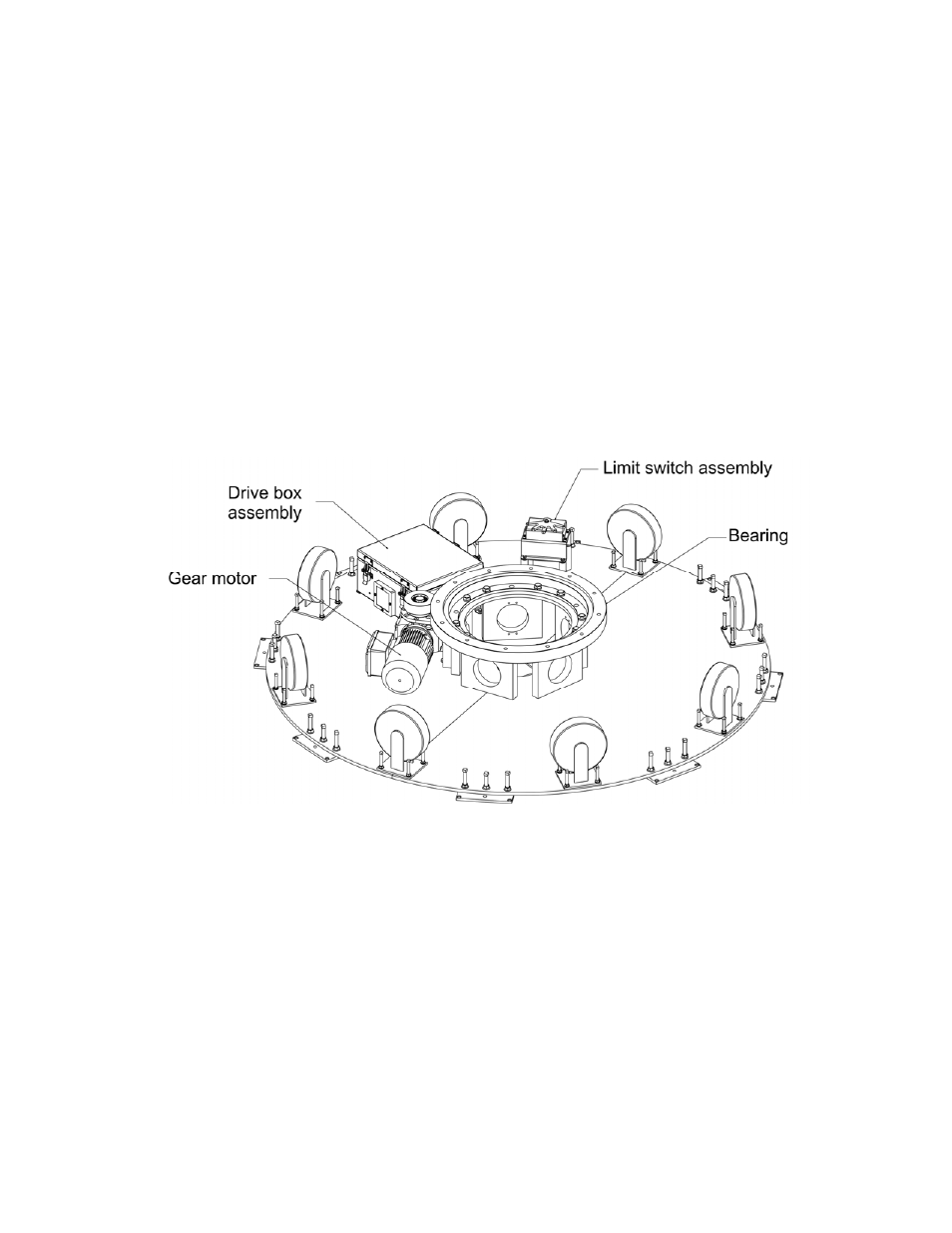

The turntables each have two floor flange pieces. All flanges are pre-cut at the
factory for a drop-in fit.
1. Lay the floor flange into the opening of the raised floor and push outward
to the diameter of the opening.
2. Attach the turntable top onto the center bearing with the hardware
provided.
3. Using a pipe clamp and 1/4-in Allen wrenches or 1/4-in pin, place a
spacer between the turntable and floor flange starting in three places in
the center or on the flange.
