Page 36
25
9
24
11
12
10
10
13
11
24
8 19
31 28
22
23
6 20
16
29
7
16
2
14
15
BEARING SHOWN FOR
REFERENCE ONLY
18
27
26
17
21
4
5
3
30
32
5 REF, PART OF
SHIPPING KIT
4
1
ITEM#
QTY
PART#
DESCRIPTION
33
1
920192
LABEL,WARNING,GEARS BELOW TURNTABLE(NS)
32
96
910652
SCREW FH PHL ZN TAPTITE 6-32 X 3/8
31
12
112134
CONTACT STRIP,BRUSH,TURNTABLE,2187-3.0
30
8
109468
ASSY,BRUSH/HOLDER MODIFICATION
29
8
910930
SCREW,10-32 X 3/8,PHIL,FLAT,SS
28
156
910714
SCREW,6-32 X 1/4,PHIL,BIND,TAPTITE
27
48
910616
SCREW LEVELING 1/2-13 X 3 SQ HD CU
26
48
910615
NUT,3/8-16,HEX,ZINC,SERRATED FLANGE
25
12
910440
SCREW,1/4-20 X 3/4,PHIL,FLAT,SS
24
36
910413
SCREW,1/2-13 X 1.00,SH,FLAT,ZN
23
36
910373
SCREW,5/16-18 X 1,SH,FLAT,SS
22
36
910372
SCREW,5/16-18 X 1 1/4,SH,FLAT,SS
21
36
910367
NUT,1/2-13,HEX,SERRATED FLANGE,ZN
20
4
910241
SCREW,8-32 X 3/8,PHIL,FLAT,SS
19
24
910173
SCREW,6-32 X 3/8,PHIL,FLAT,SS
18
12
890668
CASTER,8" FIXED
17
36
890238
SCREW LEVELING 1/2-13 X 3 SQ HD CU
16
2
880316
PIN,CLEVIS,SS,1/2"O.D. X 1.5" LONG
15
6
705434
FLOOR FLANGE,TURNTABLE,3.0m,AL
14
6
112133
TIE BAR,INSIDE,TOP,2187-3.0
13
1
111988
TOP,SECT4,TURNTABLE,2187-3.0
12
1
111987
TOP,SECT3,TURNTABLE,2187-3.0
11
2
111986
TOP,SECT2,TURNTABLE,2187-3.0
10
2
111985
TOP,SECT1,TURNTABLE,2187-3.0
9
2
111333
RING,SPLIT,2187 TURNTABLE
8
12
110405
CONTACT FLAT,BRUSH,TURNTABLE
7
6
110059
PLUG,HOLE,TABLE TOP
6
1
108925
COVER,ACCESS
5
12
106789
FLOOR PLATE SPACER 2081
4
8
106733
ANGLE STRUT 3M 2087
3
12
106732
CASTER PLATE 2M 2087
2
6
106730
TIE PLATE 3m 2087
1
12
105813
TAB,TOP,2087

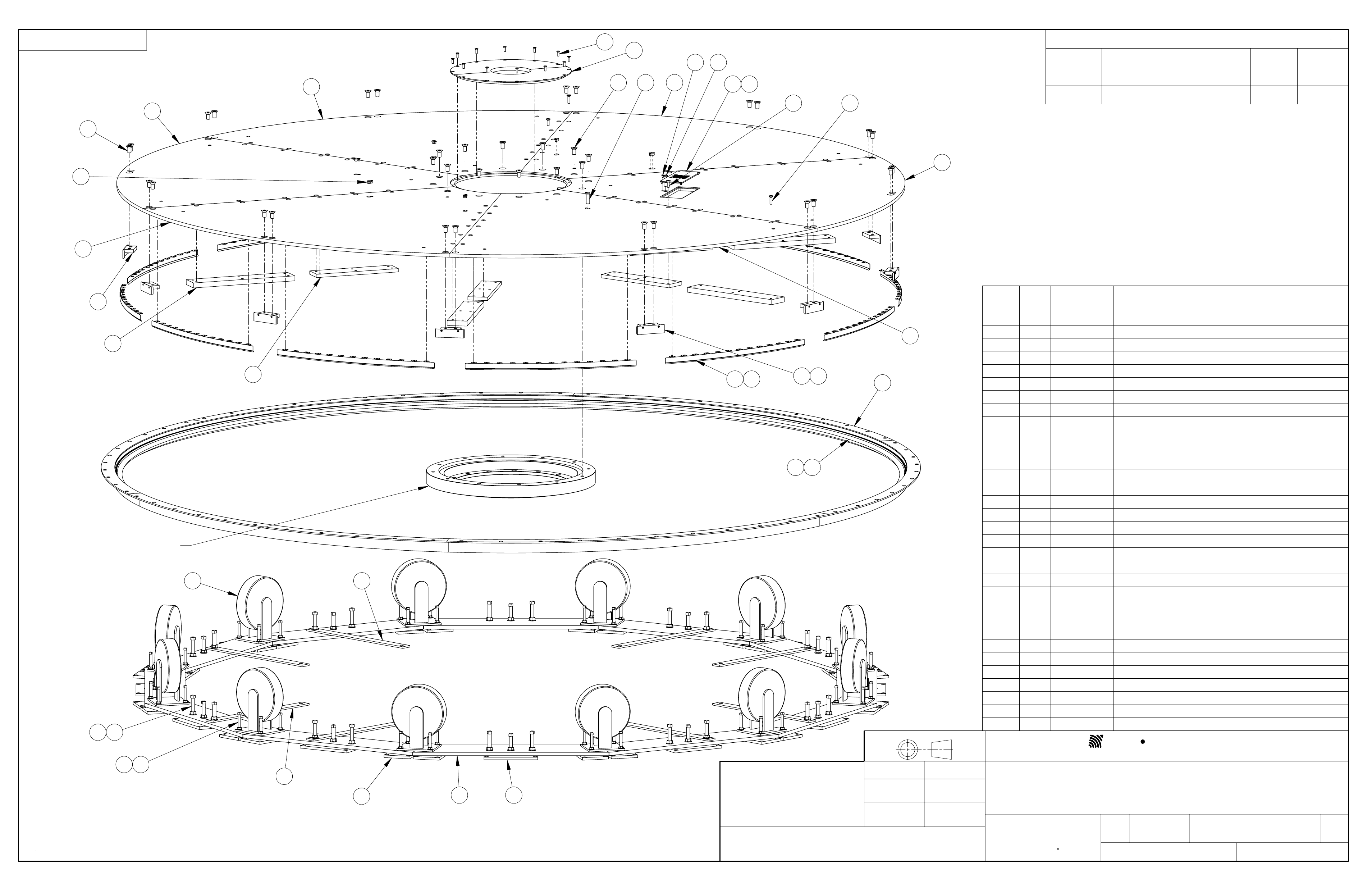

SUB-ASSY,TOP,TURNTABLE,2187-3.0
1:6
112131
A
1
1
7/16/07
X.XX
X.XXX
.005
.015
.5
NONE
REF DRAWING
ECN
REV
APPROVED
REVISIONS
DESCRIPTION
DATE
DO NOT SCALE DRAWING
ETS LINDGREN
SIZE
THIRD ANGLE PROJECTION
ENGINEERING
INITIAL
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER
FINISH
TOLERANCES ARE:
DECIMALS
±
±
±
ANGLES
DRAFTING
PERMISSION OF ETS LINDGREN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
WITHOUT EXPRESS WRITTEN
DOCUMENT, WHOLE OR IN PART,
DATE
TITLE
OF
SHEET
DWG. NO.
An ESCO Technologies Company
SCALE
D
TM
REV.
1
INITIAL BUILD
-
RBG
RBG
2/18/08
RELEASED TO STANDARD
A
5407
