Elecraft KX3 Application Note – Installing the Speaker Grille Cloth
Page 8 of 9
Before you replace the flex cable, fit the top and bottom covers together and check the alignment of the top
cover just below the speaker with the bottom cover as shown in Figure 12. There must be a gap between the edge of
the top cover and the bottom cover as shown. If needed, adjust the top cover as shown in Figure 13. Work carefully,
bending the cover in small amounts then rechecking the fit.

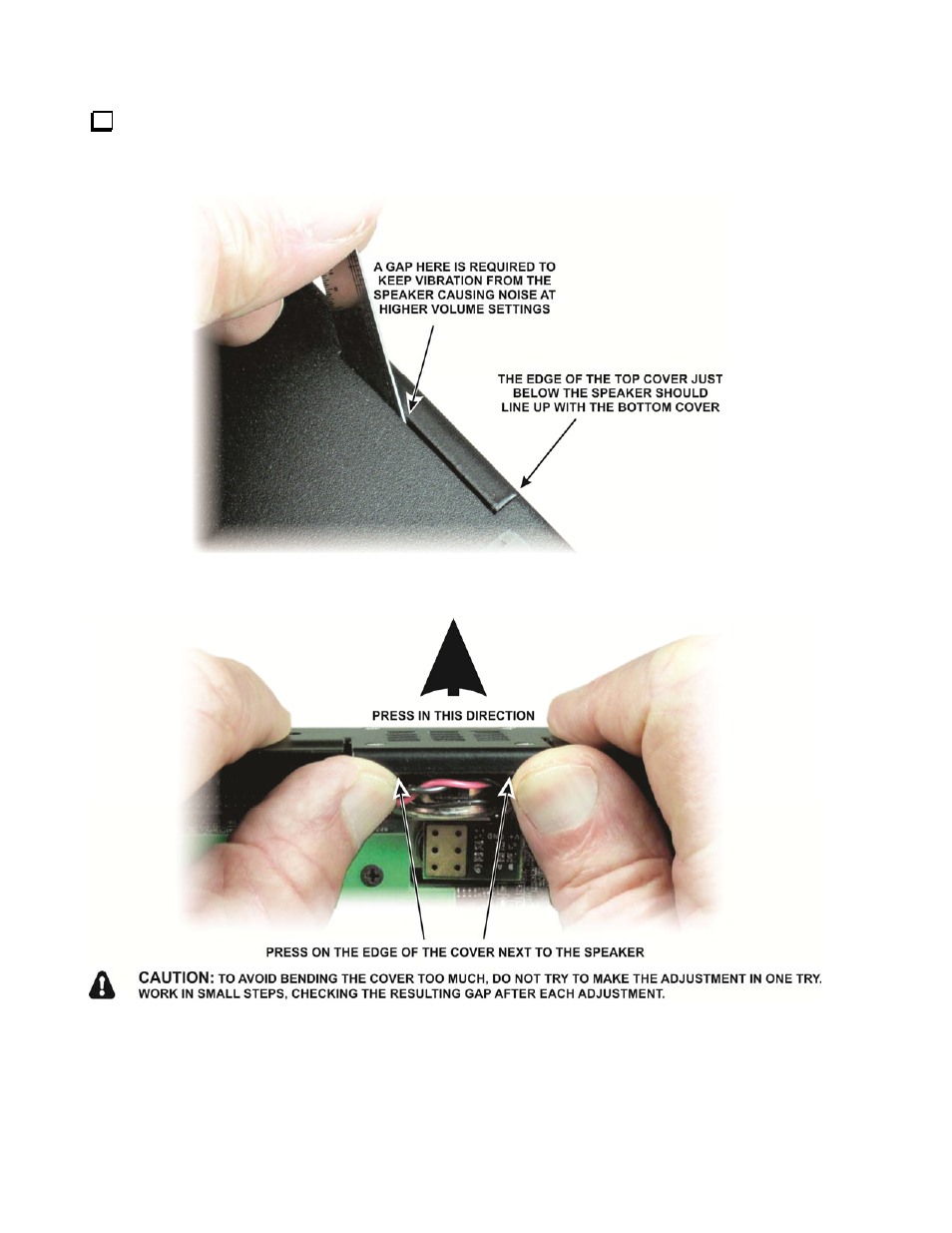

Figure 12. Checking the Cover Fit.
Figure 13. Adjusting the Top Cover Fit.
