EFCO CORPORATION 6/2012 PART NO. Y550 5
Series 5500 Outside Glazed Installation Instructions
Note: Sealant or Gasket must be applied to
the ends of each horizontal member before
assembly. (See enlargement pages 6 and 7.)
Frame assembly screws 1/4” –14
x 1 1/2” HWSMS 18-8 Typical

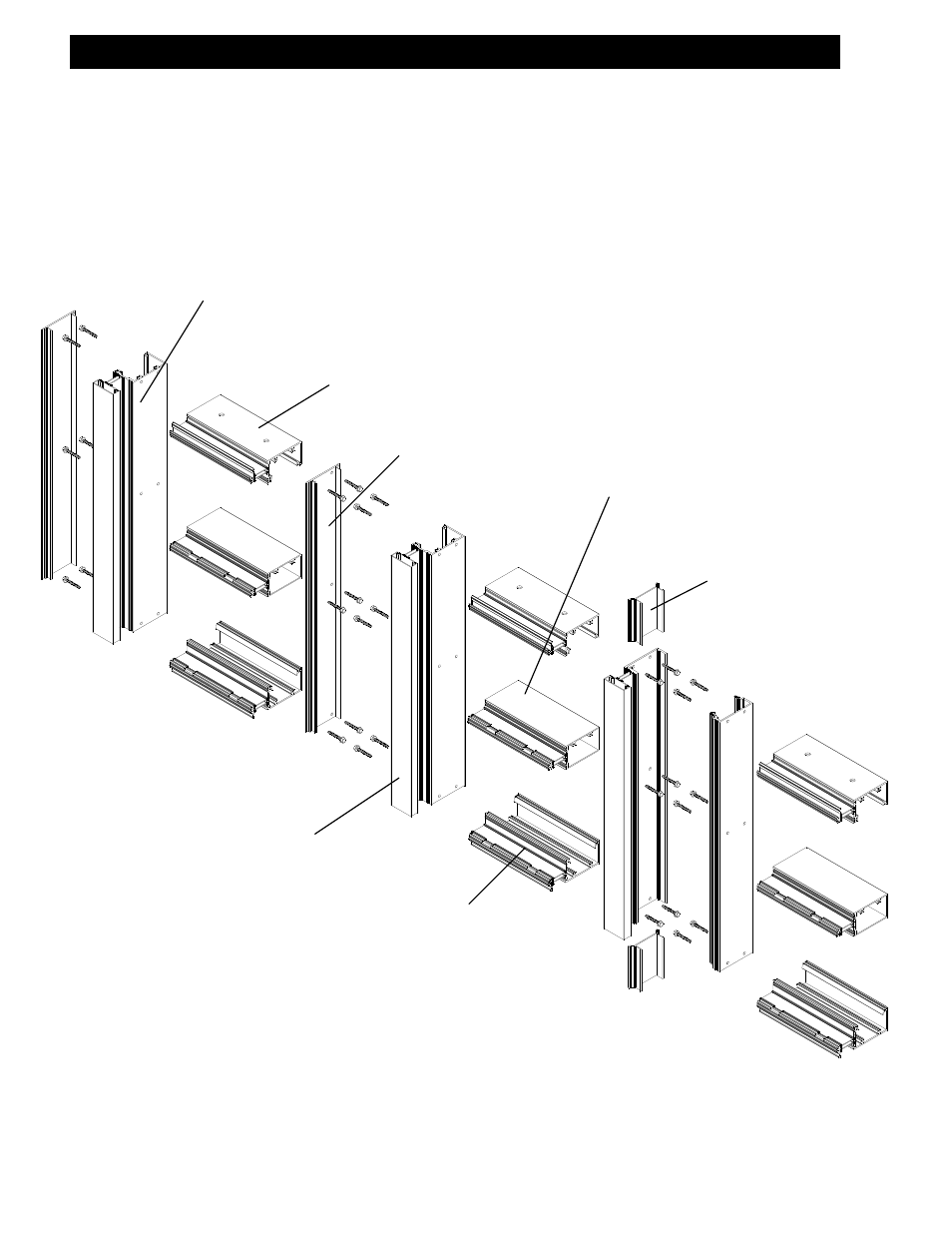

STEP #1 ASSEMBLE OUTSIDE GLAZED FRAME MEMBERS
Section II: Frame Unit Assembly & Frame Sealing
INTERMEDIATE
VERTICAL
PERIMETER O.G.
MULLION
HEAD
INTERMEDIATE
HORIZONTAL
SILL
VERTICAL FILLER
MULLION CLIP
