EFCO CORPORATION 6/2012 PART NO. Y550
Series 5500 Outside Glazed Installation Instructions
Section VII: Door Framing Installation & Anchorage

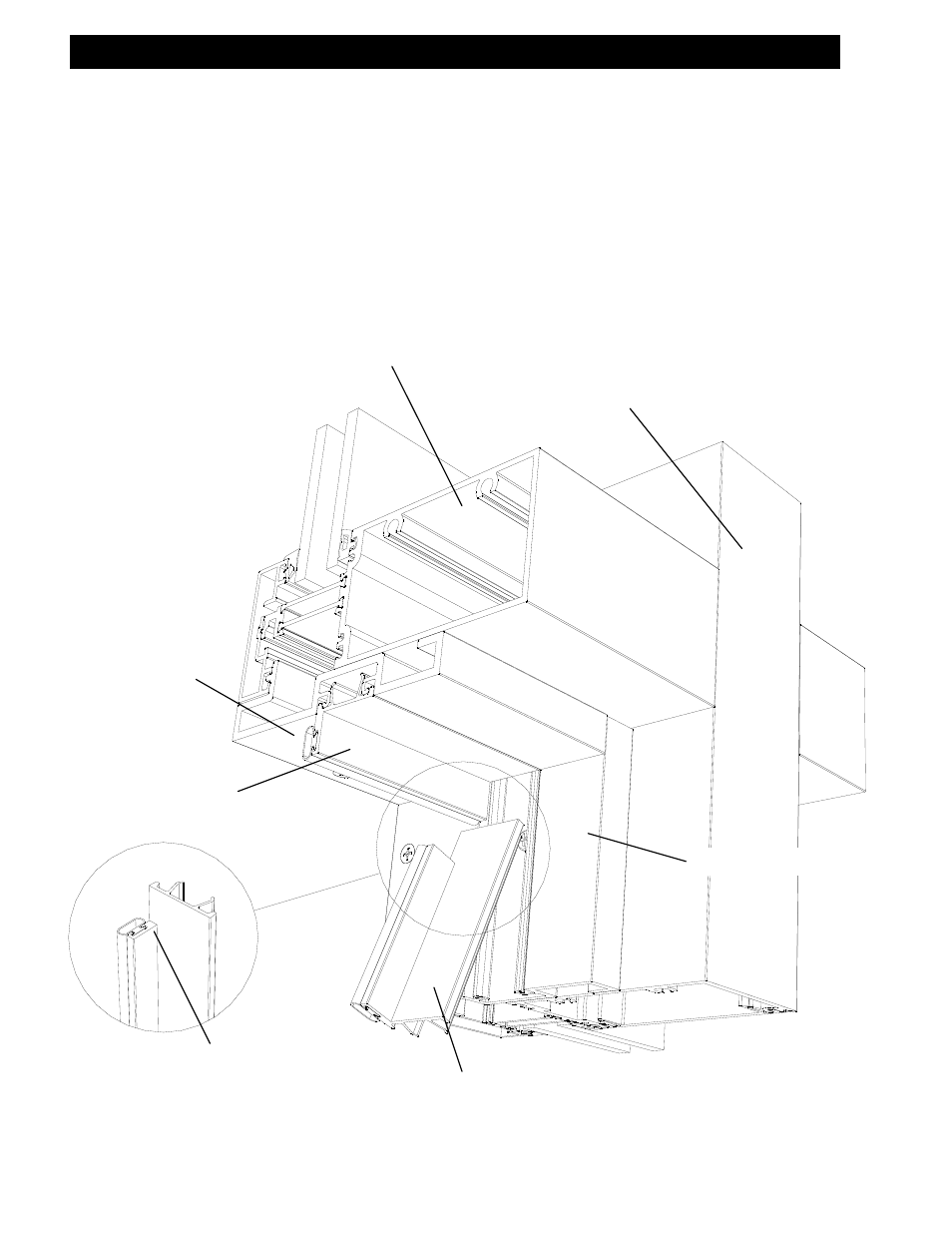

STEP #9 INSTALL DOOR STOPS
A. First, install the door stop at the head. This stop is cut the same length as the door head
subframe.
B. The vertical door stops are cut to run from the condition at the sill, to the bottom of the
door head subframe. The tops of the stops are notched as shown in the drawing inset. In-
sert the flat part of the stop that remains at the top of the door stop under the door stop at
the head as shown.
C. Snap the stop into the pocket of the subframe.
D. Install any required hardware and hang the doors per the approved shop drawings.
SUBFRAME
SUBFRAME
5/8” notch flush
as shown.
DOOR STOP
DOOR STOP
DOOR JAMB
DOOR HEADER
