Series 5500 Outside Glazed Installation Instructions

STEP #2 (Option A) APPLY HORIZONTAL 2 PIECE PRESSURE PLATE AND COVERS

Section VI: Exterior Cover & Drive-In Gasket Installation

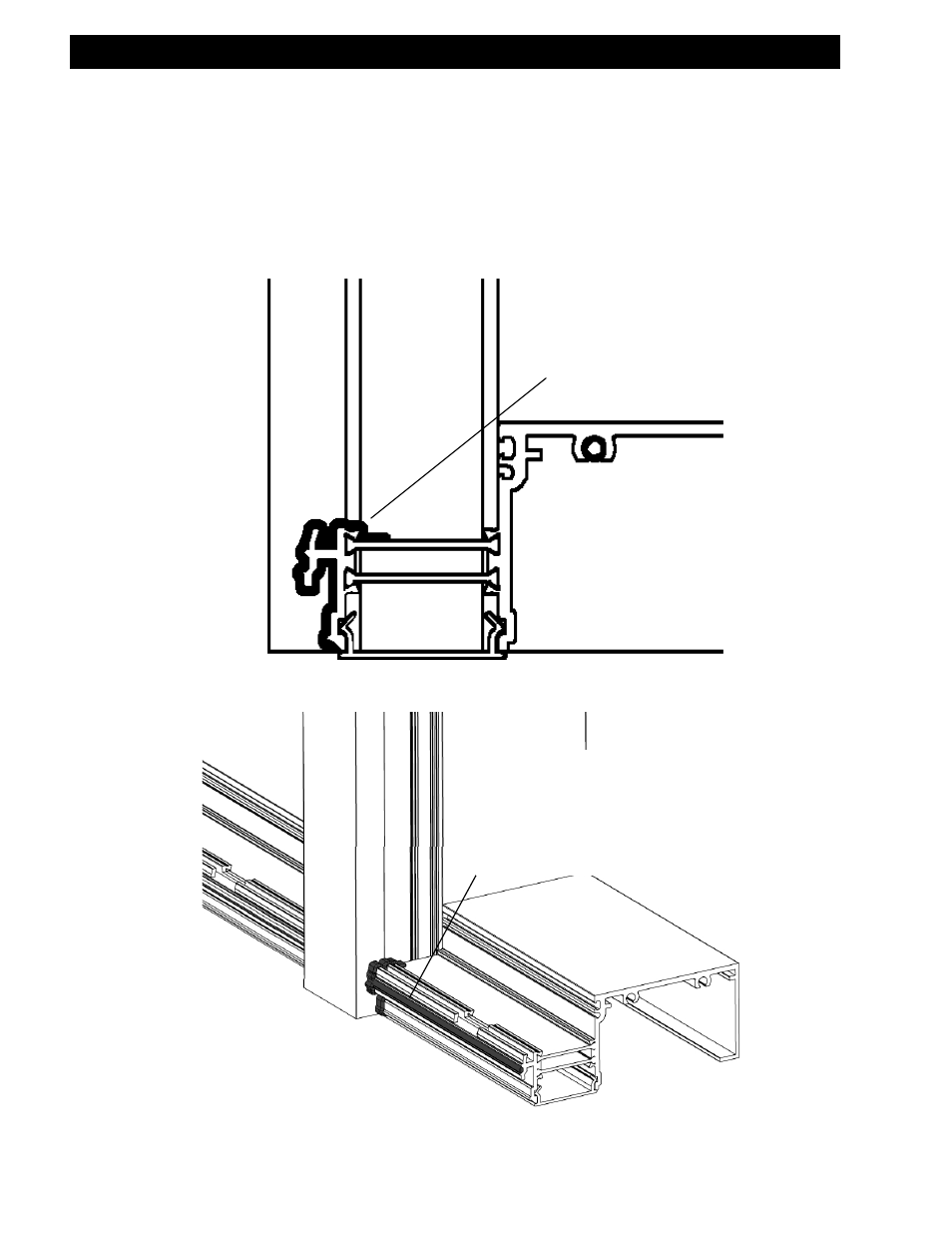

Seal horizontal to vertical

connection before installing

the cover.

Run a continuous bead of sealant

across the front of the head and sill

members prior to installing cover.

Note: This seal is not required at the

Intermediate Horizontal locations.
