Dynojet Snowmobile Dynos: Installation Guide - Manual (Page 6)

1 - 2 Document #98260100

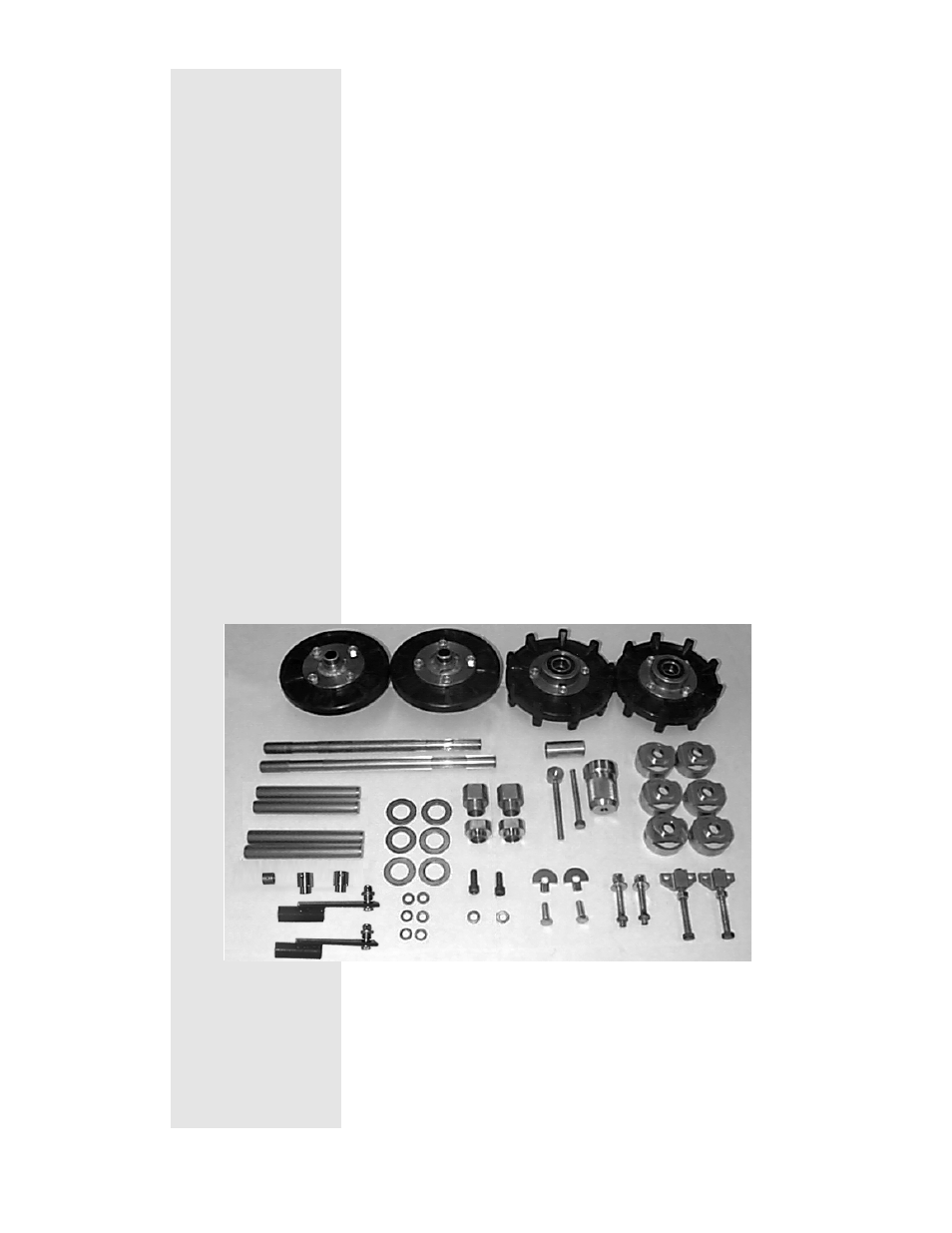

The crate will contain the following.
1 - box containing:
2 - (A) inside driver wheels and hubs
2 - (B) outside driver wheels and hubs
1 - (C) middle spacer
1 - (D) short (red) driver shaft
1 - (E) long (green) driver shaft
2 - (F) short spline shafts
2 - (G) long spline shafts
2 - (H) retainer clips and bolts
4 - (I) inside drive spacers (2 sets)
6 - (J) track tensioning guides (3 sets of 2)
1 - (K) shim pack (6 sets of 2)
1 - (L) track tensioning blocks
1 - (M) Yamaha tensioner
2 - (N) allen head bolts and lock washers
1 - (O) shaft extractor (3 pieces)
1 - (P) Yamaha middle spacer
2 - (Q) Yamaha inside drive spacers
2 - (R) Yamaha suspension adapters
1 - dynamometer guard (not shown)
1 - jack (not shown)
1 - lift handle (not shown)
1 - dynamometer
1 - bolt pack
1 - Brake Cover (not shown)
1 - Lid Extension (not shown)
A
G
B
C
D
E
F
H
M
L
I
K
J
N
O
R
Q P
