Dynojet 224: Pit Eddy Current Brake User Manual
Page 64

Model 224 Pit Eddy Current Brake Installation and User Guide
A P P E N D I X C
Installing the Adapter and Bearing—Early Model Dynos
C-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLING THE ADAPTER AND BEARING—EARLY MODEL DYNOS
Dynos missing the bearing mounting holes, shown in Figure 1-5 on page 1-10, will
need to use the adapter (P/N 79110001) to install the bearing. This includes dynos
with serial numbers between 2240088 and 2240120.
1
Orient the bearing to the adapter as shown in Figure C-1. The arrow on the
adapter plate must point up.
2
Secure the bearing to the adapter plate using two 1/2-13 x 1.25-inch flange bolts
and two 1/2-13-inch nuts. Leave the bolts loose.
Note: The bolts are included with the eddy current brake while the nuts are
included with the adapter kit.

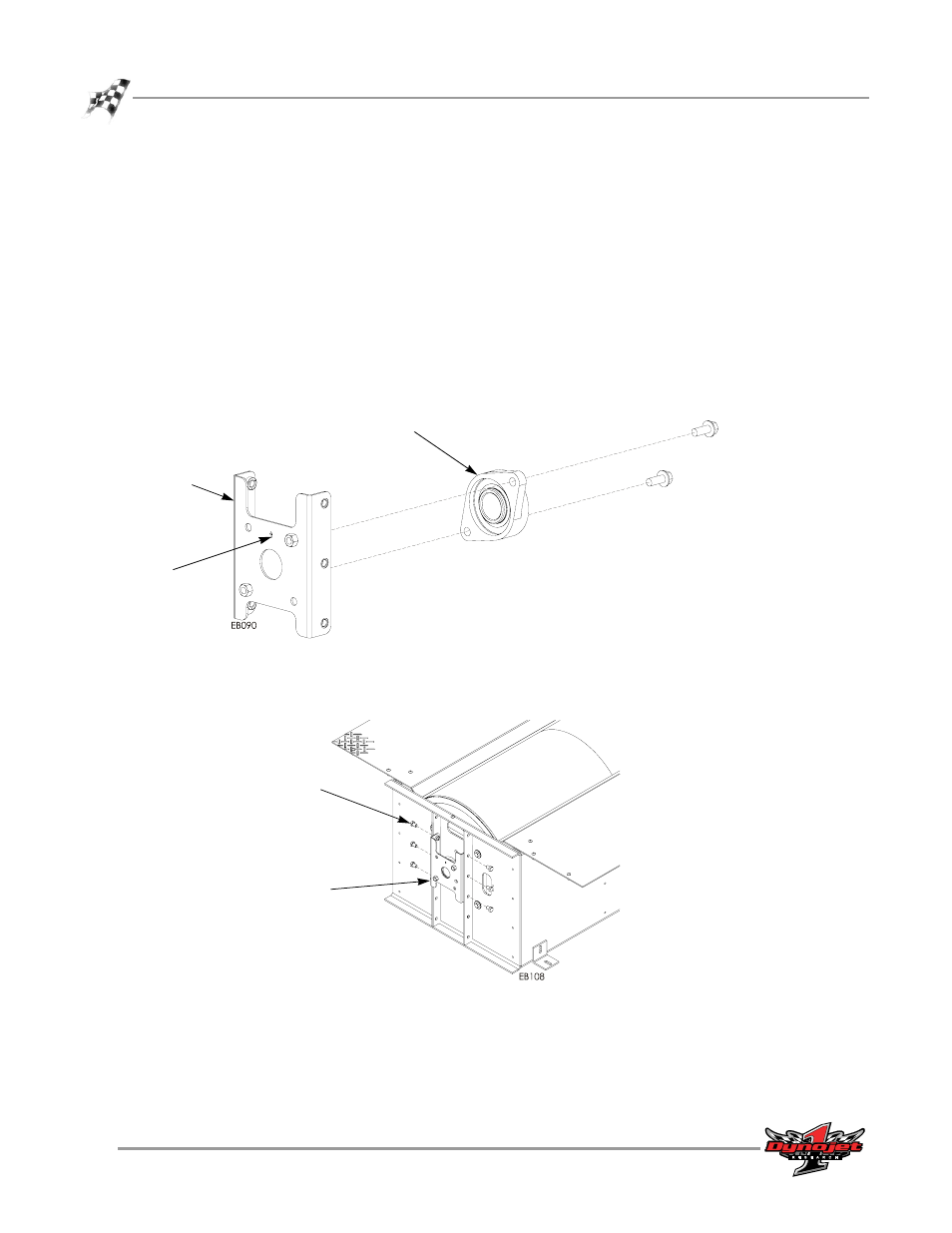

Figure C-1: Early Model Dynos—Install Bearing to Adapter
3
Secure the adapter plate to the dyno using six 1/2-13 x 3/4-inch bolts.
Figure C-2: Early Model Dynos—Install Adapter Plate
bearing
adapter plate
arrow
bolt
adapter plate
