10 Attach the tie-down straps.
Rear Wheel Drive
• Attach two tie-down straps from secure anchor points to the rear of the
vehicle. Attach additional tie-down straps from the rear of the vehicle as shown
• Attach two tie-down straps from secure anchor points to the front of the
vehicle.
Front Wheel Drive
• Attach two tie-down straps from secure anchor points to the rear of the
vehicle.
• Attach two tie-down straps from secure anchor points to the front of the
vehicle. Attach additional tie-down straps across the front of the vehicle to
form a crisscross.
Four Wheel (All Wheel) Drive
• Attach two tie-down straps from secure anchor points to the rear of the
vehicle. If the vehicle is equipped with a rear steering system, attach additional
tie-down straps across the rear of the vehicle to form a crisscross.
• Attach two tie-down straps from secure anchor points to the front of the
vehicle. Attach additional tie-down straps across the front of the vehicle to
form a crisscross.

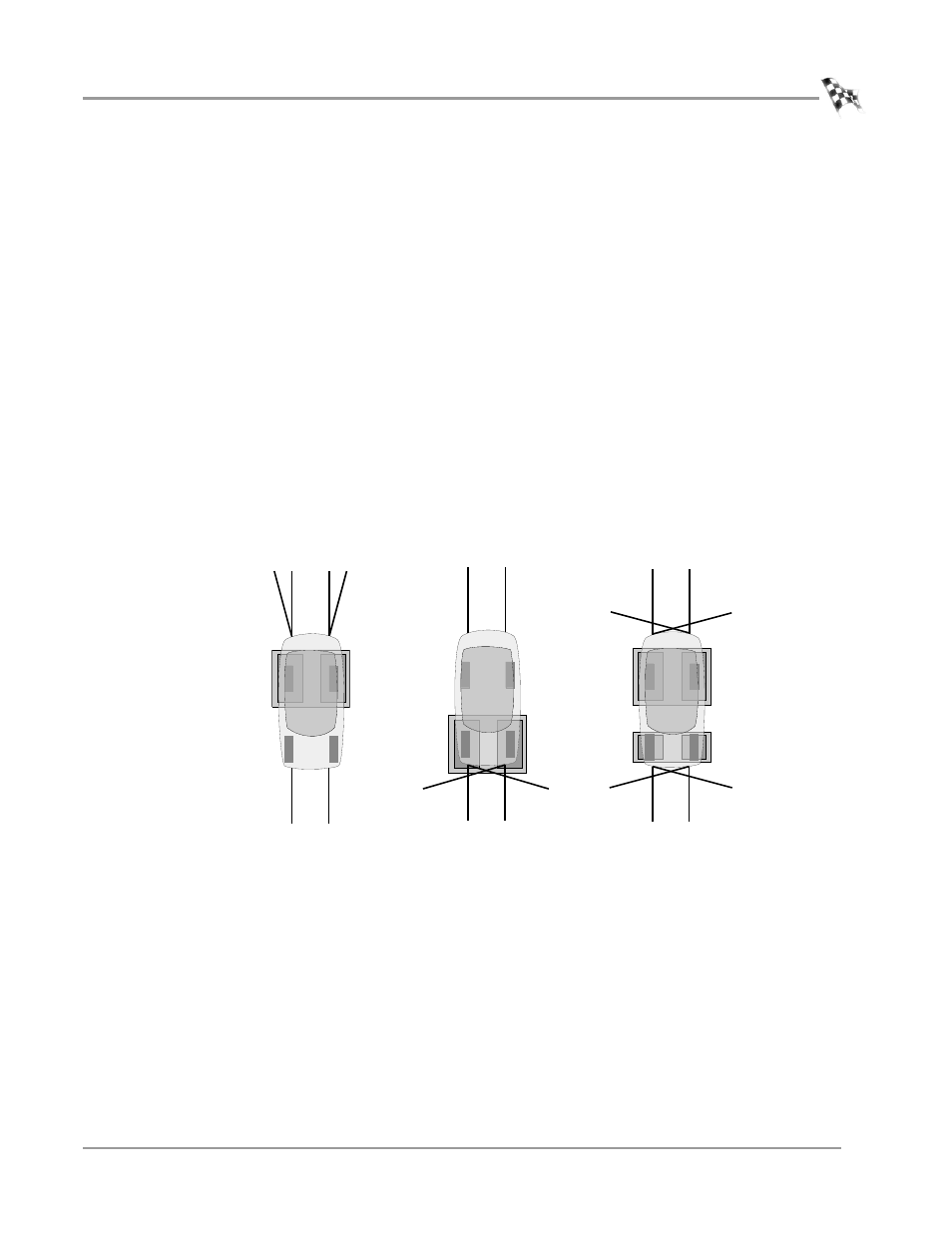

Figure 3-2: Attach Tie-down Straps
rear wheel drive
front wheel drive
four wheel drive
