Dynojet 224: Pit Eddy Current Brake User Manual
Page 18

Model 224 Pit Eddy Current Brake Installation and User Guide
C H A P T E R 1
Eddy Current Brake Installation
1-14
8
Line up the eddy current brake yoke with the driveline assembly.
9
Slide the brake frame towards the dyno frame until they touch. Make sure the
brake yoke is aligned with the driveline.
10 Secure the yoke to the driveline assembly using the four bolts removed earlier.
Torque the bolts to 70 ft.-lbs.
11 Secure the brake frame to the dyno using eight 3/8 x 1-inch bolts and
eight 5/16-inch hardened flat washers. Not all of the bolts and washers are visible
from this view.
12 Torque the brake yoke set screws to 25 ft.-lbs.

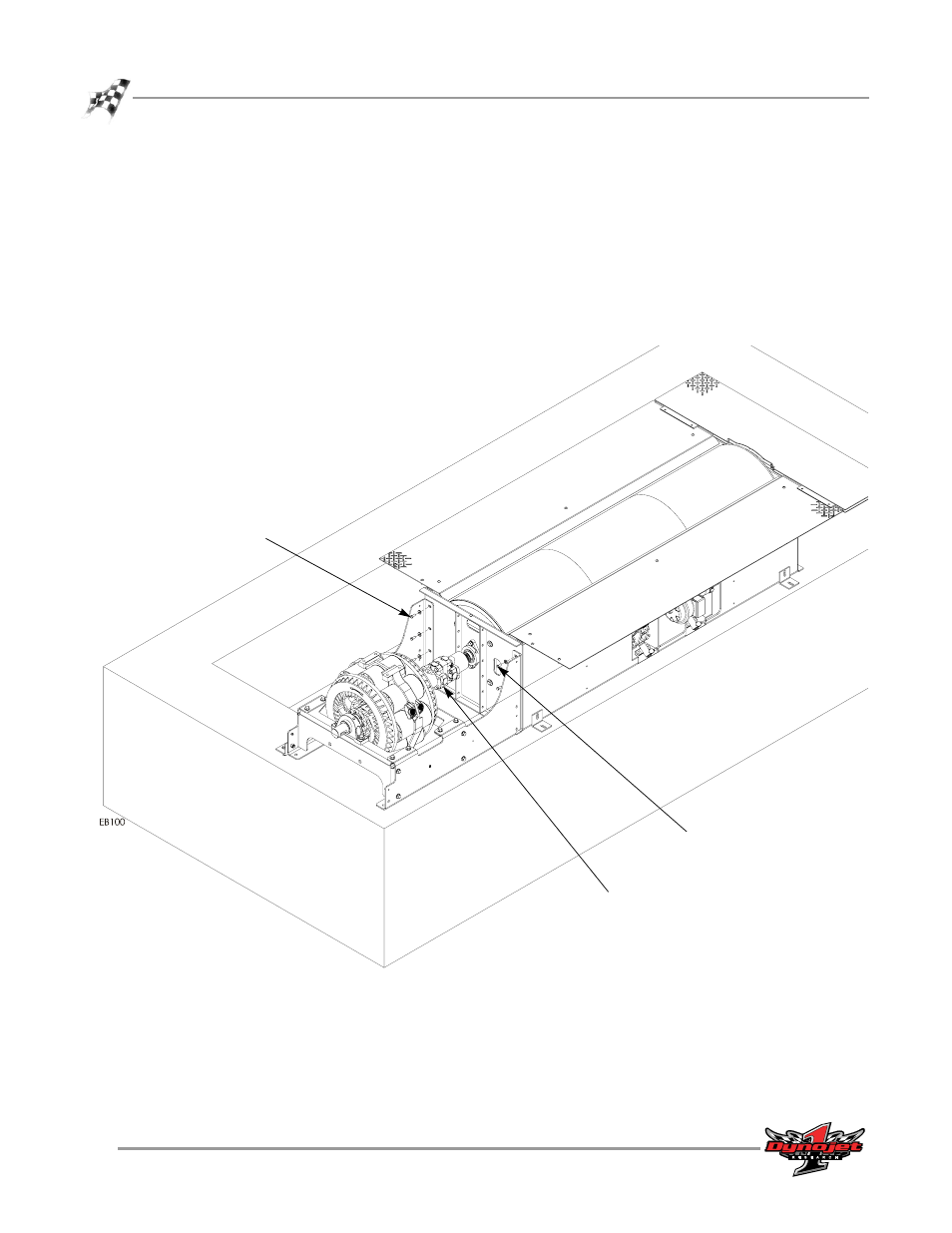

Figure 1-10: Secure the Brake Frame to the Dyno
bolts and washers
(not all visible)
bolts and washers
(not all visible)
brake yoke
