7 Prophet 12 Module Operation Manual Connections
Main/A Outputs and B Outputs— Unbalanced, ¼″ audio outputs. The Main
outputs are a mix of a program’s A and B layers. When plugs are inserted into the
B outputs, only layer A is available from the Main outputs and layer B is routed
to the B outputs. See Layers, Split, and Stack on page 44 for more information.
The Prophet 12 sounds great in stereo, but can be switched to mono. See “Mono/
Stereo” in Global Settings on page 9.
Power Switch— Turns the Prophet 12 On of Off.
Headphones— A ¼″ stereo headphone jack.

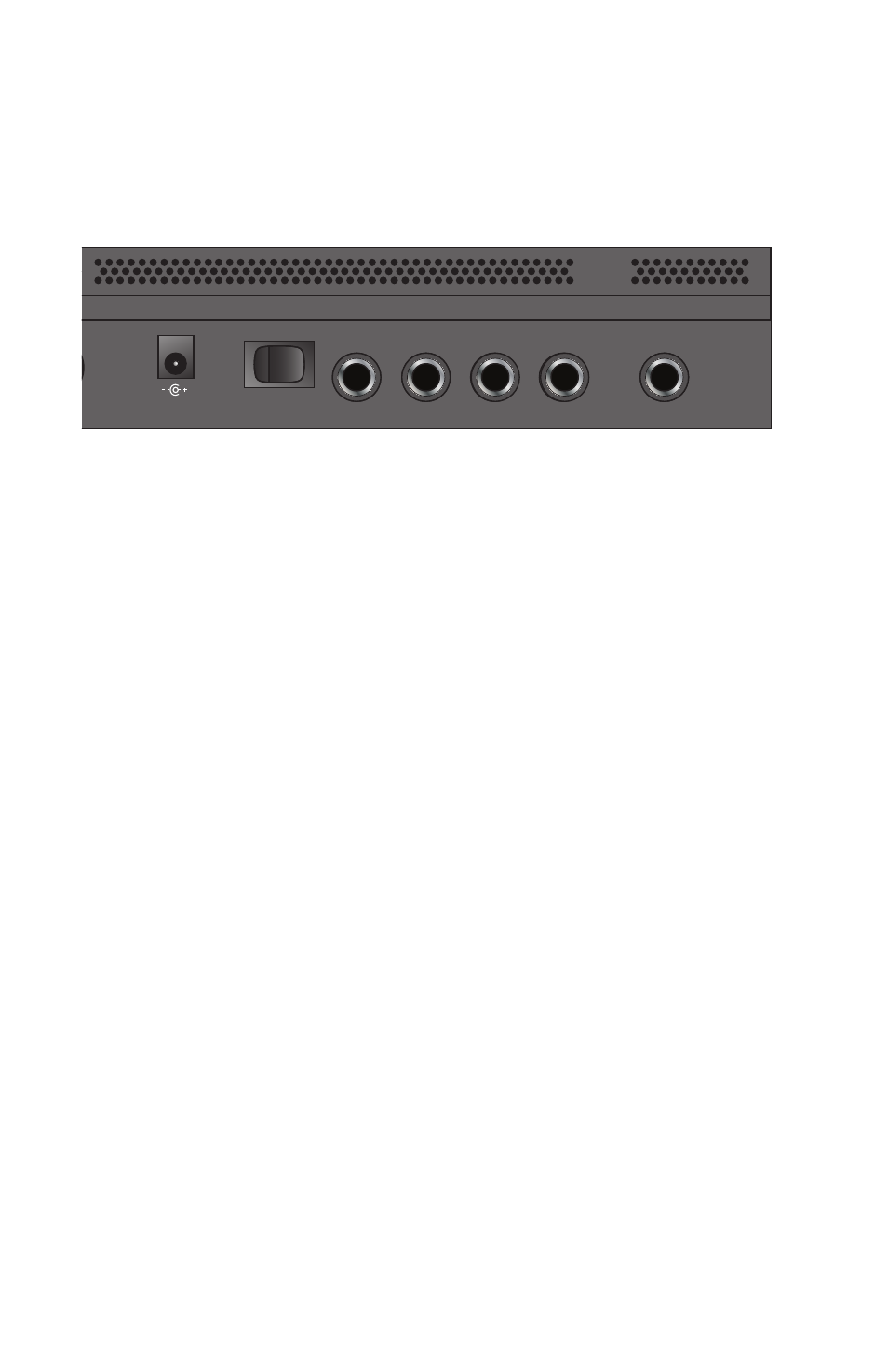

USB Sustain Pedal 1 Pedal 2 MIDI In MIDI Out MIDI Thru 15VDC, 1400 mA On / Off Right Left Right Left
Main / A Outputs B Outputs
Headphones
