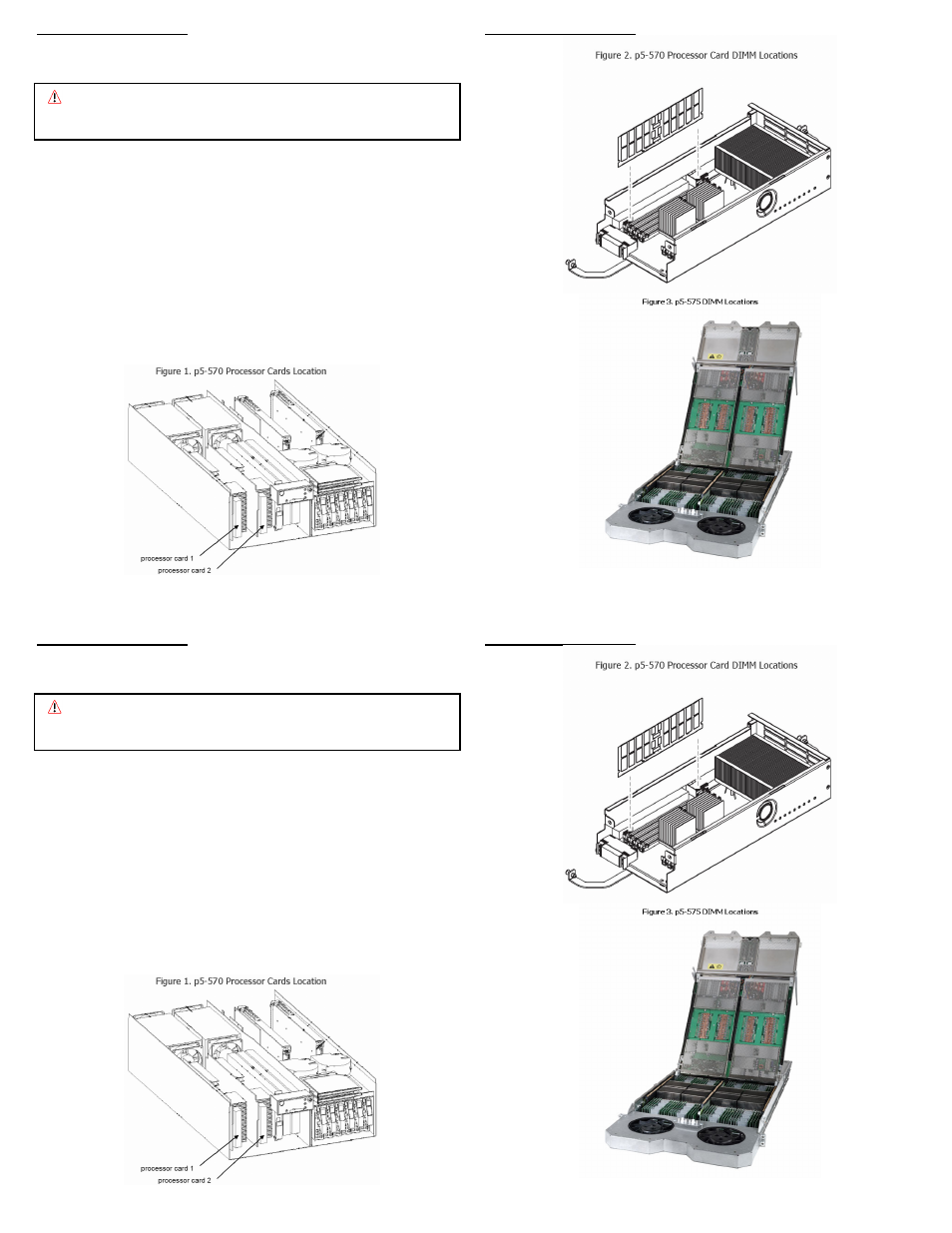

MEMORY INSTALLATION
MEMORY INSTALLATION
Note: Refer to your system owner’s manual for detailed instructions.
Caution: System parts are sensitive to electrostatic discharge and can be
damaged by the static charge you may carry. You should wear a
grounded wrist strap.
1.
Shut down the system. Remove panels, doors, cables, etc. per your
owner’s manual to gain access to the memory slots.
2.
Locate the four DIMM slots in the bank you wish to populate.
3.
Open both ejector levers on each slot.
4.
Position a module over the slot so that the alignment notches on the
DIMM match the notches on the connector.
5.
Press firmly on both top ends of the module, applying equal pressure
until the module snaps into place. Lock the module in the socket by
pushing up on the ejector levers until they are in their upright position.
6.
Continue to install the remaining memory modules until you have filled
the bank with four identical modules. Repeat the above steps for each
bank of memory you wish to install.
7.
Reinstall the cables, panels, etc., power up the system and reboot.
8.
Ensure the system recognizes the new memory configuration.
