DRSM8000
Installation Manual
06711 B 1of 2
This manual describes how to install Dataram memory… …into these Sun Microsystems systems
Dataram Memory Upgrade
DRSM8000/64GB
DRSM8000/128GB
DRSM8000/64GB
DRSM8000/128GB
Sun Memory Upgrade
SEMX2C1Z
SEMX2D1Z
SEMX2C1Z
SEMX2D1Z
SPARC Enterprise M8000
SPARC Enterprise M9000-32 and SPARC Enterprise M9000-64
System and Memory Configuration Overview
The SPARC Enterprise M8000 can have from one to four CPU/Memory Boards (CMU’s). Each CMU contains thirty-two DIMM slots supporting up to
256GB of Dataram memory. If all available memory slots are populated with 8GB DIMMs the systems holds a total of 1TB of Dataram memory.
The SPARC Enterprise M9000 has a 32 processor and 64 processor version. The M9000-32 can have from one to eight CPU/Memory Boards
(CMU’s). Each CMU contains thirty-two DIMM slots supporting up to 256GB of Dataram memory. If all available memory slots are populated with
8GB DIMMs the systems holds a total of 2TB of Dataram memory. The M9000-64 can have from one to sixteen CMU’s. Each CMU contains thirty-
two DIMM slots supporting up to 256GB of Dataram memory. If all available memory slots are populated with 8GB DIMMs the systems holds a total
of 4TB of Dataram memory.
DIMMs on the CMU’s are divided into two groups (A&B). DIMMs in group A must be the same or larger capacity than the DIMMs in group B. Group
B can have the same number of DIMMs as group A, or it can have zero DIMMs. Memory modules must be identical in each group thoughout all
CMU’s. Memory must be added 16 DIMMs at a time.

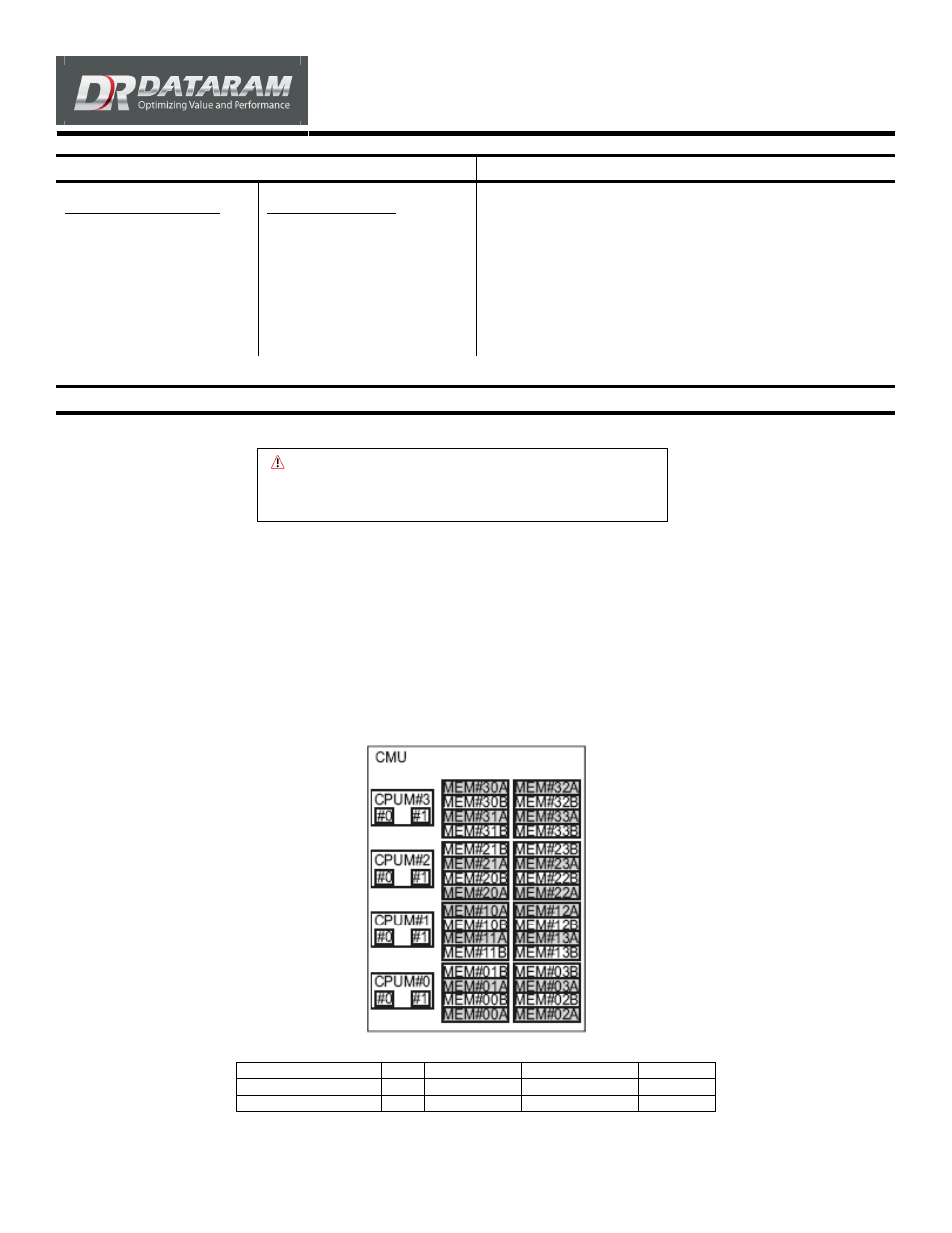

(Figure 1)
Dataram offers the following memory options, providing up to 1TB of memory for the M8000 and 4TB of memory for the M9000.
TYPE SIZE DESCRIPTION DATARAM SUN
DDR2-667 4GB 16 x 4GB 2R DRSM8000/64GB SEMX2C1Z
DDR2-667 8GB 16 x 8GB 2R DRSM8000/128GB SEMX2D1Z
Caution: Refer to your system owner’s manual for detailed
instructions. System parts are sensitive to electrostatic
discharge and can be damaged by the static charge
you may carry. You should wear a grounded wrist strap.
