84K-GP 3/07

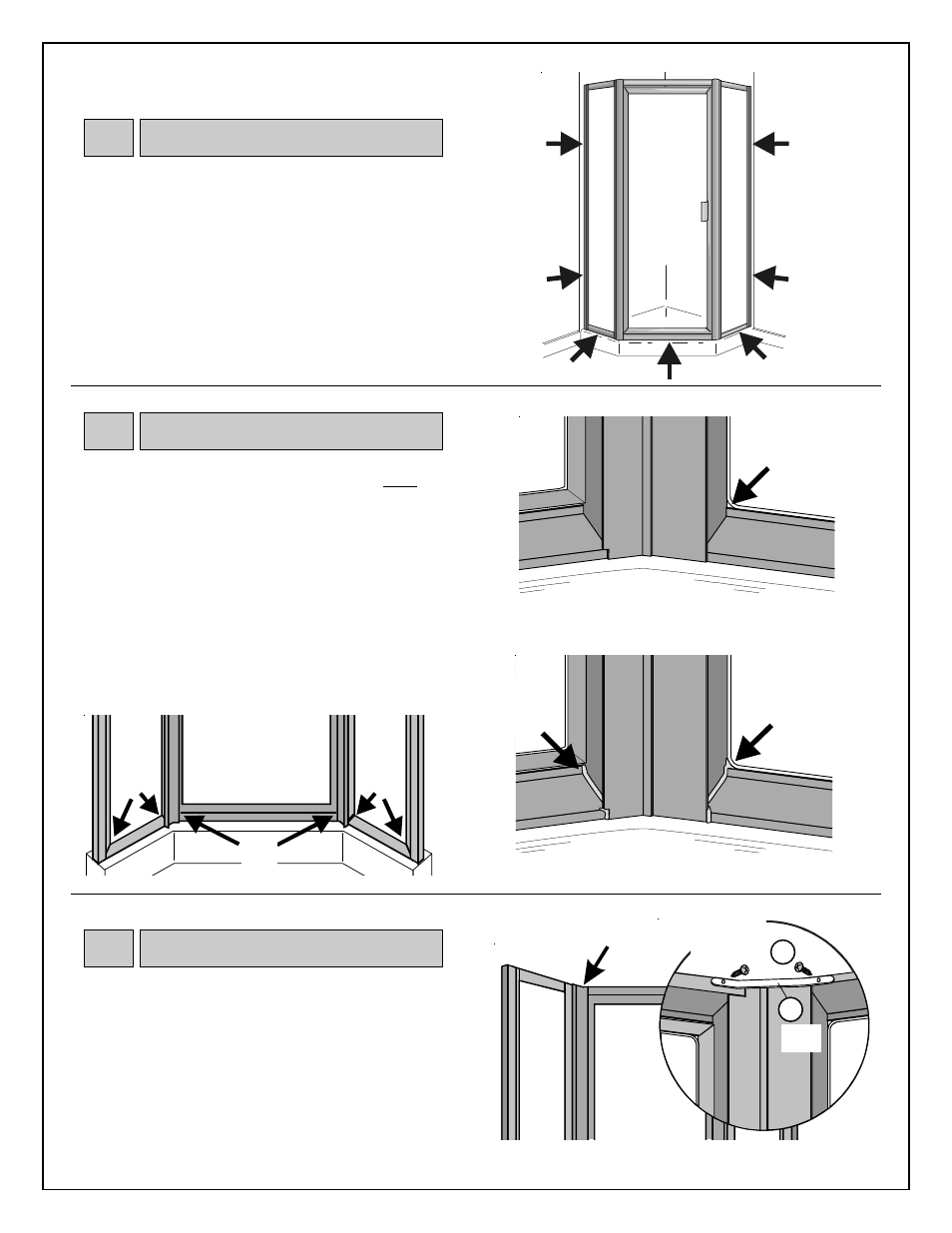

The following areas along bottom of enclosure must be
caulked, from inside of shower, for a watertight seal.
On side panels, locate area in bottom corners where
vinyl glazing and metal meet
(1). Due to the design of
this enclosure, a small gap may be present between
glazing and metal at corner. Caulk gap, filling the void
with caulk and continuing bead along joint of vertical and
horizontal metal toward inside of shower to curb.
On metal below door panel, locate corners where
horizontal and vertical metal meet
(2). Caulk joint,
continuing bead toward inside of shower to curb.
INSIDE OF SHOWER
Caulk joint,
continuing bead
to threshold.
Side
Panel
Door
Panel
Side
Panel
INSIDE OF SHOWER
Locate gap in
corner of side
panel where
glazing and metal
meet.
Door
Panel
Caulk gap,
continuing bead
along joint to
threshold.
7b Caulk
Door Panel
Caulk
Caulk
Caulk
(1)
(2)
(1)
(2)
(1)
(1)
Corner brace (L) may be mounted to each inside
corner, at top of unit, for additional stability.
Position brace so that top of brace is flush with top of
unit frame. Brace will center itself left to right in corner.
Holding brace securely in place, mount to unit frame
using 8A x 5/8" pan head self-drilling screws (M).
Corner
Brace
8A x 5/8" Pan
Head Self-
Drilling Screw
Position brace flush
with top of unit frame
8 Corner Brace
(L) M
INSIDE OF SHOWER
L
The use of a caulking compound will assure a water-
tight seal of your enclosure. Apply caulk along outside
edge of enclosure where metal and shower meet,
especially where sill (bottom of enclosure) meets base.
If desired, caulk inside of enclosure where jambs meet
walls.
Caulk 7a Caulk
OUTSIDE OF
SHOWER
Caulk
Caulk
