Side panels – Coral Industries 6000 Neo-Angle Swing Door (EZ Up) - 84K User Manual
Page 4
84K-GP 3/07
Door section (B) and side panels (A) will be
assembled before positioning unit on base.
Determine whether door should swing to right
or left. For safety purposes, door should be
installed to swing out from shower.

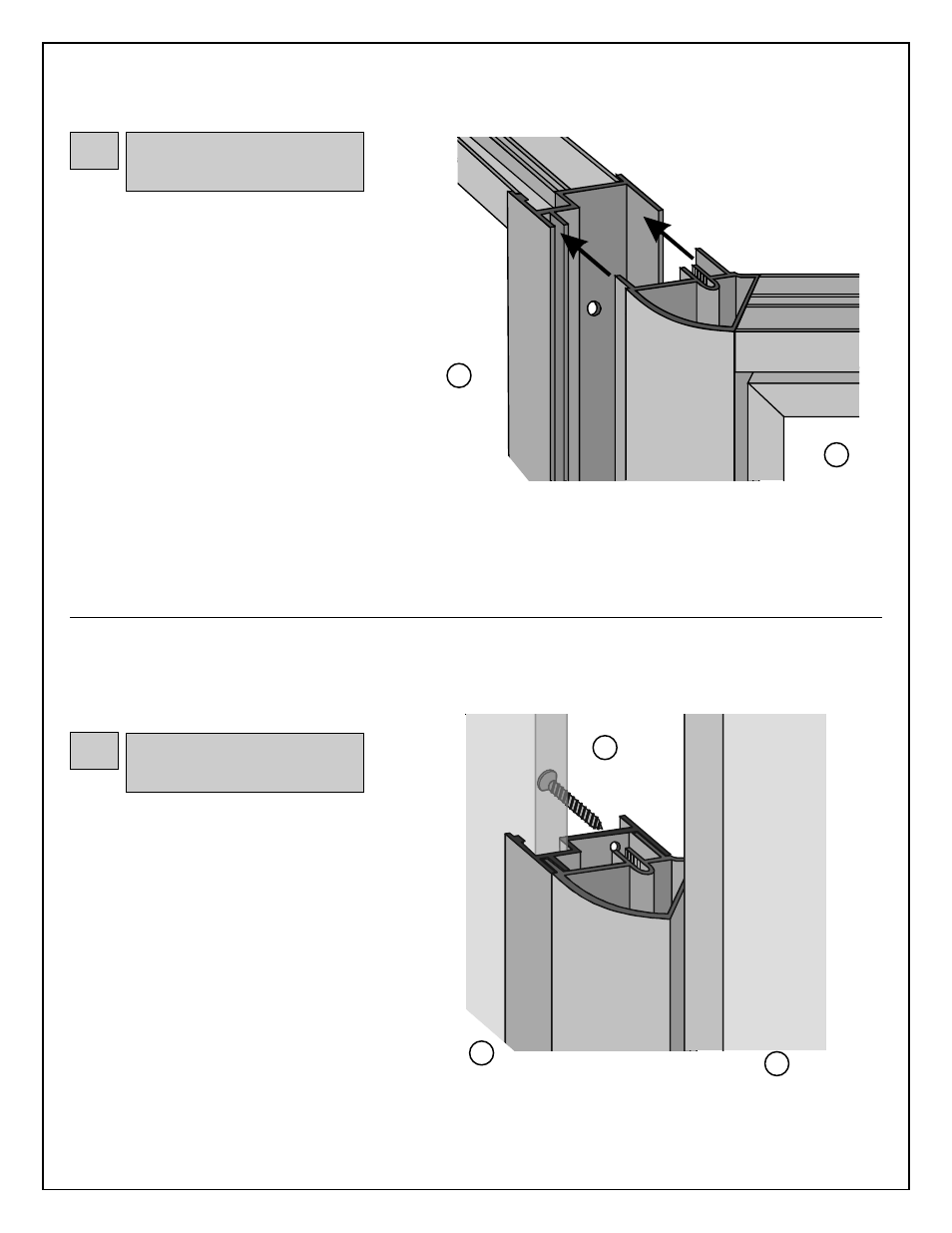

Slide door panel, with corner post attached,
onto side panel by placing short front leg of
corner post into small slot on side panel.
Long back leg of corner post fits inside back
leg of side panel.
Repeat for opposite side.
On inside of shower, secure corner post to
side channel of panel through pre-punched
holes in side channel using 8A x 3/4" flat
head screws (H).
Repeat for opposite side.
8A x 3/4"
Flat Head
Screw
OUTSIDE OF SHOWER
B
A
Side
Panel
Corner Post
OUTSIDE OF SHOWER
Back leg of Corner Post fits
inside back leg of Side Panel
A
Corner Post
Door Panel
(attached to
Corner Post)
Short front leg
o f
Corner Post
fits into small
slot on
Side Panel
B
Side
Panel
H
1a
Door Section
(B)
Side Panels
(A)
1b
Door Section
(B)
Side Panels
(A)
Door Panel
(attached to Corner Post)
