84K-GP 3/07
Adjust for even reveal of curb
surface across door area.
Adjust for even
reveal of curb
surface on left
and right side
panels.
Side
Panel
Side
Panel
Door Panel
Adjust unit on curb until there is an even reveal
of curb surface across front (door area) of unit.
Adjust so that the reveal of curb surface on left
and right side panel areas is even. Unit may
be moved out from corner up to 5/8" for best
positioning on curb. If unit is adjusted out from
corner, slide jambs out from side panels until
they are flush against wall.
Once positioning of unit on curb is satisfactory,
check alignment of jambs on wall using a level.
Lightly mark wall on each side where jambs
meet wall.
Remove unit from base. Remove jambs from
side panels.
Add jambs (C) to unit by sliding jambs into
place over side panels.
Trial fit unit on base to determine correct
placement on curb. With door fully open, lift
unit by header, placing bottom of unit on curb of
base. Slide unit toward corner until jambs are
flush against wall.
If necessary, file sharp corner on back of jambs
to fit contour of your unit.
Curb of Base

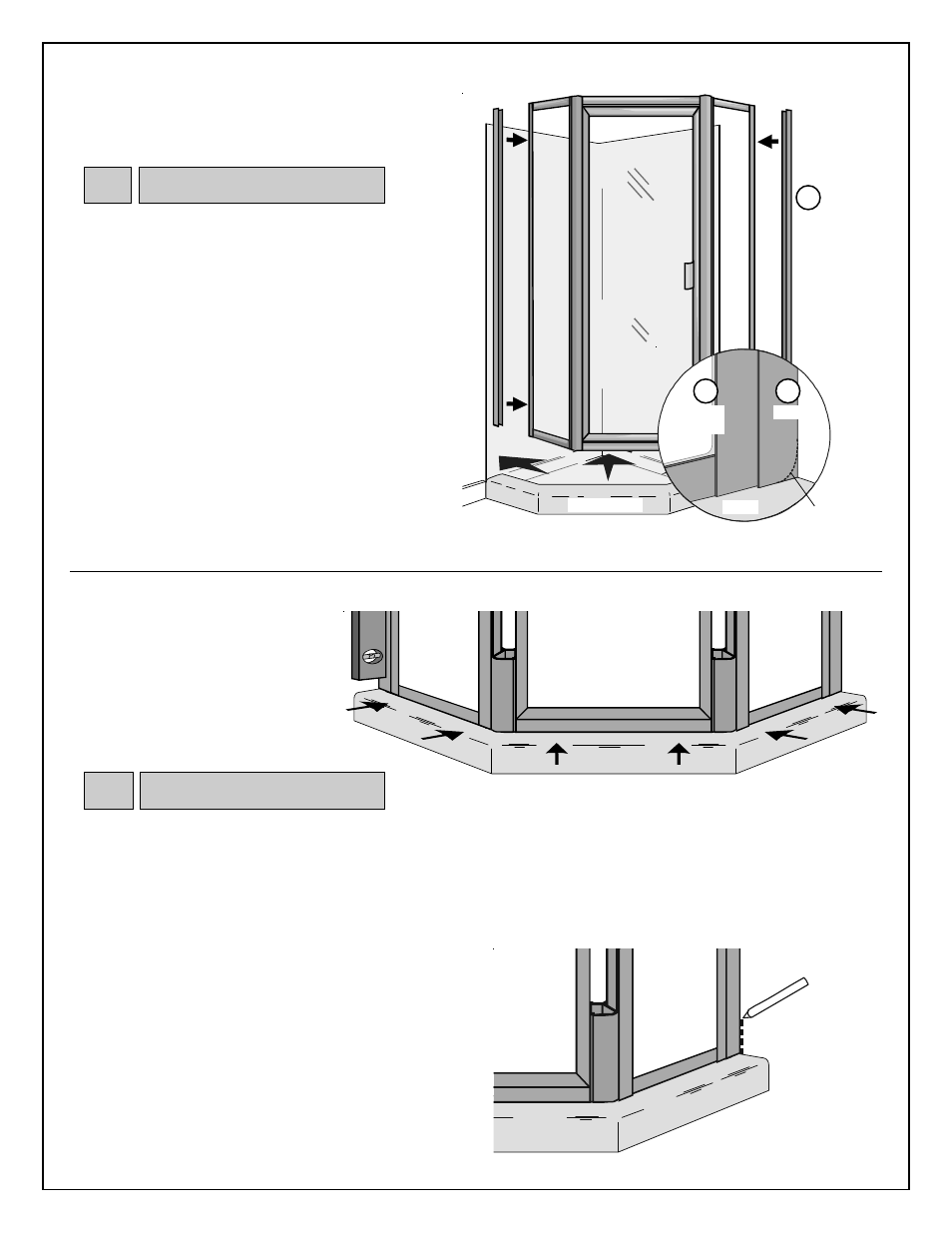

2a Placement of Unit on Base
2b Placement of Unit on Base
If necessary,
file to fit contour
of your unit.
Jamb
C
Unit assembled
Trial fit unit
on curb.
After adjustment,
mark where jamb
meets wall on
each side of unit.
Jamb
C
Curb
Side
Panel
A
OUTSIDE OF SHOWER
Level
