84K-GP 3/07
When anchors (J) are used holes should be
drilled using 3/16" drill bit. (Use masonry bit
for tile.)
OUTSIDE OF SHOWER
C Jamb
Position jamb
with outside
edge on line and
bottom resting
on curb.

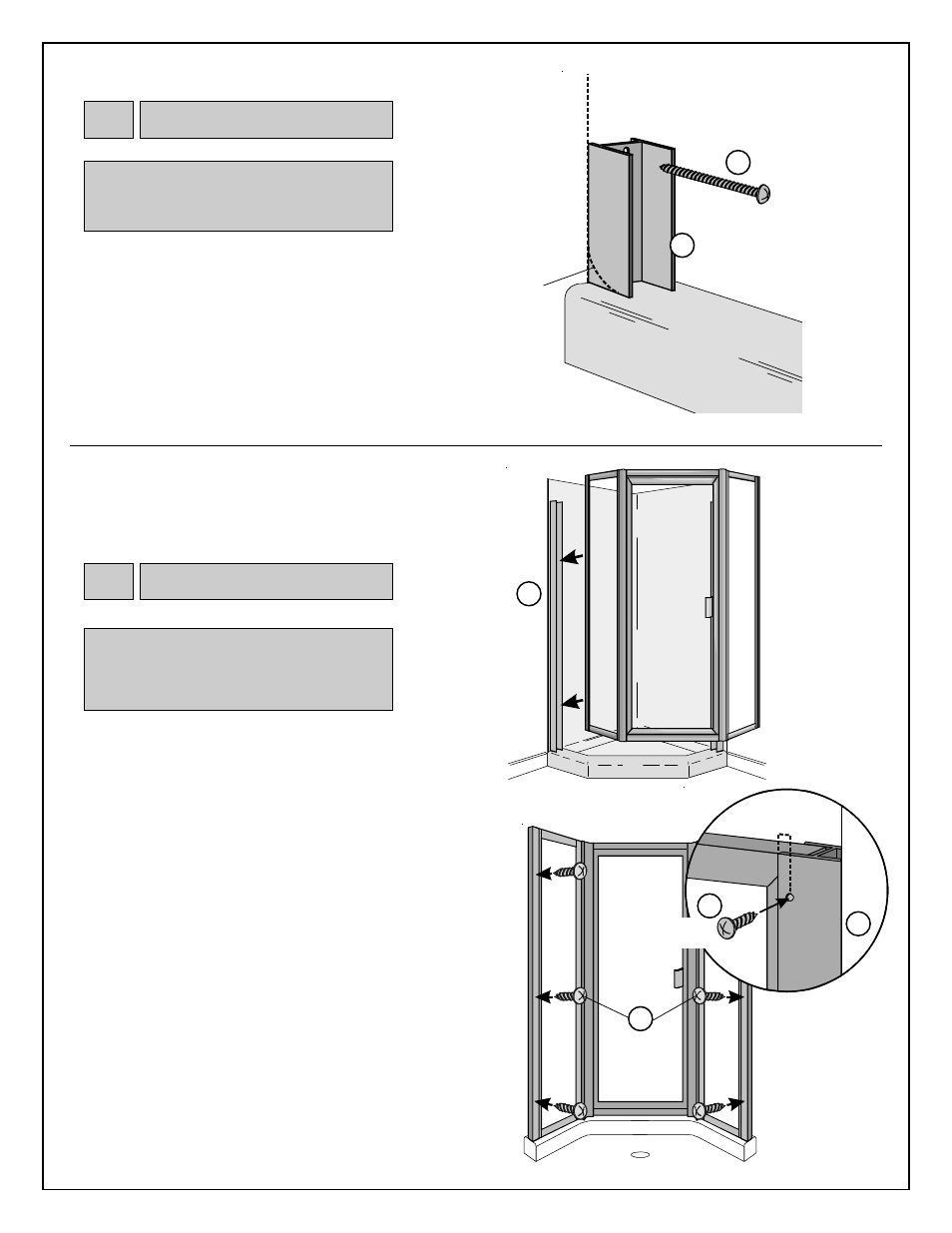

Reposition jambs on wall, with bottom resting
on curb and edge aligned with lines marked in
Step 2b.
Mark wall through prepunched holes. Remove
jamb and drill using 1/8" drill bit.
Reposition jambs and secure using 8A x 1 1/4"
pan head screws (I).
Reposition unit on curb, sliding side panels into
mounted wall jambs.
Adjustment for out-of-plumb conditions can be
made between wall jambs and side panels.
After desired adjustments, secure side panels
in wall jambs as follows.
From inside of shower, drill three evenly spaced
holes through jamb into side panels using 1/8"
drill bit. Horizontal placement of holes should
be 1/4" in from outside edge of jamb leg.
Secure side panels to jambs using 8A x 3/8"
truss head screws (G).
Jamb
C
File to fit
contour of
your unit.
Reposition unit
on base, slide
side panels into
wall jambs
When securing side panels, do not drill
through front side of panel or hit glass
with drill bit. Glass is seated
approximately 1/2" into channel.
INSIDE
OF SHOWER
8A x 3/8"
Truss Head
Screw
8A x 3/8"
Truss Head Screw
Jamb
C
1/4"
G
3 Jamb
(C)
4 Securing Unit
I
8A x 1 1/4" Pan
Head Screws
G
OUTSIDE
OF SHOWER
