Coral Industries Style Swing Door/ILP (1/4 Frameless) - 670 - Manual

670 7/09

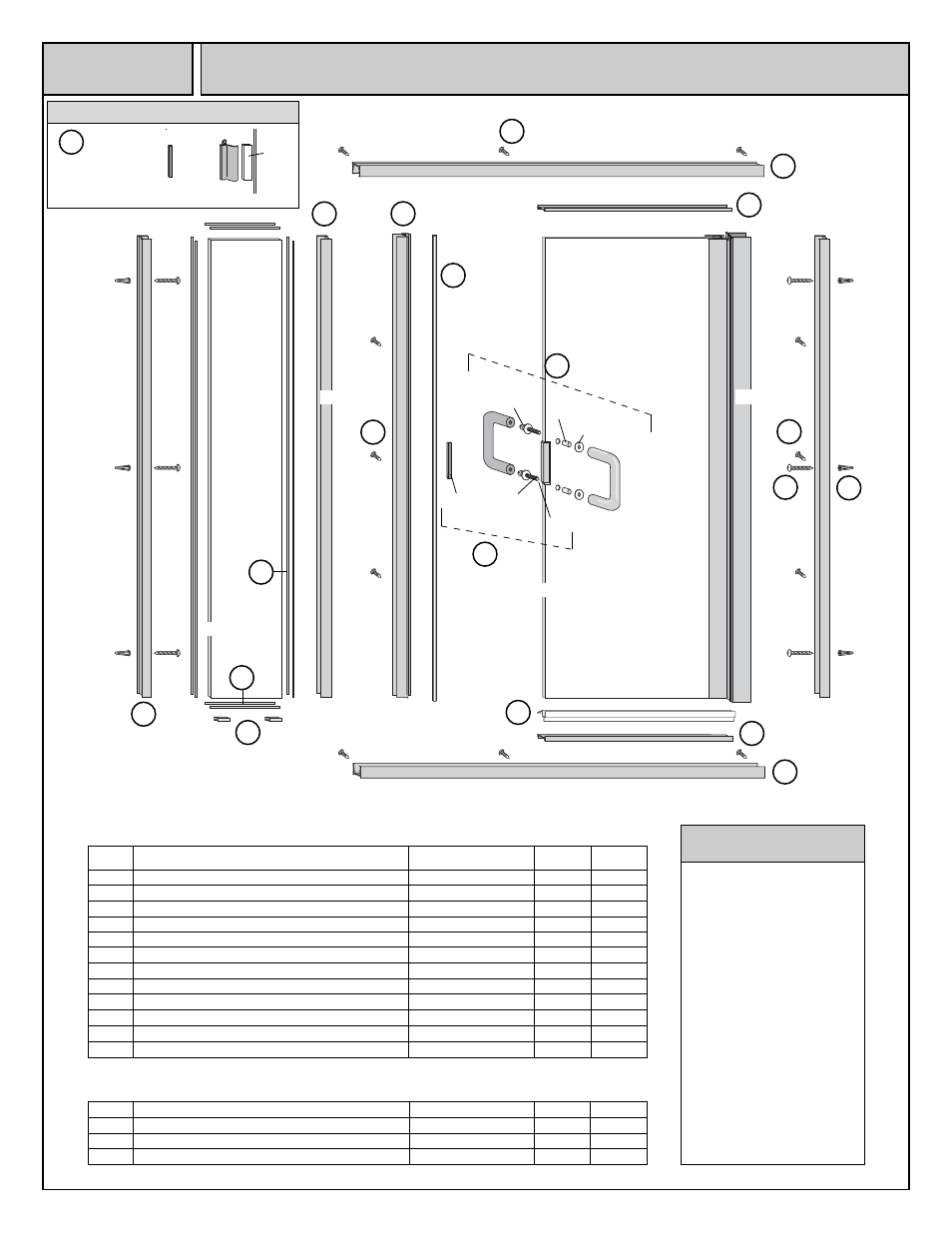

670 Freestyle/Style • Door
with
In-Line Panel
OUTSIDE OF SHOWER
KEY DESCRIPTION PART Freestyle Style
A SILL (WITH WEEP HOLES) A782 1 1
B JAMB A083 3 3
C HEADER A781 1 1
D HEADER / SILL INSERT A716 2 2
E MAGNETIC DOOR STOP A989 1 1
F VINYL DOOR SEAL V678 1 1
G VINYL DOOR SWEEP V001 1 1
Y HORIZONTAL VINYL GLAZING VK188H / VK250H 4 4
Z VERTICAL VINYL GLAZING VK188V / VK250V 4 4
J PUSH / PULL HANDLE KIT HTG6 1
K MAGNETIC CATCH KIT HKMAGCH 1
M MAGNETIC HANDLE KIT HK87 1
L 8A X 1 1/4 PAN HEAD SCREW H480 6 6
N 8A X 3/8 PAN HEAD S.DRILLING SCREW H900 12 12
H ANCHORS H002 8 8
X SETTING BLOCK HB5195 2 2
FRAME PACKAGE PARTS
HARDWARE PARTS
TOOLS NEEDED
1/8" Drill Bit
3/16" Drill Bit
(3/16" Masonry Bit for
Ceramic Tile)
Scratch Awl
Tape Measure
Hacksaw
Phillips Screw Driver
Caulking Compound
File
Drill
Level
Masking Tape
Rubber Mallet
B
A
G
A782
SILL
V001
VINYL DOOR SWEEP
A083
JAMB
H480
PAN
HEAD
SCREW
H002
ANCHOR
V678
VINYL DOOR
SEAL
HTG6
PUSH / PULL
HANDLE KIT
A083
JAMB
H900
PAN HEAD SCREW
A781
HEADER
H
F
A716
HEADER / SILL INSERT
HB5195
SETTING BLOCK
C
N
D
VERTICAL
VINYL
GLAZING
Y
HORIZONTAL
VINYL
GLAZING
Z
N
A989
MAGNETIC
DOOR STOP
H900
PAN HEAD
SCREW
Handle
Connector
Screw
Bushing
Plastic Washer
Metal
Slide Magnet
Holder /
Magnet Vinyl
J
K
HKMAGCH
MAGNETIC CATCH
KIT
Style Series Option
Metal
Slide Handle
with
Magnet
Vinyl
HK87
MAGNETIC
PULL HANDLE KIT
M
L
(CUH or MAG)
A716
HEADER / SILL INSERT
D
E
N
H900
PAN HEAD
SCREW
X
B
