84K-GP 3/07
Drip rail may be additionally secured using 8A x 3/8" truss head
screws. When drilling in door panel, make certain drill does not hit
glass. Glass is seated approximately 1/2" into channel.
Clean bottom channel of door before
mounting drip rail. After mounting, do not
remove or reposition. Allow 72 hours
curing time for maximum bond.
From inside shower, measure width of door
panel at bottom. Drip rail (D) should be 1/2"
shorter than door panel width. If longer, cut to
proper length.
Slide vinyl sweep (E) into slot on back of drip
rail. Trim ends even with edges of drip rail.
Smooth cut end of drip cap fin with a file to
remove sharp point.
Drip Rail Sweep
E
D Drip Rail
Contour
INSIDE
OF SHOWER
Measure
K
D
Drip
Rail
INSIDE OF SHOWER Drip Rail Plug
1/2"
1/4" drop from
Opening Side
to Hinge Side
for drainage
Door
Panel
Position drip rail on inside surface of door panel
as described below:
• Side-to-side placement: Edge of drip rail
should be flush with edge of door panel on
hinge side of door.
• Vertical placement: Vinyl sweep should
extend 1/2" below bottom of door panel on
opening side. Angle drip rail so that vinyl sweep
extends 3/4" below bottom of door panel on
hinge side. This will create an 1/4" slope from
opening to hinge side for water drainage.
Mark position. Remove drip rail from door. Peel
protective cover from tape, and press into place.
Insert drip rail plug (K) into groove of drip rail on
opening side of door.
6a Drip Rail
(D)
6b Drip Rail
(D)

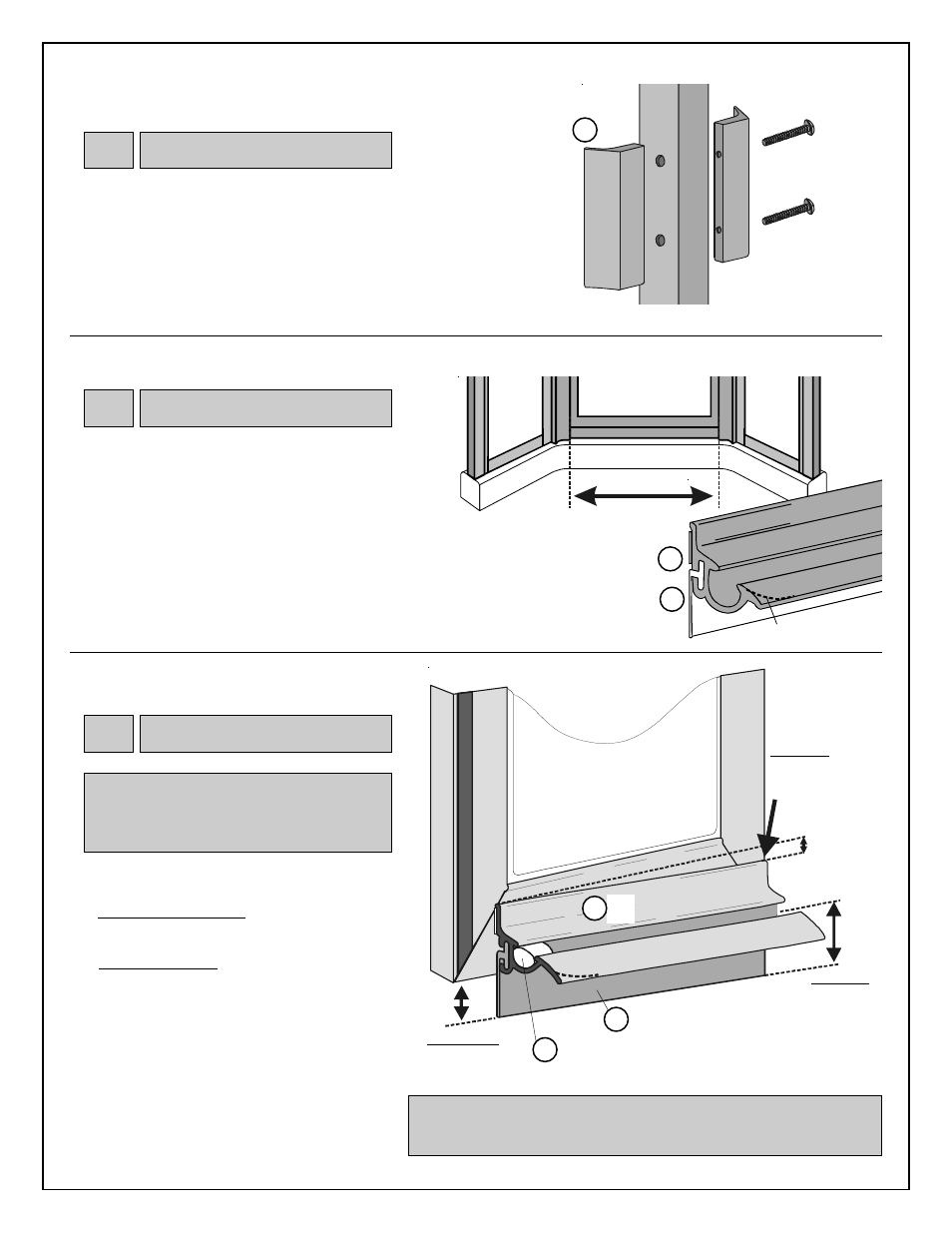

Mount pull handles, from pull handle kit (N),
using 6-32 x 1 1/4" pan head screws provided.
Screw heads should be on the inside of shower.
6-32 x 1 1/4" Pan
Head Screw
Interior Handle
Exterior
Handle
OUTSIDE OF SHOWER
Pull
Handle
Kit
Handle for your door may be pre-installed. If so,
disregard this step and continue installation.
N
5 Pull Handle Kit
(N)
Opening Side
Hinge Side
Drip rail flush
with edge of
Door Panel
F Vinyl Sweep
3/4"
Hinge Side
