of the boot had “FRONT” on the inside of the
rubber. After the boot is installed in the cover
plate and into the stick, install the T-Handle
and the jam nut. Tighten the jam nut when the
handle is properly oriented.
OPERATION
The B&M Megashifter normally func-
tions as a straight gate detent shifter from
Park to Reverse to Neutral to Drive and as a
ratchet shifter from Neutral to all forward
gears. Refer to the following instructions for
proper operation:
STRAIGHT GATE MODE: With the trigger in
the upper position, the shifter functions in the
STRAIGHT GATE mode. The handle travels in
a direct line forward and backward from Park
to Drive. The trigger must be raised up to clear
the stop gates while going through the gear
positions.
RATCHET SHIFT MODE: The RATCHET SHIFT
mode allows firm, positive no-miss upshifts
and downshifts through all positions from 1
(Low gear) to Neutral. To switch from
STRAIGHT GATE to RATCHET operation, first
operate shifter to the Drive position. The
trigger will snap down approximately 3/4".
The shifter is now in the RATCHET mode,
Drive gear position. The shifter will only op-
erate in the RATCHET mode between Neutral
and Low, it will not ratchet to Reverse or Park.
This is done to prevent accidental shifting into
Reverse.
SHIFTING IN THE RATCHET MODE: Move the
3
PERIODIC INSPECTION AND MAINTENANCE OF YOUR SHIFTER IS RECOMMENDED TO ENSURE THAT
THE MECHANISM IS WELL LUBRICATED, FREE FROM DIRT OR RUST AND THAT THE CABLE IS
PROPERLY ADJUSTED. LACK OF MAINTENANCE COULD RESULT IN A FAILURE INCLUDING A FAILURE
OF THE REVERSE LOCKOUT SAFETY FEATURE.
WARNING

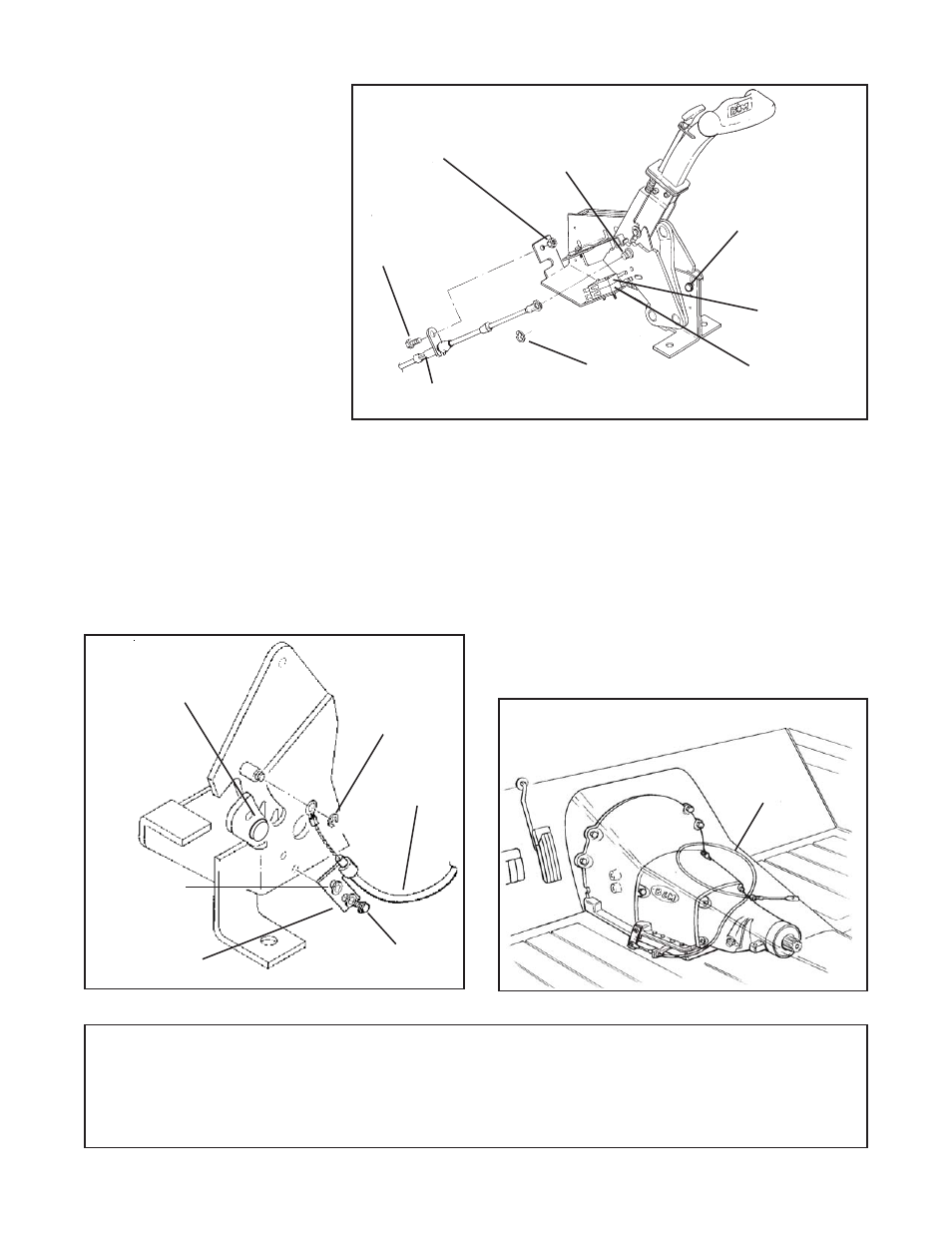

Figure #4
Figure #2
shift handle forward or backward with a
quick firm action until it hits the internal stops,
and allow it to spring return to the center
position. The shifter is now ready for the next
shift.
To switch the shifter from RATCHET mode
back to the STRAIGHT GATE mode, operate
the shifter to the Drive gear position, pull up
firmly on the trigger to engage the STRAIGHT
GATE mode and move the handle forward to
Neutral, Reverse and Park.
REMEMBER: To switch from the STRAIGHT
GATE mode to the RATCHET mode or from
RATCHET mode to STRAIGHT GATE mode
you must be in the Drive gear position. Refer
to the shift indicator gear position.
SPECIAL NOTE: If the instructions for oper-
ating your shifter seem complicated, DO NOT
BECOME ALARMED. You will find that in
actual use the shifter will be extremely easy
to operate after a minimal amount of experi-
ence. Caution: The shifter is an important
controlling mechanism of your vehicle and
can create serious driving hazards when
any part is loose, missing or misadjusted.
After you have installed your shifter we
recommend you review the instructions to
assure a complete and proper installation.
1/4" nut
1/4" lockwasher
1/4" x 1/2"
bolt
E-clip
Cable attaching tab goes on
outside surface of shifter base
Neutral safety
switch
Backup light
switch
Cable pin
Remove this blocker pin
and E-clips with four
speed transmission
Note: Sharp bends will kink and damage
Route cable
Figure #3
Sheet metal
screw (2)
E-clip
Bracket
Indicator
cable
Remove this blocker pin
and E-clips with four
speed transmission
Washer (2)
