B&M 45034 PRECISION SPORT SHIFTER - 08 & UP CORVETTE C6 & Z06 User Manual
Page 9

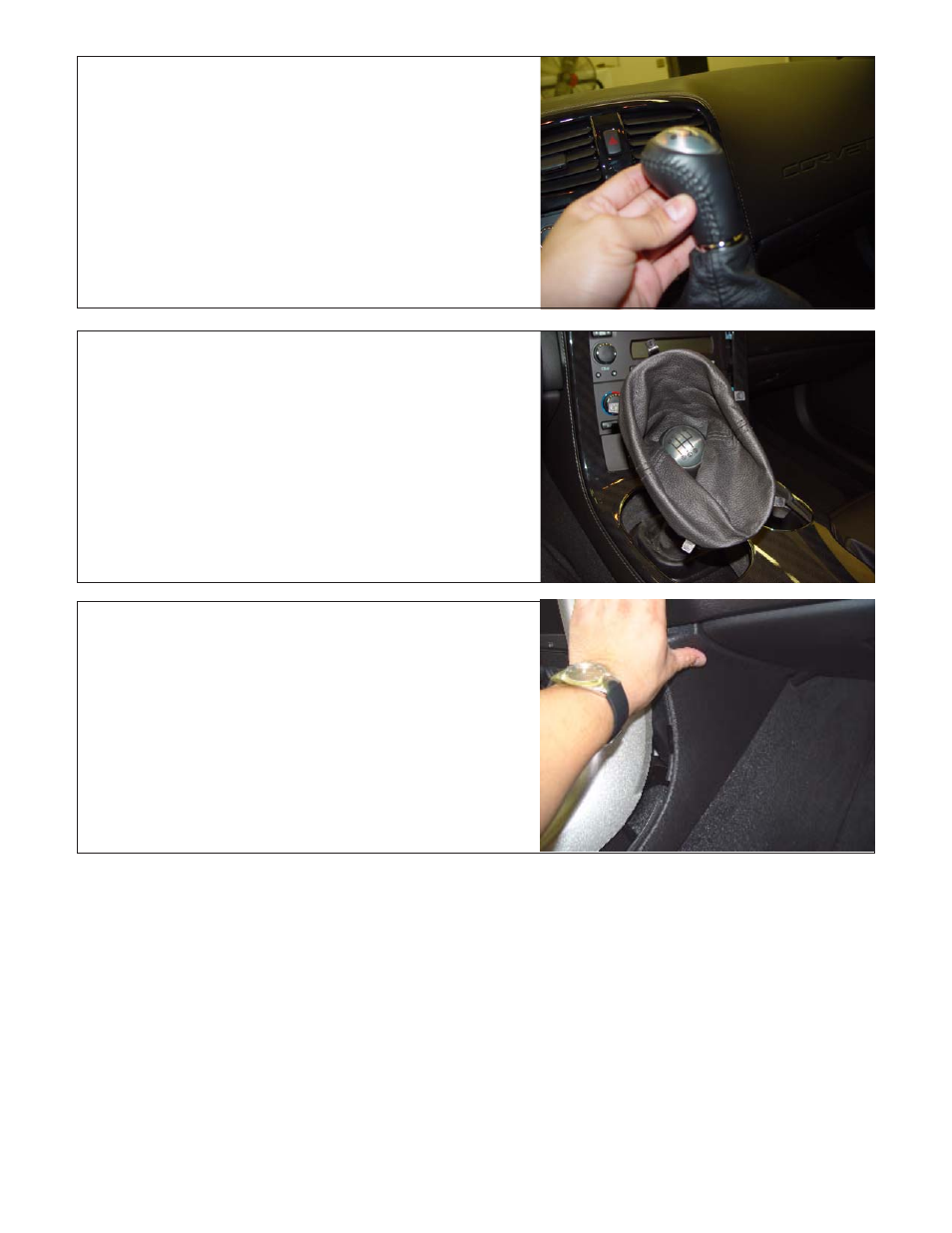

STEP 17. Reinstall all connector wires to center console.
Install knob into leather boot before installing back
into shifter (clip knob back into chrome collar).
Reinstall center console trim plate.
Install knob into shifter.
de Center Console Panel
STEP 18. Reinstall leather boot into center console trim plate.
Unclip knob from chrome collar and screw provided
M6 bolt into shifter, make sure M6 bolt presses firmly
onto knob. Clip chrome collar back into knob.
TOOL: Allen Wrench (4mm)
STEP 19. Reinstall passenger side panel by lift it up until it
snaps into place.
