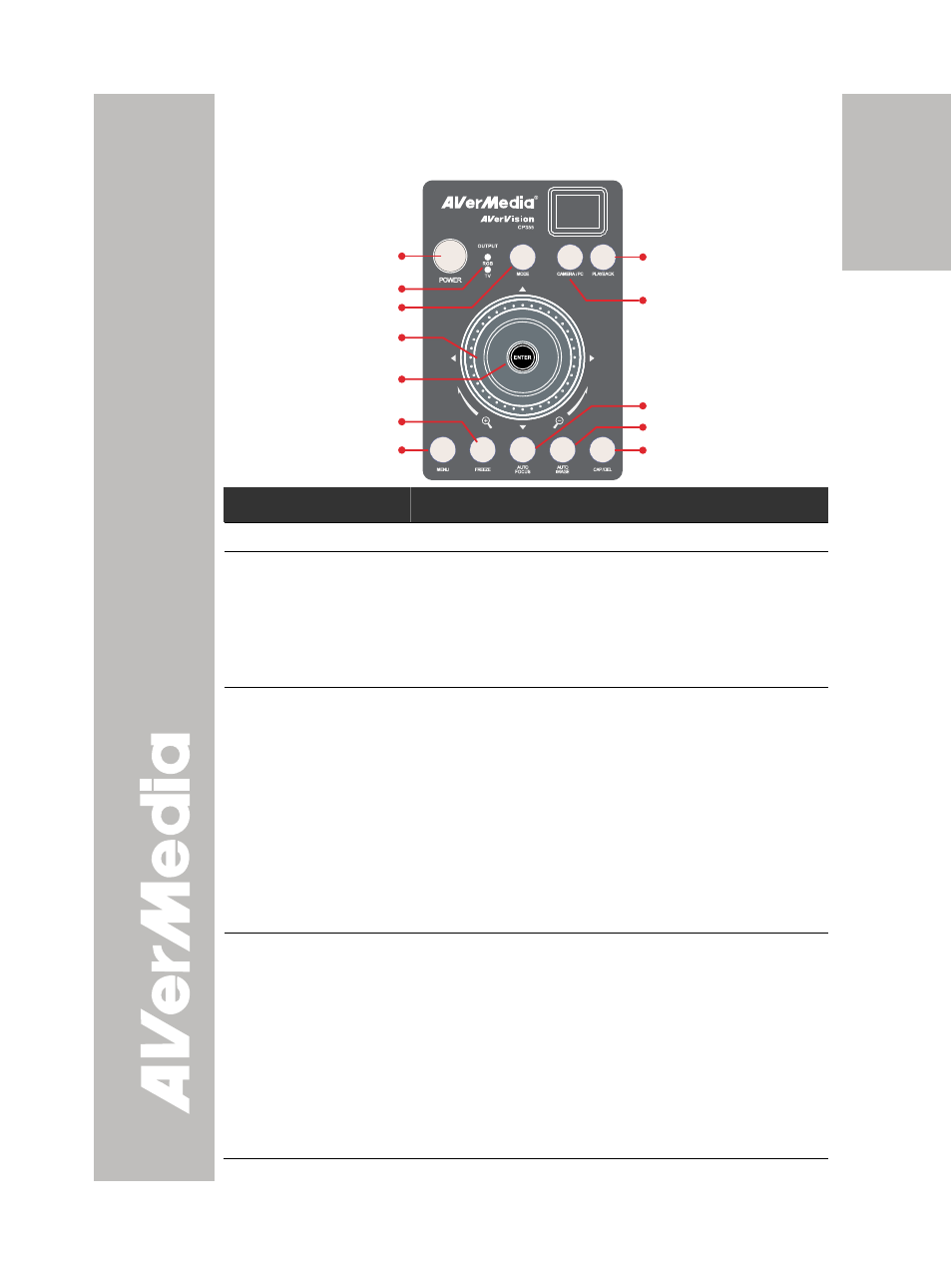

The touch button control panel located on the top side of the CP355
provides quick access to commonly used functions.
(9)
(11)
(1)
(3)
(4)
(5)
(6)
(2)
(8)
(7)
(12)
(10)
Function
Description
(1) POWER
Turn the unit on/off.
(2) Output LED
Indicator
Indicate the setting of the TV to RGB switch to which
port the video signal is being sent out.
- RGB indicates that the video signal is sent out thru
RGB OUTPUT port of CP355.
- TV indicates that the video signal is sent out thru
VIDEO and S-VIDEO OUTPUT port of CP355.
(3) MODE
Toggles between Text, Graphics, and High Frame.
Text - corrects the intensity of the adjacent pixel
making it more uniform producing sharper and clearer
images.
Graphics - adjusts the gradient of the adjacent pixel
making it appears to have a smooth image.
High Frame - increases the frame rate capture and
can visually tracks the motion and react quickly.
Sufficient lighting is required when using this mode.
Wide Angle - extends the area of visibility up to
400mm x 300mm shooting area.
(4) Shuttle Wheel
- Turn the shuttle wheel clockwise to zoom in and
counter-clockwise to zoom out the image in Camera
and Playback mode only.
When it reaches the maximum optical zoom level of
about 5X, you can still continue to AVERZOOM up to
2X and 8X digitally zoom. To return to normal view
(100%), press ENTER.
- Press the shuttle wheel ▲,▼,◄, &► to pan the
image while in zoom in mode, to make a selection
on 16-thumbnail images or move to the next or
previous single full screen preview in Playback
