Nikon ML-3 Modulite Remote Control Set - Manual (Page 3)

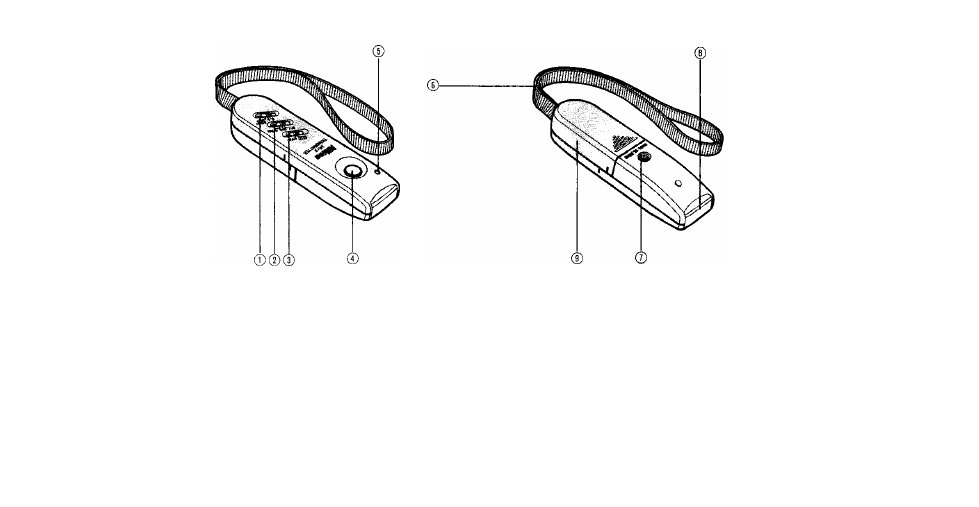

NOMENCUTURE
TRANSMIUER
© Shooting mode selector: S for single-frame
shooting, C for continuous shooting, DELAY/TEST
for delaying shutter release or checking transmitting
conditions (with channel selector set to A. TRIG)
® Channel selector (see page 17)
® Power switch
® Transmission button: Lightly press to transmit the
signal that activates the camera’s exposure meter
and autofocus functions; fully depress to transmit
the signal that releases the shutter
® Monitor light (battery check/transmission indicator
LED): Lights up for a moment when power switch
is set to ON or transmission button is lightly/fully
pressed; blinks during A.TRIG operation or when
battery power becomes weak
® Wrist strap
® Tripod socket
® Transmission head: Do not cover or obstruct
during transmission
® Battery chamber: Accepts two AAA-type batteries
(alkaline-manganese or manganese)
