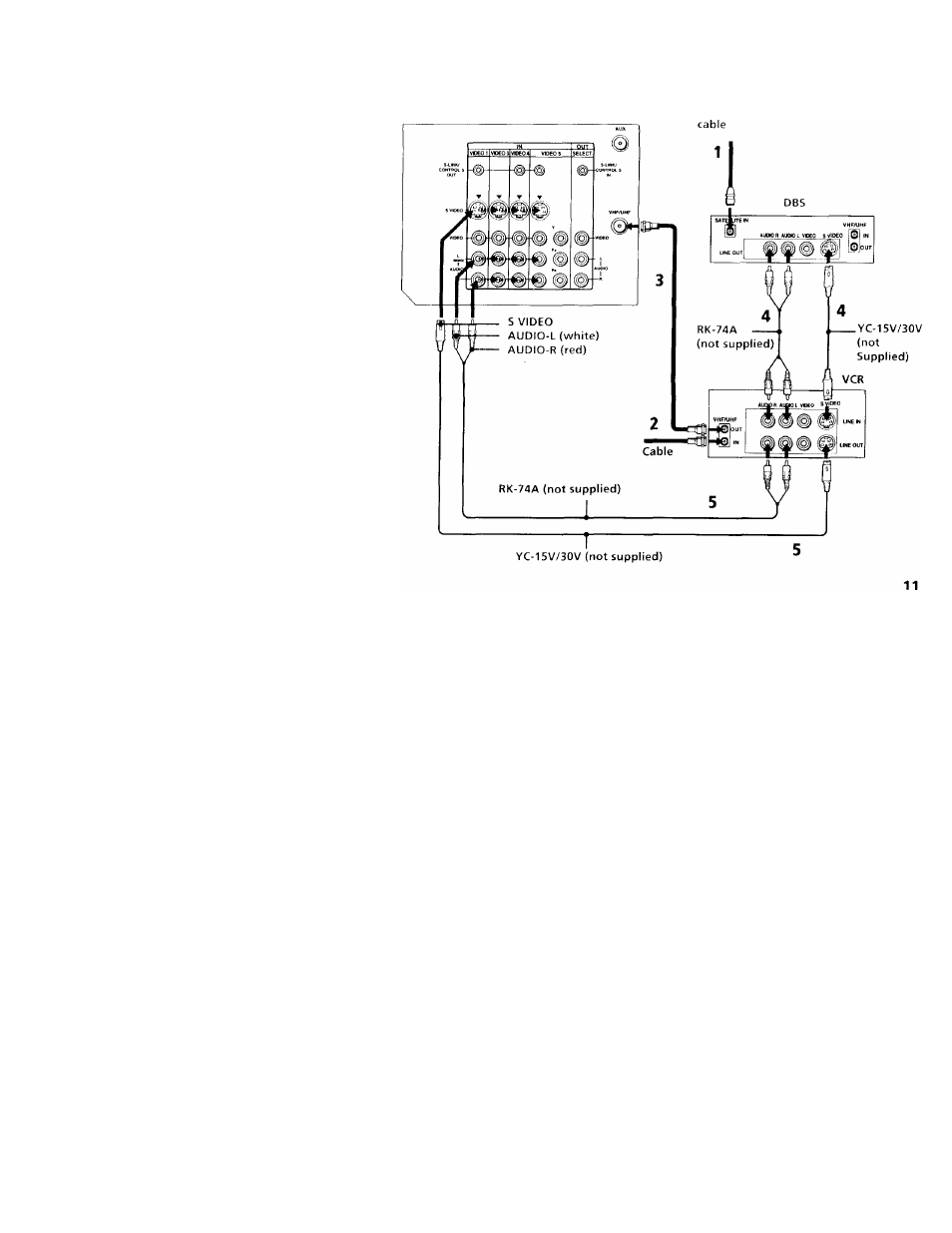

Connecting a DBS (Direct
Broadcast Satellite) receiver and a
VCR
1 Connect the cable from your satellite
antenna to your DBS receiver.
2 Attach the coaxial connector from your
cable or antemaa to VHP / UHF IN on your
VCR.
3 Using a coaxial connector, connect VHP /
UHP OUT on your VCR to VHP/UHF on
your projection TV.
4 Using AUDIO and S VIDEO connectors,
connect AUDIO OUT and S VIDEO on
your DBS receiver to AUDIO IN and S
VIDEO on your VCR.
5 Using AUDIO and S VIDEO connectors,
connect AUDIO OUT and S VIDEO on
your VCR to AUDIO IN and S VIDEO on
your projection TV (White-AUDIO Left,
Red-AUDIO Right).
Notes:
• To view input from the DBS or VCR,
select the video input which your DBS
receiver or VCR is connected to by
pressing TV / VIDEO on the remote
control.
• If your VCR is not equipped with S
VIDEO, connect VIDEO OUT on your
VCR to VIDEO IN on your projection TV
using AUDIO/VIDEO connectors.
(Rear of projection TV)
Disconnect all power sources before making any connections.
Satellite antenna
