Installing and Connecting the Proie’:
Connecting a VCR and projection
TV with a cable box
1 Connect the single (input) jack ot the
Splitter to your incoming cable
connection, and connect the other two
(output) jacks (using coaxial cable) to IN
on your cable box and VHF/UHF on your
projection TV.
2 Using a coaxial connector, connect OUT
on your cable box to IN on your VCR.
3 Using AUDIO/VIDEO connectors,
connect AUDIO and VIDEO OUT on your
VCR to AUDIO and VIDEO IN on your
projection TV (Yellow-VIDEO, White-
AUDIO Left, Red-AUDIO Right).
Note:
• To view scrambled channels through your
cable box, select the video input which
your cable box is connected to by pressing
TV/VIDEO.
tion TV (continued)
Disconnect all power sources before making any connections.

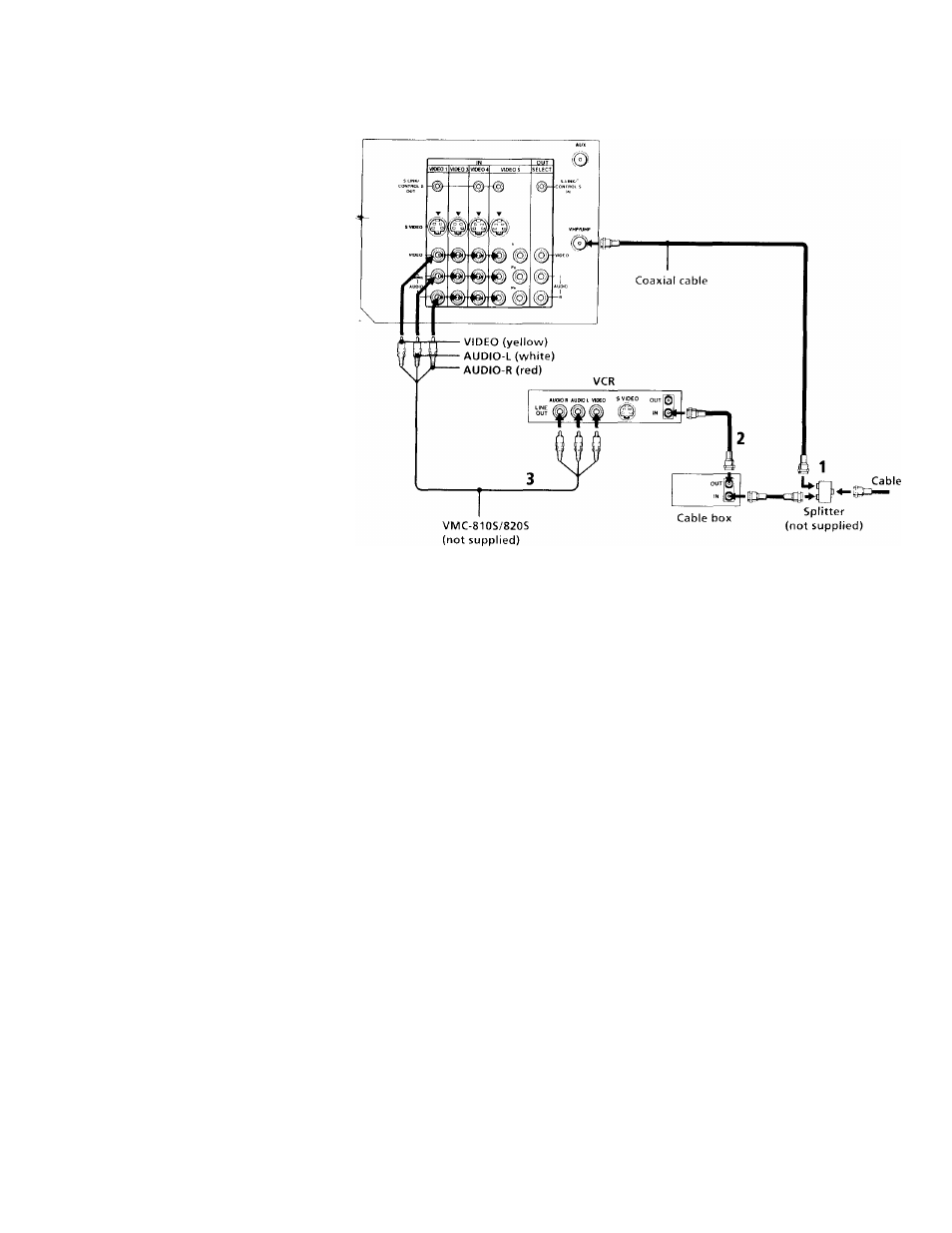

(Rear of projection TV)
