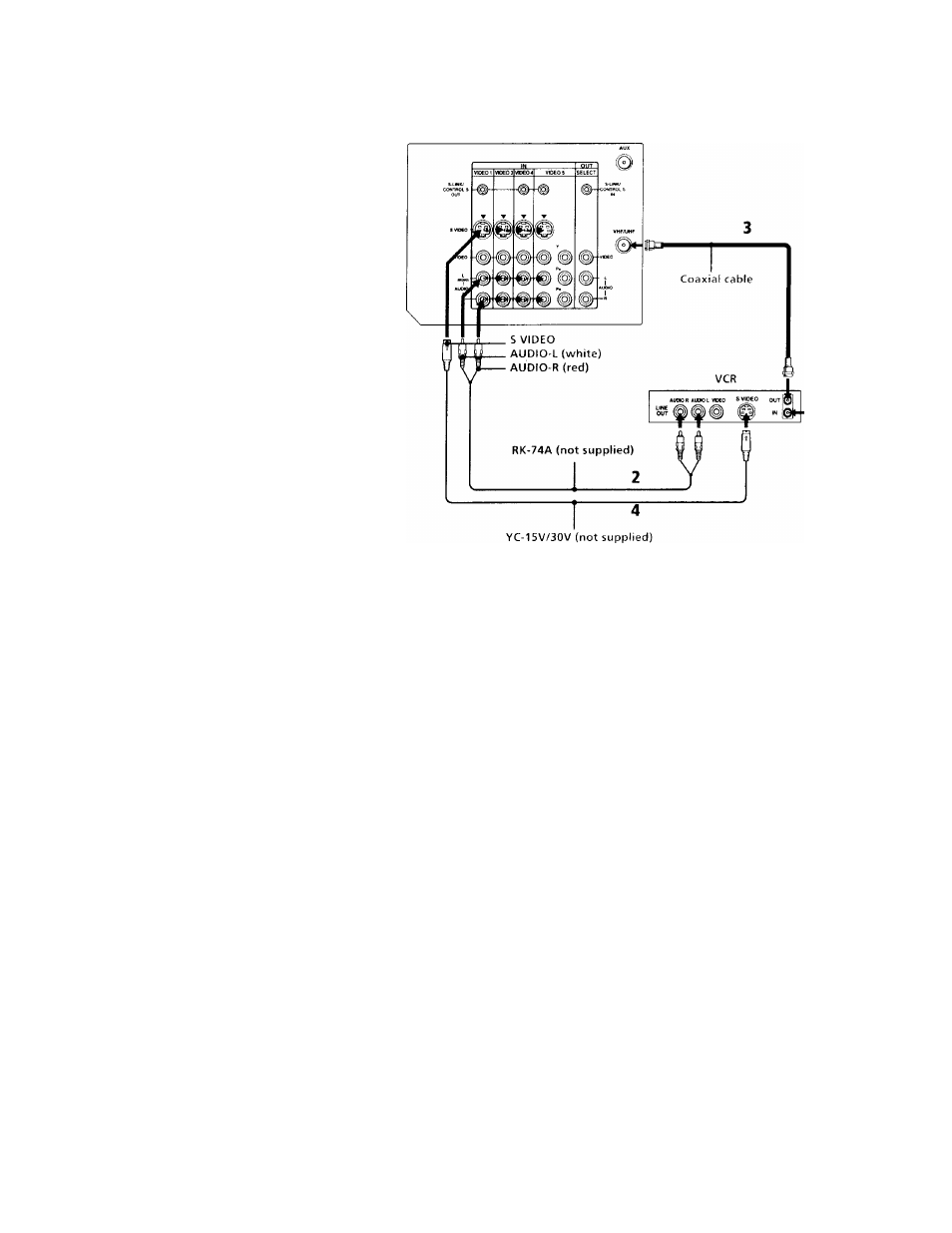

Connecting to an S Video equipped
VCR
1 Attach the coaxial connector from your
cable or antenna to IN on your VCR.
2 Using AUDIO connectors, connect AUDIO
OUT on your VCR to AUDIO IN on your
projection TV (White-AUDIO Left, Red-
AUDIO Right).
3 Using a coaxial connector, connect OUT
on your VCR to VHF/UHF on your
projection TV.
4 Using an S VIDEO connector, connect
S VIDEO on your VCR to S VIDEO on
your projection TV.
Note:
• If you are connecting a monaural VCR,
connect only the single audio output to
the left (MONO) input on your projection
TV.
Disconnect all power sources before making any connections.
(Rear of projection TV)
Cable
