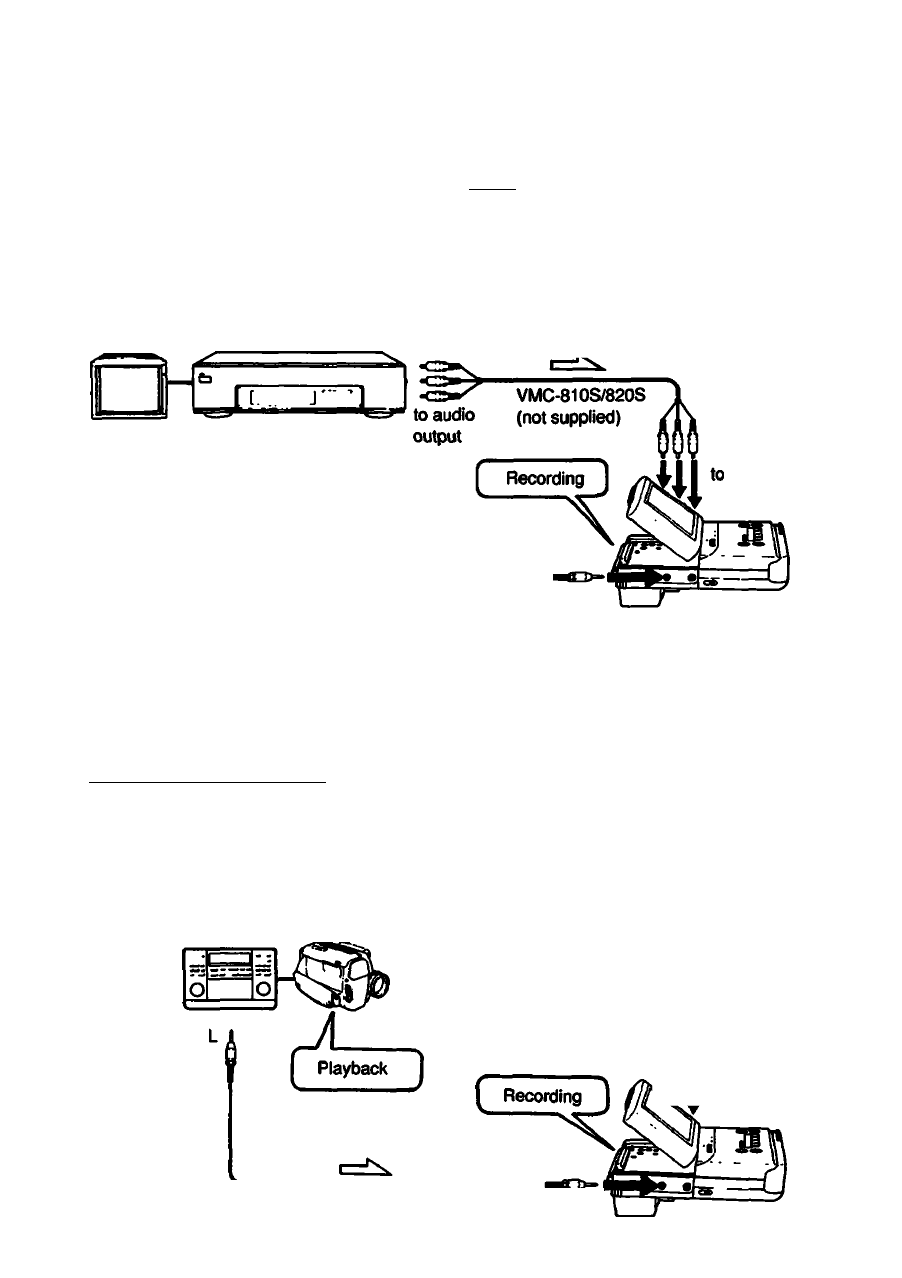

To edit from the VCR equipped with the CONTROL L output
Connect the CONTROL L input jack on this unit and the CONTROL L output jack on the
other equipment.
Playback/pause on the other VCR and recotding/pause on this unit can be operated
simultaneously.
I Signal flow
Monitor VCR
to video output
to CONTROL
V____ ,
["ptayback J
RK-G69 (not supplied) ^ e REMOTE
to AUDIO R
(red)
to AUDIO L
(white)
VIDEO
(yellow)
GV-500
About tt (LANC) tt stands for Local Application Control Bus System. The tt control jack is
used for controlling the tape transport of video equipment and peripherals
connected to it. This jack has the same function as the connectors indicated
as CONTROL L or REMOTE.
To edit with the edlMtifl controller
By connecting the editing controller, the recorder and player can be operated easily with
the controller.
Editing sigfgQ camera
controller
. .. ^
to audio output
: Signal Row
to CONTROL
VMC-810S/820S
to video output (not supplied)
to AUDIO R
(red)
to AUDIO L
(white)
to VIDEO
^ M (yellow)
RK-G69 (not supplied) jq REMOTE
GV-500
