Connecting
Other Equipment

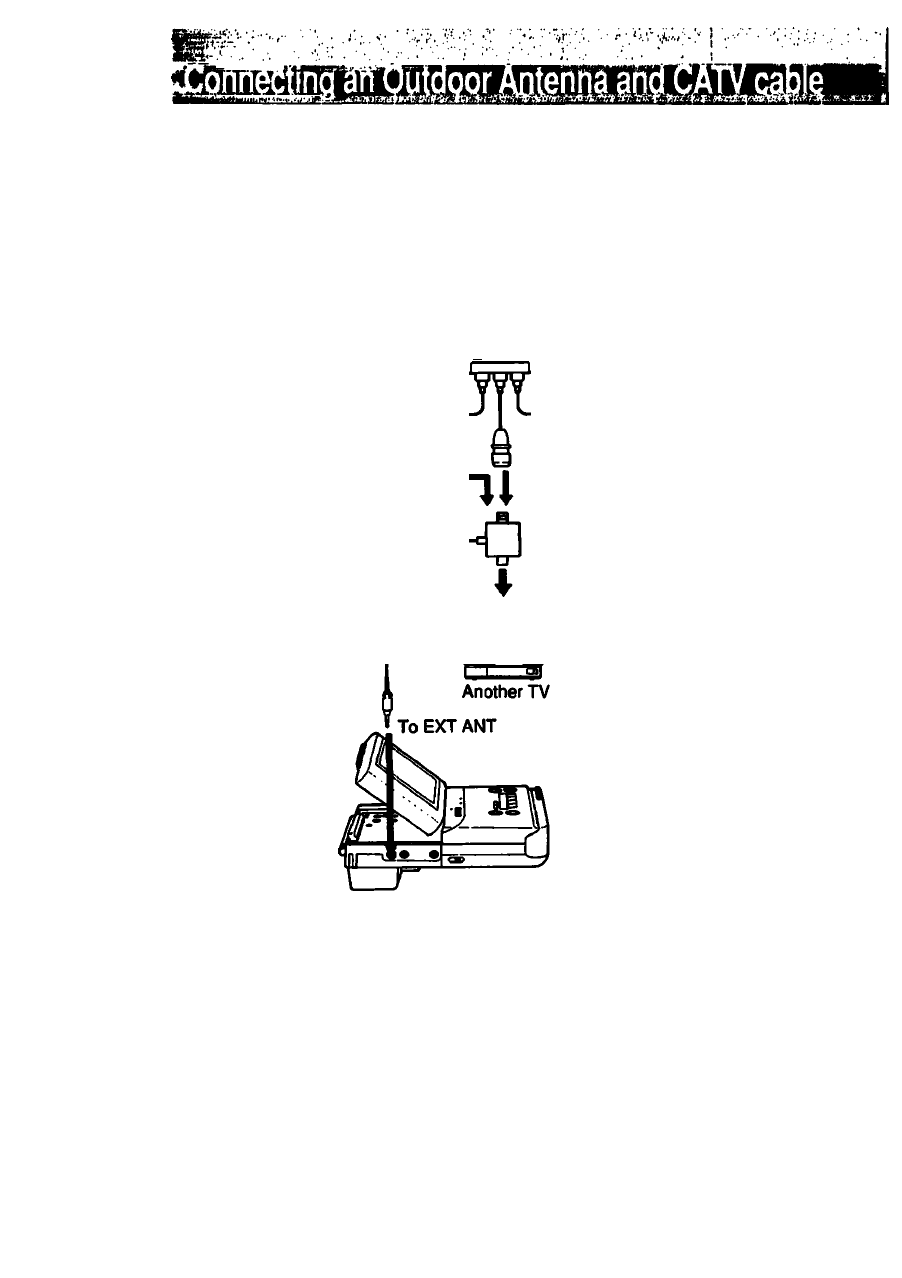

if you cannot obtain satisfactory reception with the teiescopic antenna, or when reocrding TV

programs, use an outdoor antenna. For viewing CATV channels, connect the CATV cable.

CATV cable-

UHF antenna

(Channel 14-69)

Pay

cable

TV decoder

Miniplug

VHF

antenna

(Channel 2-13)

Mixer

I I

Signai spiitter

(supplied)

To antenna terminai

GV-500

For connection, you can aiso use the antenna connector EAC-40, the signal splitter EAC-45, the

antenna cord CCD-6M, and CCD-2 (not supplied.)

Notes

• Before connecting the antennas, turn off the unit.

• Make connections firmiy. A ioose connection may cause a distorted picture.

• When using the unit in a car, use the optional VCA-3W or VCA-4E car antenna, etc. For

details, refer to the instruction manual of the car antenna.
