Attaching the external
antenna connector
when using a 300-ohm twin lead cable
for VHF/UHF antenna, use the EAC-32
antenna connector (not supplied) to
connect the antenna to the VCR.
300-ohm twin
lead cable
EAC-32 Antenna
connector (not
supplied)

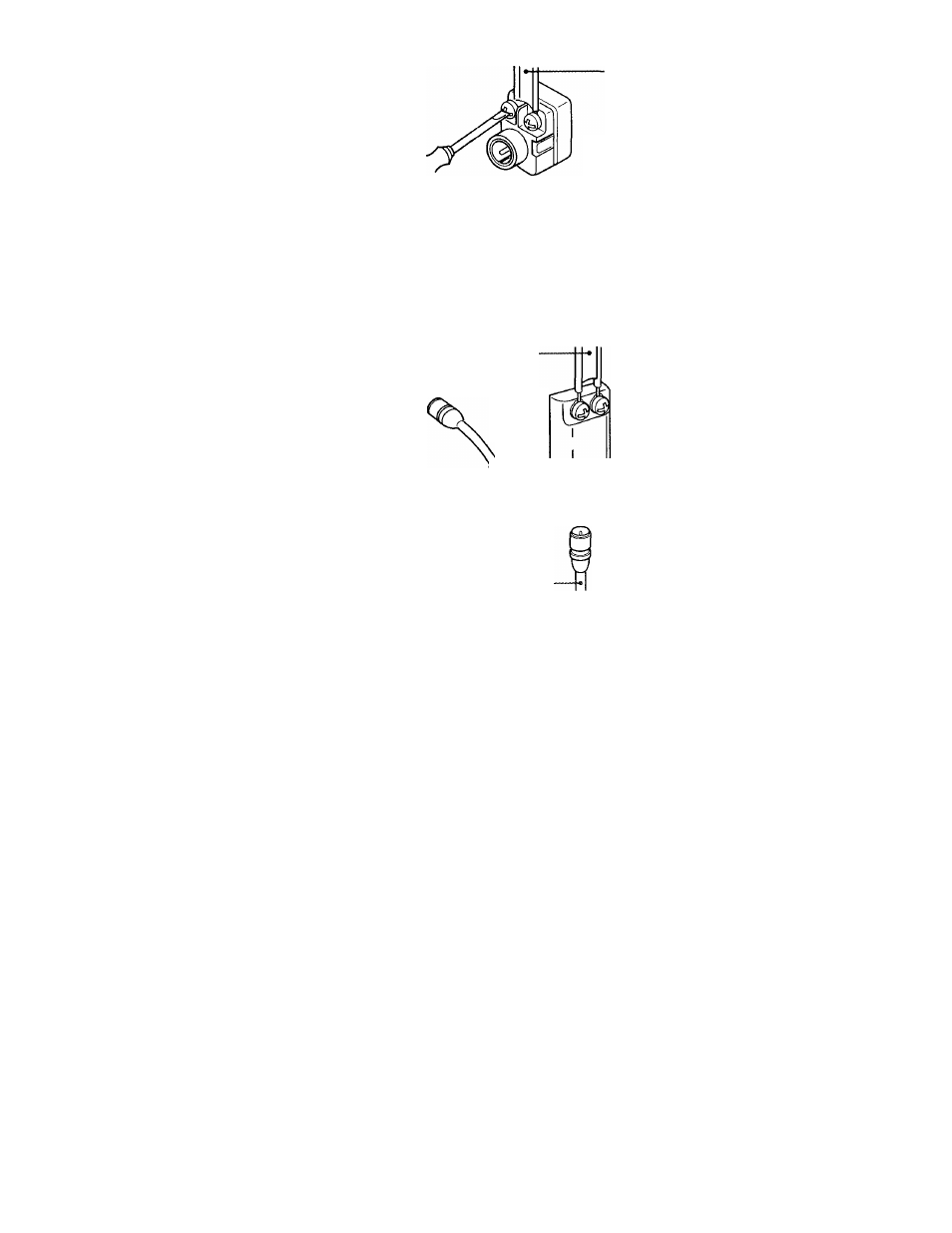

1
Loosen the screws on the antenna connector.
2
Wind the twin leads around the screws on the antenna connector.
3
Retighten the screws.
Attaching a UHFAAHF band
mixer
when using both 75-ohm coaxial cable
and 300-ohm twin lead cable for VFIF /
UFIF antenna, use the E AC-66 UHF/
VFIF band separator/mixer (not
supplied) to connect the antenna to the
VCR.
300-ohm twin
lead cable
EAC-66
UHFA/HF
band
separator/
mixer (not
^ supplied)
75-ohm coaxial
cable
1
Loosen the screws on the mixer.
2
Wind the twin leads around the screws on the mixer.
3
Retighten the screws.
4
Connect the 75-ohm coaxial cable to the mixer.
Additional Information 89
