Antenna hookup

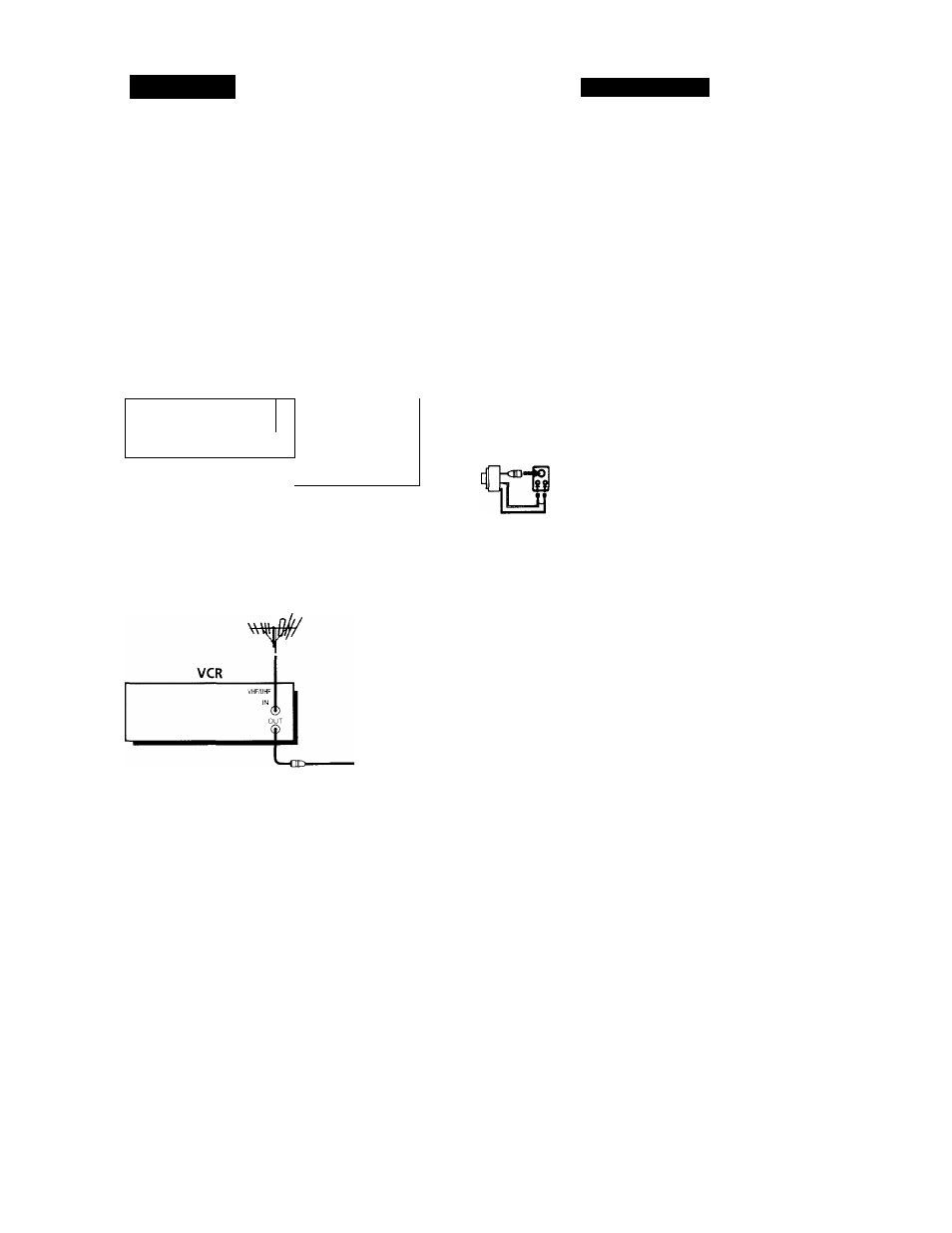

Make the following connections if you're using an antenna (if you don't
have cable TV).
□ Use this hookup if you're using:
• VHF/UHF antenna (you get channels 2-13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
V
VCR
VHFAJHF
IN d
>
OUT
c
or
Rear of TV
VHF/UHF
--e A Match the type of
connector on your
VHF TV: A, B, or C.
B
or
UHF
VHF
UHF
Q] Use this hookup if you're using a VHF-only antenna (you get
channels 2-13 only) of TV
dO*»#* - - ■
or
VHF/UHF
-■—e A
VHF
UHF
VHF
---- § •=
UHF
Match the type of
connector on your
TV: A, B, or C.
For connector types
B and C, no UHF
connection is
required.
If you cannot connect your antenna cable to the VCR directly
If your antenna cable is a flat cable {300-ohm twin lead cable), attach an external
antenna connector (not supplied) so you can connect the cable to the VHF/UHF IN
connector. If you have separate cables for VHF and UHF antennas, you should use a
U/V band mixer (not supplied). For details, see page 89.
