To an S video equipped VCR
If your VCR has an S VIDEO output connector, make
the following connections.
Whenever you connect the cable to the S VIDEO input
connector, the projection TV automatically receives S
video signals.

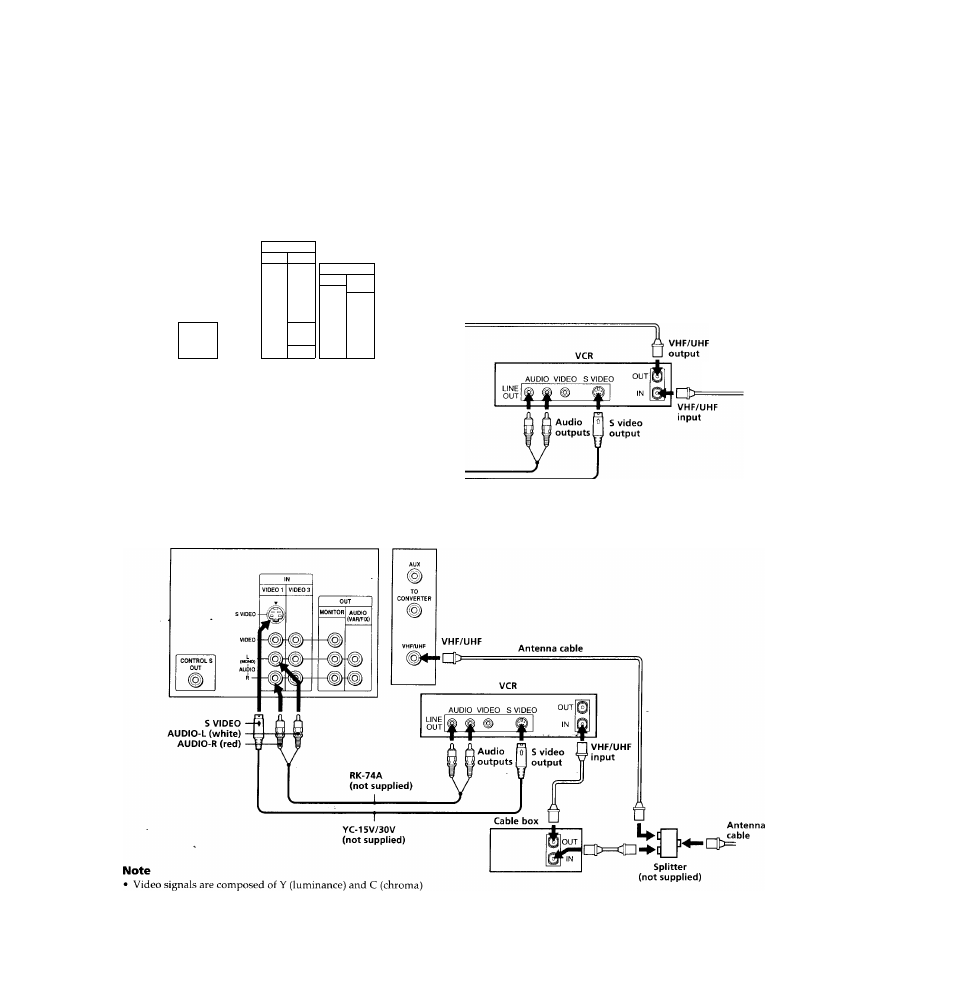

Without a cable box
(Rear of projection TV)
IN
VIDEO 1 VIDEO 3
S VIDEO
VIDEO
CONTROL S
(MONO)
OUT
AUDIO
OUT
MONITOR AUDIO
(VAR/FIX)
#
TO
CONVERTER
VHF/UHF
é
VHF/UHF
Antenna cable
S VIDEO-
AUDIO-L (white) -
AUDIO-R (red) -
Antenna cable
RK-74A
(not supplied)
With a cable box
(Rear of projection TV) -
YC-15V/30V
(not supplied)
signals. The S connection sends the two signals separately
preventing degradation, and gives better picture quality
compared to conventional connections.
