step 2: Hookup
Connecting an antenna/cable TV
system without a VCR
To cable or antenna
Cable
(Rear of projection TV)
VHF/UHF
Although you can use either an indoor or outdoor
antenna with your projection TV, we recommend that
you connect an outdoor antenna or a cable TV system
to get better picture quality.
Connecting an antenna
Connect your antenna cable to the VHP / UHF antenna
terminal. If you cannot connect your antenna cable
directly to the terminal, follow one of the instructions
below depending on your cable type.
• VHF only
or
• VHF/UHF
or
• Cable
75-ohm coaxial cable
(Rear of projection TV)
VHF/UHF
B

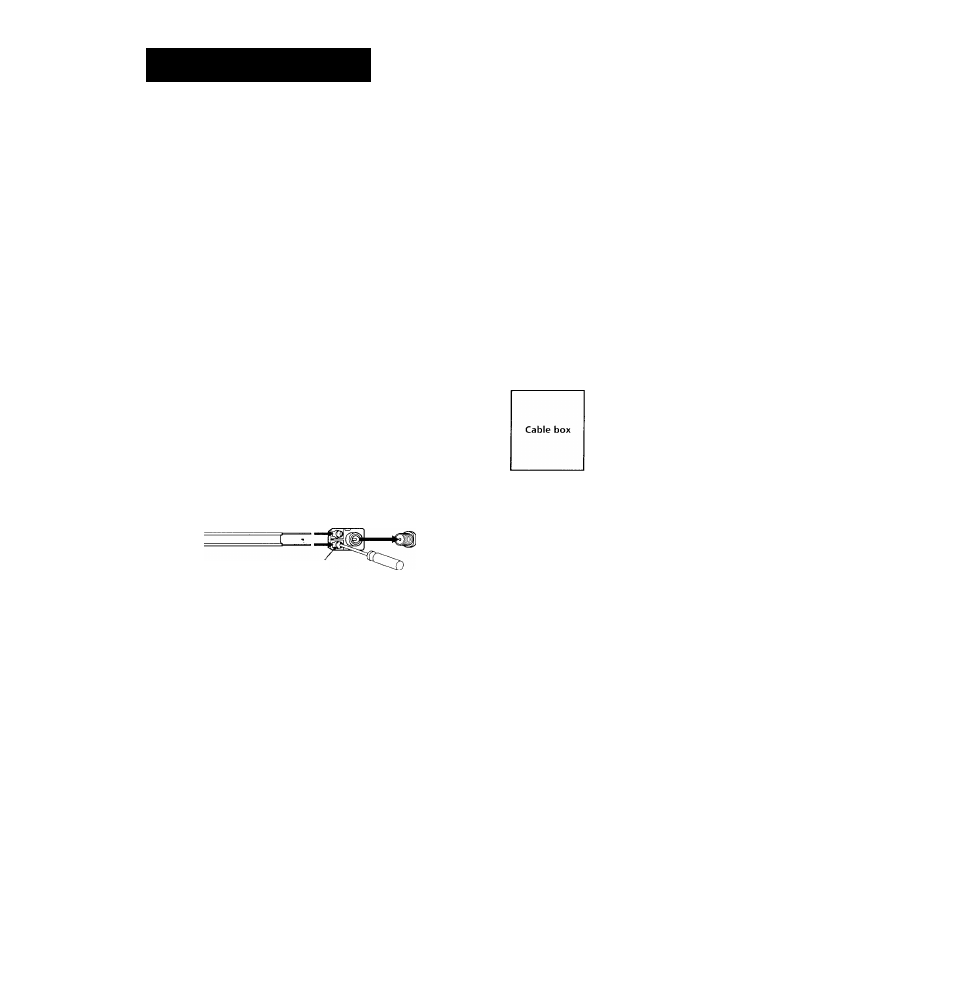

• VHF only 300-ohm twin lead cable
or
• UHF only
or
• VHF/UHF
Antenna connector
(Rear of projection TV)
VHF/UHF
75-ohm coaxial cable
• VHF
and
• UHF
(Rear of projection TV)
VHF/UHF
EAC-66 U/V mixer
(not supplied)
300-ohm twin lead cable
Notes
• Most VHF/UHF combination antennas have a signal splitter.
Remove the splitter before attaching the appropriate connector.
• If you use the U/V mixer, snow and noise may appear in the
picture when viewing cable TV channels over 37.
To cable box
If your cable company requires you to connect a cable
box, make the connection as follows:
(Rear of projection TV)
VHF/UHF
Cable
IN
OUT
Cable box
To cable box and cable
(Rear of projection TV)
AUX
TO
CONVERTER
75-ohm coaxial
cable (not supplied)
CATV cable
VHF/UHF
Pay cable TV systems use scrambled or encoded signals
requiring a cable box* in addition to the normal cable
connection.
* The cable box will be supplied by the cable company.
Note
• You cannot watch the signal through an AUX connector as a
window picture.
To cable and antenna
CATV cable
(Rear of projection TV)
AUX
Antenna cable
TO
CONVERTER
VHF/UHF
Note
• Do not connect anything to the TO CONVERTER connector in
this case.
